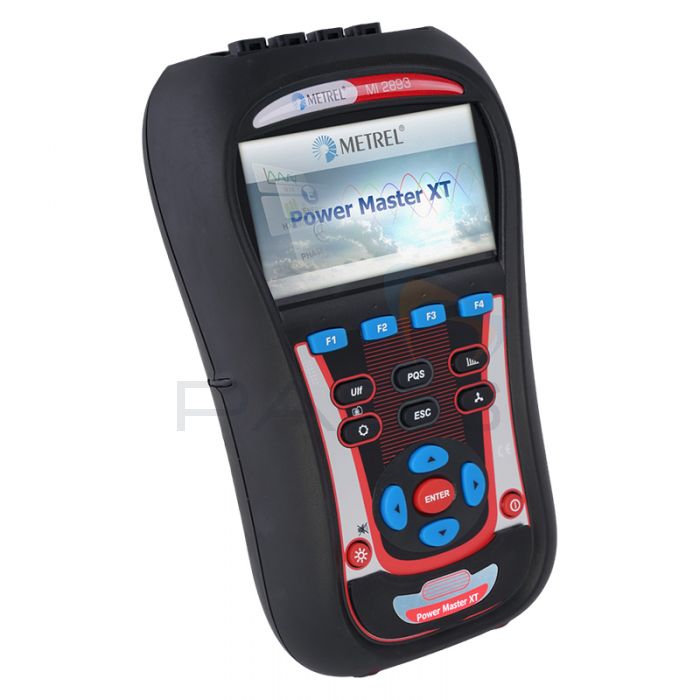

The Metrel MI2893 Power Master XT Power Analyser is a hand-held, three-phase power quality analyser with eight voltage and current channels. There are three kits available, Standard, Euro and Advanced; for further information regarding the items included in each option, please see the ‘What’s Included?’ section.
Each of the Metrel MI2893 Power Master XT Power Analyser’s four voltage channels has a wide measurement range, whilst the four current channels support automatic clamp recognition and on-instrument range selection. The Metrel MI2893 Power Master XT Power Analyser also supports automatic smart clamp detection and smart clamp range selection as well as current clamp auto range selection.
The Metrel MI2893 Power Master XT Power Analyser can be used to troubleshoot power quality problems in three-phase and single-phase power distribution systems. It can be used to detect harmonics, phasors, waveforms and transients. The Metrel MI2893 Power Master XT Power Analyser features the following test and measurement capabilities:
The Metrel MI2893 Power Master XT Power Analyser’s power measurements for active, non-active, fundamental, harmonic and load unbalance are compliant with IEEE 1459, while power measurements for vector or arithmetic are compliant with the classic method. Additionally, the Metrel MI2893 Power Master XT Power Analyser will conduct power quality analysis according to EN 50160, IEEE 519 and can be used to capture and record power supply events such as shutdowns, interruptions, swells and dips.
Furthermore, the Metrel MI2893 Power Master XT Power Analyser can record and monitor inrush currents, as well as display, snapshot and record waveform/ inrush. It is also able to accommodate and record up to seven adjustable alarms.
The Metrel MI2893 Power Master XT Power Analyser’s ability to support recording also makes it suitable for long-term monitoring of single- and three-phase power distribution systems; the general, waveform and transient recorders function simultaneously.
Data is displayed on the Metrel MI2893 Power Master XT Power Analyser’s large, easy-to-read, graphical display. It can be saved to the 8GB microSD memory card.
Using the supplied PowerView3 PC Software the operator can download data from the microSD card to a computer for analysis and organisation into reports. The PowerView3 Software includes predefined EN 50160 power quality test reports. In addition to this, it can perform data merges, filter recorded results and transfer measurements to other applications such as MS Excel and MS Word. The PowerView3 Software also includes a tool for repairing downloaded results thereby preventing the loss of data during transmission.
To enable easy and efficient use, the Metrel MI2893 Power Master XT Power Analyser features an intuitive main menu with large icons, as well as Quick Set buttons. More practically, it is equipped with colour-coded input terminals and terminal labels (specific to the user’s region).
Finally, the Metrel MI2893 Power Master XT Power Analyser supports remote communication via Ethernet.
The Metrel MI2893 Power Master XT Power Analyser is a high-performance, handheld, three-phase PQA.
| Electrical Power Systems | Power Plants |
| Photovoltaic | |
| Distribution | |
| Buildings Facility | Public areas Safety / Quality |
| Voltage Quality / Power Loads | |
| Industrial Systems | LV Installations Safety / Quality |
| UPS Systems testing | |
| Switchboards / Controlgears | |
| Machines / Power Loads | |
| Electrical Equipment / Appliances | |
| Maintenance / Troubleshooting | |
| 3-phase system testing | |
| High-level industrial testing | |
| Mid-level industrial testing | |
| Special Installations/ Locations | Construction Sites |
| Railway Systems | |
| Ships / Boats / Marina Places | |
| Fire Brigade Vehicles | |
| Military / Police Vehicles | |
| Mobile LV Generator Units | |
| Medical Sites / Surgery Rooms | |
| Laboratory use | |
| Service / Repair / Rental Offices | |
| Electric motors testing |
Metrel MI2893 Power Master XT Power Analyser Standard Kit
Metrel MI2893 Power Master XT Power Analyser Euro Kit
Metrel MI2893 Power Master XT Power Analyser Advanced Kit
| MI2893ST - Standard | MI2893EU - Euro | MI2893AD - Advanced | |
|
Metrel MI2893 Power Master XT Power Analyser |
X | X | X |
|
4x A1227 1-Phase Flexible Current Clamps 3000/ 300/ 30A |
X | ||
|
4x A1502 1-Phase Flexible Current Clamps 3000/ 300/ 30A |
X | ||
|
5x Crocodile Clips (Brown, Black, Grey, Green and Blue) |
X | X | X |
|
5x Voltage Measurement Leads (Brown, Black, Grey, Green and Blue) |
X | X | X |
|
Labels for Colour Coding |
X | X | X |
|
Temperature Probe |
X | X | X |
| MicroSD Memory Card 8.0GB | X | X | X |
|
MicroSD Card Reader |
X | X | X |
|
PowerView3 PC Software |
X | X | X |
|
RS232, USB and Ethernet Patch Cable |
X | X | X |
|
Power Supply Adapter |
X | X | X |
|
6x 1.2V NiMH Rechargeable Batteries |
X | X | X |
|
Professional Protective Waterproof Case (A1685) |
X | X | X |
|
Instruction Manual |
X | X | X |
|
Calibration Certificate |
X | X | X |
| Voltage inputs | AC+DC | |
| Number of inputs | 5 | |
| Nominal voltage range | ||
| Three-phase connection | Phase (L-N): 50 … 1000 V RMS | |
| Line (L-L): 87 … 1730 V | ||
| Single-phase connection | Phase (L-N): 50 … 500 V RMS | |
| Measuring range | ||
| Three-phase connection | 10 % … 150 % of nominal voltage | |
| Single-phase connection | 10 % … 110 % of nominal voltage | |
| Max. transient peak voltage | ±6 kV | |
| Accuracy | IEC 61000-4-30 Class A, ±0.1% of nominal voltage | |
| Sampling rate | 7 kSamples per second @ 50/60 Hz, synchronization with main frequency | |
| 1.7 kSamples per second @ VFD (5 Hz - 110 Hz) | ||
| 12.2 kSamples per second @ 400 Hz | ||
| Mains frequency range | 42,5 ... 69,0 Hz ±10 mHz | |
| 5 ... 110 Hz ± 10 mHz (VFD) | ||
| 335,0 ... 465,0 Hz ± 100 mHz | ||
| Current inputs | AC+DC | |
| Number of inputs | 4 | |
| Measuring range (with A 1227/A 1502 flex clamps) |
3 ... 6000 ARMS ±1.5% of m.v. | |
| Measuring range (with A 1281 iron clamps) |
50 m ... 1200 ARMS ±0.5% of m.v. | |
| Functions | Measuring range | Accuracy |
| Power (P, Q, S, cos φ, PF…) | Depends on voltage and selected clamps | IEC 61557-12 Class 1 |
| Energy | Depends on voltage and selected clamps | Active: IEC 62053-21 Class 1 |
| Reactive: IEC 62053-23 Class 2 | ||
| Harmonics (DC ... 50th) @50/60 Hz | 0 ... 20% of nom. voltage | IEC 61000-4-7 Class 1 |
| Harmonics (DC ... 13th) @400 Hz | ||
| Harmonics (DC ... 20th) @VFD (5 - 16 Hz) | ||
| Harmonics (DC ... 13th) @VFD (16 - 33 Hz) | ||
| Harmonics (DC ... 5th) @VFD (33 - 110 Hz) | ||
| Interharmonics (1 ... 50th) @ 50/60 Hz | 0 ... 20% of nom. voltage | IEC 61000-4-7 Class 1 |
| Interharmonics (1 ... 20th) @VFD (5 - 16 Hz) | ||
| Interharmonics (1 ... 13th) @VFD (16 - 33 Hz) | ||
| Interharmonics (1 ... 5th) @VFD (33 - 110 Hz) | ||
| Flicker | 0.2...10 | IEC 61000-4-15 Class F3 |
| Mains signalling | 0 ... 15% of nom. voltage | IEC 61000-4-30 Class A |
| Unbalance | Voltage: 0 ... 5% | |
| Current: 0 ... 20% | ||
| Temperature | -10 ... 85 °C | ±0.5 °C |
| Dips, Swell | 10 ... 150% of nom. voltage | ±0.2 % of nominal voltage |
| ±1 cycle | ||
| Interrupts | 0 ÷ 10% of nom. voltage | ±1 cycle |
| Recorders | ||
| Memory | 8GB microSD, up to 32GB supported | |
| General recorder | ||
| Integration period | 1s … 2h | |
| Recorded signals | > 1000 (voltages, currents, harmonics, power…) Minimal, maximal, average and average ON value per interval, including |
|
| - Voltage events (dip, swell, interrupt) | ||
| - Custom alarms (up to 7 programmable alarms) | ||
| - Signalling (up to two selectable frequencies) | ||
| - Transients | ||
| - Inrush | ||
| Duration | > 1 year (depends on size of SD card at 10 min registration period) | |
| Waveform recorder | ||
| Duration | Up to 60 seconds duration and 30 seconds pretrigger of voltage and current waveform |
|
| Up to 1500 records | ||
| Trigger | Manual, Voltage Events, Custom Alarms, Voltage or current level (inrush), Time interval |
|
| Transient recorder | ||
| Sampling rate | 1 MSamples/sec; simultaneously on all 8 channels | |
| Duration | Up to 5 cycles of voltage and current waveforms | |
| Trigger | Transient selection measurement between L-N/L-GND | |
| Envelope and level trigger simultaneously | ||
| Transient recorder runs simultaneously with general and waveform recorder |
||
| Set & go transient setup; predefined setup (low and high level) for current and voltage trigger |
||
| General | ||
| Display | 4.3 inch color TFT (480 x 272) | |
| Communication | USB, Ethernet | |
| Time synchronisation | GPS receiver (A 1355) | |
| Power supply | With power supply adapter or 6 x NiMh rechargable batteries, size AA | |
| Overvoltage category | CAT IV / 600 V For three-phase connection CAT III 1000 V |
|
| Weight | 1.1 kg | |
| Dimensions | 230 x 140 x 80 mm | |
