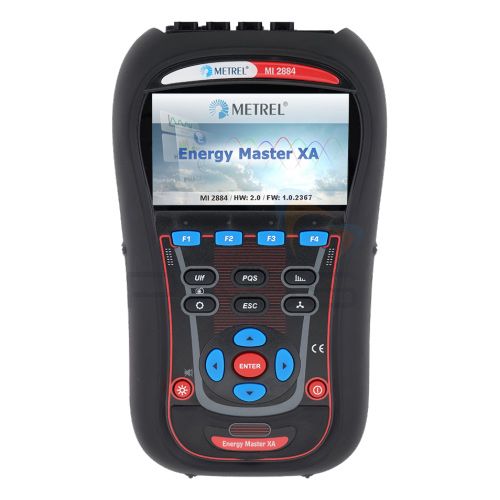

The Metrel MI2884 Energy Master XA Power Quality Analyser is a handheld three-phase PQA optimised for detection and long-term logging of harmonics, phasors and waveform anomalies. It is also designed to enable post-processing of recorded data.
The Metrel MI2884 Energy Master XA Power Quality Analyser can be used to ascertain the energy-efficiency of electrical installations and identify ways and places where energy consumption, and therefore energy costs, may be reduced. To this end, the Metrel MI2884 Energy Master XA Power Quality Analyser includes the following measurement functions:
Additionally, the Metrel MI2884 Energy Master XA Power Quality Analyser supports recording for up to seven adjustable alarms.
The Metrel MI2884 Energy Master XA Power Quality Analyser’s three voltage channels have a wide measurement range that spans 0 to 1000Vrms (CAT III/ 1000V), while its four current channels support automatic clamp recognition and ‘on instrument’ range selection. The Metrel MI2884 Energy Master XA Power Quality Analyser also supports current clamp auto range selection and automatic smart clamp detection and smart clamp range detection.
The quick-set buttons, intuitive menu and large icons make accessing the relevant functions easy and provide a faster data overview. Furthermore, the Metrel MI2884 Energy Master XA Power Quality Analyser’s easy-to-read, graphical, colour display allows the user to perform on-site analysis and data checks.
Data can be saved to the supplied 8GB microSD memory card; the Metrel MI2884 Energy Master XA Power Quality Analyser can support microSD memory cards with capacities up to 32GB. The supplied Metrel PowerView3 Software allows data to be read and downloaded from the microSD card and subsequently analysed and used to create a professional report.
Finally, the Metrel MI2884 Energy Master XA Power Quality Analyser features colour-coded input terminals and terminal labels to suit the application region and is compliant with the power quality standard IEC 61000-4-30 Class S.
The Metrel MI2884 Energy Master XA Power Quality Analyser is a portable, easy-to-use, comprehensive three-phase power quality analyser.
| Electrical Power Systems | Power Plants |
| Photovoltaic | |
| Distribution | |
| Buildings Facility Management | Public areas Safety / Quality |
| Voltage Quality / Power Loads | |
| Industrial Systems | LV Installations Safety / Quality |
| UPS Systems testing | |
| Switchboards / Controlgears | |
| Machines / Power Loads | |
| Electrical Equipment / Appliances | |
| Maintenance / Troubleshooting | |
| 3-phase system testing | |
| High-level industrial testing | |
| Mid-level industrial testing | |
| Special Installations/ Locations | Construction Sites |
| Railway Systems | |
| Fire Brigade Vehicles | |
| Military / Police Vehicles | |
| Mobile LV Generator Units | |
| Medical Sites / Surgery Rooms | |
| Laboratory use | |
| Service / Repair / Rental Offices | |
| Electric motors testing |

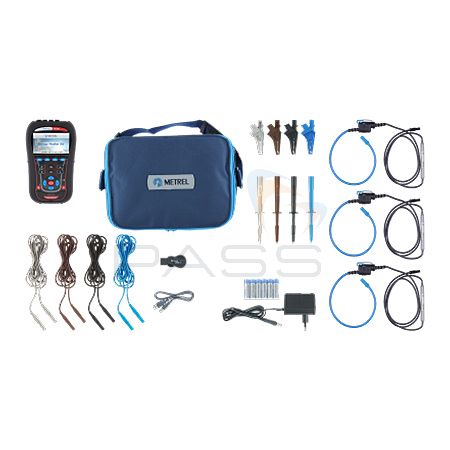

The Metrel MI2884 Energy Master XA Power Quality Analyser is available in three sets, Standard, Euro or Advanced; please see below for an overview of these kits.

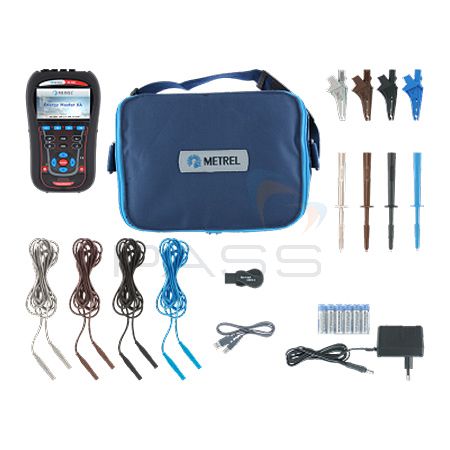

Metrel MI2884 Energy Master XA Power Quality Analyser Standard Set

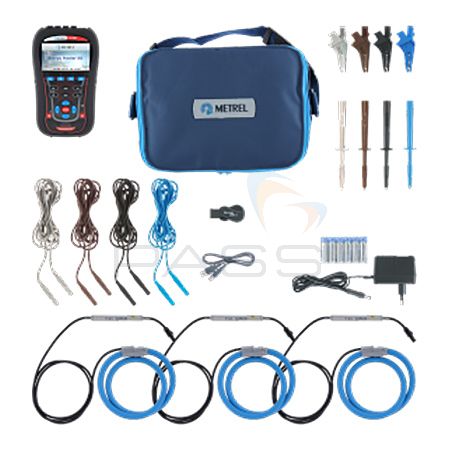

Metrel MI2884 Energy Master XA Power Quality Analyser Euro Set
Metrel MI2884 Energy Master XA Power Quality Analyser Standard Set
| Standard Set | Euro Set | Advanced Set | |
|
Metrel MI2884 Energy Master XA Power Quality Analyser |
X | X | X |
|
3x Metrel A1227 1-Phase Flexible Current Clamps (3000/ 300/ 30 A) |
X | ||
|
3x Metrel A1502 1-Phase Flexible Current Clamps (3000/ 300/ 30 A) |
X | ||
|
4x Test Probes (Brown, Black, Grey, Blue) |
X | X | X |
|
4x Crocodile Clips (Brown, Black, Grey, Blue) |
X | X | X |
|
4x Voltage Measurement Lead (Brown, Black, Grey, Blue) |
X | X | X |
|
Labels for Colour Coding |
X | X | X |
|
8GB MicroSD Memory Card |
X | X | X |
|
MicroSD Card Reader |
X | X | X |
|
Metrel PowerView 3 Software |
X | X | X |
|
USB Cable |
X | X | X |
|
Power Supply Adapter |
X | X | X |
|
6x 1.2V NiMH Rechargeable Battery |
X | X | X |
|
Soft Carry Bag |
X | X | X |
|
Instruction Manual |
X | X | X |
|
Calibration Certificate |
X | X | X |
| Voltage inputs | AC+DC | |
| Number of inputs | 4 | |
| Nominal voltage range (L – N) | Phase (L-N): 50 ... 1000 VRMS | |
| Line (L-L): 50 ... 1730 VRMS | ||
| Measuring range | 10% ... 150% of nominal voltage | |
| Accuracy | IEC 61000-4-30 Class S, ±0.2% of nominal voltage, | |
| Sampling rate | 7 kSamples per sec @ 50/60 Hz, sync with mains freq. | |
| Mains frequency range | 42,5 ... 69,0 Hz ±10 mHz | |
| Current inputs | AC+DC | |
| Number of inputs | 4 | |
| Measuring range (with A 1227 / A 1502 flex clamps) |
3 ... 6000 ARMS ±2% of m.v | |
| Measuring range (with A1281 iron clamps) | 50 m ... 1200 ARMS ±1% of m.v. | |
| Functions | Measuring range | Accuracy |
| Power (P, Q, S) | Depends on voltage and selected clamps | IEC 61557-12 Class 2 |
| Energy | Depends on voltage and selected clamps | Active: IEC 62053-21 Class 2 |
| Reactive: IEC 62053-23 Class 3 | ||
| Harmonics (DC ... 50th) | 0 ... 20% of nom. voltage | IEC 61000-4-7 Class 1 |
| Interharmonics (1 ... 50th) | 0 ... 20% of nom. voltage | IEC 61000-4-7 Class 1 |
| Flicker | 0.2 ... 10 | IEC 61000-4-15 Class F3 |
| Mains signalling | 0 ... 15% of nom. voltage | IEC 61000-4-30 Class S |
| Unbalance | Voltage: 0.5 ... 5.0% | |
| Current: 0.0 ... 20% | ||
| Temperature | -10 ... 85 °C | ±0.5 °C |
| Dips, Swell | 10 ... 150% of nom. voltage | ±0.2 % of nominal voltage |
| ±1 cycle | ||
| Interrupts | 0 ... 10% of nom. voltage | ±1 cycle |
| Memory | 8GB microSD, up to 32GB supported | |
| General Recorder | ||
| Integration period | 1s … 2h | |
| Recorded signals | > 1000 (voltages, currents, harmonics, power…) | |
| Minimu, maximum, average and average ON value | ||
| - Voltage events | ||
| - Custom alarms | ||
| Duration | > 1 year (depends on size of SD card) | |
| Waveform Recorder | ||
| Duration | Up to 60 seconds of voltage and current waveform | |
| Trigger | Manual, Voltage Events, Custom Alarms, voltage or current level (inrush) | |
| Transient recorder | ||
| Sampling rate | 30ksamples/sec | |
| Duration | Up to 50 cycles of voltage and current waveform | |
| Trigger | Manual, voltage envelope or level | |
| General | ||
| Display | 4.3 inch color TFT (480 x 272) | |
| Communication | USB | |
| Power supply | 110 ... 240 Vac or 6 x NiMh rechargable batteries, size AA | |
| Overvoltage category | CAT IV / 600 V or CAT III / 1000 V | |
| Weight | 0.96 kg | |
| Dimensions | 230 x 140 x 80 mm | |
