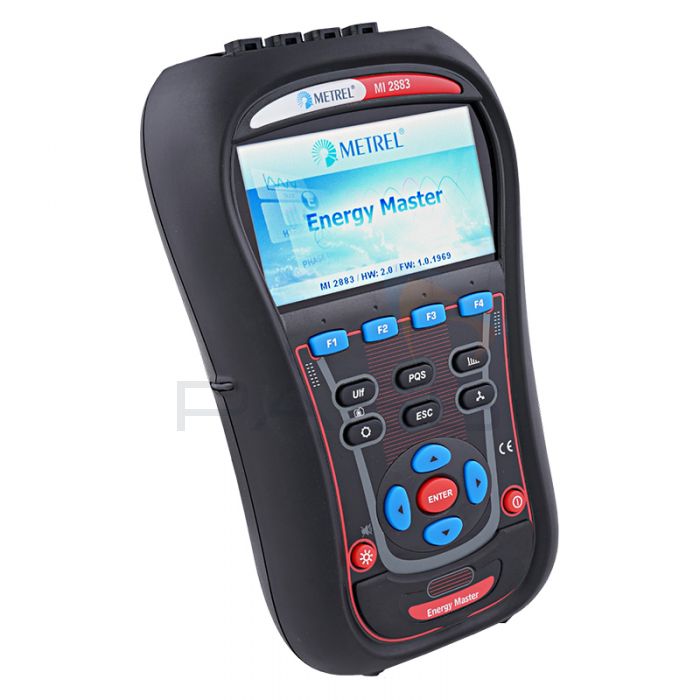

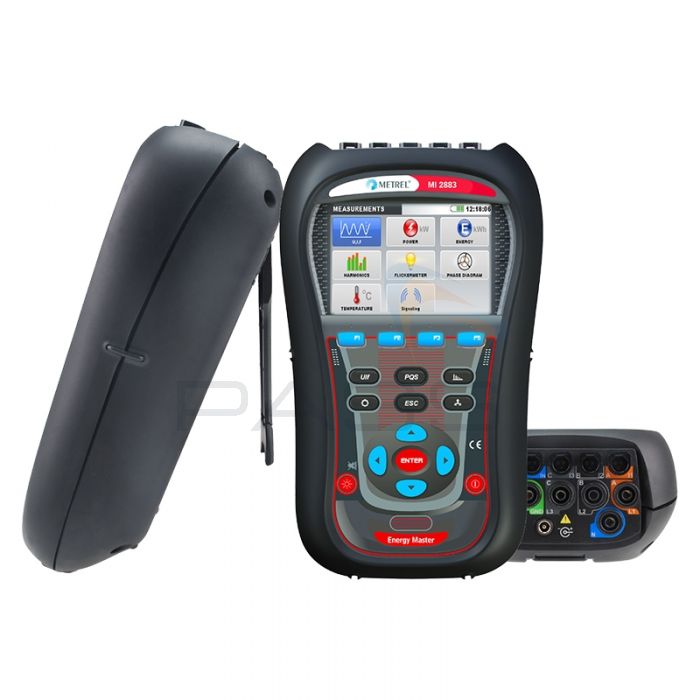

Metrel MI2883 Energy Master Power Quality Analyser

1,535£

(Available)
Quantity

SKU:

Categories: Electrical Testing Equipment

Note: there are three versions of this product available, a Standard Set, Euro Set and Advanced Set. These kits differ in regards to their included clamps, please see the 'What's Included?' section for further details.

Powerful, handheld power quality and energy analyser designed for logging energy and determining the overall efficiency of electrical equipment.

With the Metrel MI2883, you'll be able to determine where you're losing energy and take steps to improve your overall energy efficiency. The analyser is packed with measurement functions, including:

  • Voltage: True RMS, peak and crest factor (3 channels)
  • Current: True RMS, peak and crest factor ( 4 channels)
  • Power: Active, reactive and apparent
  • Unbalance and flicker
  • Harmonic and interharmonic analysis up to 50th harmonic
  • THD
  • Energy: Active, reactive, generated and consumed
  • Capture and recording of power supply events (shutdowns, interruptions, swells and dips)
  • Power measurements (active, non-active, fundamental, harmonic and load unbalance) are fully compliant with IEEE 1459
  • Power quality analysis according to EN 50160 (including signalling and interharmonics)
  • Power factor, cos Φ
  • Temperature

It is possible to configure the Metrel MI2883 Energy Master Power Quality Analyser to include up to seven adjustable alarms. This instrument also includes several Quick Set buttons facilitating faster and easier operation and data overview. Furthermore, the Metrel MI2883 Energy Master Power Quality Analyser's large, easy-to-read colour display also improves the practicality and ease-of-use of this instrument as it enables on-site data analysis and data checks.

The MI2883 is made for logging over a period of time with built-in memory and support for microSD cards of up to 32GB in size (8GB card supplied as standard with the instrument). Metrel also includes a copy of their PC SW PowerView3 Software, allowing you to transfer results to a PC for further analysis, report generation and exportation.

This power analyser is packed full of other useful functions including automatic smart clamp detection and ranging, colour-coded input terminals and an intuitive interface and menu system that makes it easy to configure all procedures.

Metrel MI2883 Power Analyser Key Features

  • Powerful, handheld power quality and energy analyser
  • Log energy and determine the overall efficiency of electrical equipment
  • Identify sources of energy loss and improve overall energy efficiency
  • 3 voltage channels with a measurement range from 0 to 1000V RMS (CAT III 1000V)
  • 4 current channels with support for automatic clamp recognition and on instrument range selection
  • Power: Active, reactive and apparent
  • Unbalance and flicker
  • Harmonic and interharmonic analysis up to 50th harmonic
  • THD
  • Energy: Active, reactive, generated and consumed
  • Capture and recording of power supply events (shutdowns, interruptions, swells and dips)
  • Power measurements (active, non-active, fundamental, harmonic and load unbalance) are fully compliant with IEEE 1459
  • Compliance with power quality standard IEC 61000-4-30 Class S
  • Complete power quality analysis according to EN 50160 including signalling and interharmonics
  • Power factor, cos Φ
  • Temperature
  • Seven adjustable alarms
  • Quick Set buttons for fast operation and data overview
  • Large, easy-to-read colour display for on-site data analysis and data checks
  • Supports microSD memory cards (up to 32GB, 8GB included as standard)
  • Colour-coded input terminals and terminal labels
  • Intuitive main menu and large icons
  • Power PC SW PowerView3 software to download, view and analyse your recorded data

Applications

Electrical Power Systems Power Plants
Photovoltaic
Distribution
Buildings Facility Management Public areas Safety / Quality
Voltage Quality / Power Loads
Industrial Systems LV Installations Safety / Quality
UPS Systems testing
Switchboards / Controlgears
Machines / Power Loads
Electrical Equipment / Appliances
Maintenance / Troubleshooting
3-phase system testing
High-level industrial testing
Mid-level industrial testing
Special Installations/ Locations  Construction Sites
Railway Systems
Fire Brigade Vehicles
Military / Police Vehicles
Mobile LV Generator Units
Medical Sites / Surgery Rooms
Laboratory use
Service / Repair / Rental Offices
Electric motors testing



What's Included?

Metrel MI2883 Energy Master Power Quality Analyser - Standard Set

  • Metrel MI2883 Energy Master Power Quality Analyser
  • 4 x Test Probes (Brown, Black, Grey and Blue)
  • 4 x Croc Clips (Brown, Black, Grey and Blue)
  • 4 x Voltage Measurement Leads (Brown, Black, Grey and Blue)
  • Colour Coding Labels
  • 8.0GB microSD Memory Card
  • microSD Card Reader
  • PC SW PowerView3 Software
  • USB Cable
  • Power Supply Adapter
  • 6 x 1.2V NiMH Rechargeable Batteries
  • Soft Carrying Bag
  • Instruction Manual
  • Manufacturer's Calibration Certificate

Metrel MI2883 Energy Master Power Quality Analyser - Euro Set

  • Metrel MI2883 Energy Master Power Quality Analyser
  • 3x Metrel A1227 1-Phase Flexible Current Clamps 3000/ 300/ 30A
  • 4 x Test Probes (Brown, Black, Grey and Blue)
  • 4 x Croc Clips (Brown, Black, Grey and Blue)
  • 4 x Voltage Measurement Leads (Brown, Black, Grey and Blue)
  • Colour Coding Labels
  • 8.0GB microSD Memory Card
  • microSD Card Reader
  • PC SW PowerView3 Software
  • USB Cable
  • Power Supply Adapter
  • 6 x 1.2V NiMH Rechargeable Batteries
  • Soft Carrying Bag
  • Instruction Manual
  • Manufacturer's Calibration Certificate

Metrel MI2883 Energy Master Power Quality Analyser - Advanced Set

  • Metrel MI2883 Energy Master Power Quality Analyser
  • 3x Metrel A1502 1-Phase Flexible Current Clamps 3000/ 300/ 30A
  • 4 x Test Probes (Brown, Black, Grey and Blue)
  • 4 x Croc Clips (Brown, Black, Grey and Blue)
  • 4 x Voltage Measurement Leads (Brown, Black, Grey and Blue)
  • Colour Coding Labels
  • 8.0GB microSD Memory Card
  • microSD Card Reader
  • PC SW PowerView3 Software
  • USB Cable
  • Power Supply Adapter
  • 6 x 1.2V NiMH Rechargeable Batteries
  • Soft Carrying Bag
  • Instruction Manual
  • Manufacturer's Calibration Certificate

Kit Overview

Products Sets
Standard Euro Advanced
Metrel MI2883 Energy Master Power Quality Analyser X X X
3x Metrel A1502 1-Phase Flexible Current Clamps 3000/ 300/ 30A     X
3x Metrel A1227 1-Phase Flexible Current Clamps 3000/ 300/ 30A   X
4 x Test Probes (Brown, Black, Grey and Blue) X X X
4 x Croc Clips (Brown, Black, Grey and Blue) X X X
4 x Voltage Measurement Leads (Brown, Black, Grey and Blue) X X X
Colour Coding Labels X X X
8.0GB microSD Memory Card X X X
microSD Card Reader X X X
PC SW PowerView3 Software X X X
USB Cable X X X
Power Supply Adapter X X X
6 x 1.2V NiMH Rechargeable Batteries X X X
Soft Carrying Bag X X X
Instruction Manual X X X
Manufacturer's Calibration Certificate X X X



Metrel MI2883 Energy Master Power Quality Analyser Technical Specifications

Function
Voltage inputs AC+DC
Number of inputs 4
Nominal voltage range (L – N) Phase (L-N): 50 ... 1000 VRMS
Line (L-L): 50 ... 1730 VRMS
Measuring range 10% ... 150% of nominal voltage
Accuracy IEC 61000-4-30 Class S, ±0.5% of nominal voltage,
Sampling rate 7 kSamples per sec @ 50/60 Hz, sync with mains freq
Mains frequency range 42,5 ... 69,0 Hz ±10 mHz
Current Inputs AC+DC
Number of inputs 4
Measuring range (with A 1227 / A 1502 flex clamps) 3 ... 6000 ARMS ±2% of m.v
Measuring range (with A1281 iron clamps) 50 m ... 1200 ARMS ±1% of m.v
Functions Measuring range Accuracy
Power (P, Q, S) Depends on voltage and selected clamps IEC 61557-12 Class 2
Energy Depends on voltage and selected clamps Active: IEC 62053-21 Class 2
Reactive: IEC 62053-23 Class 3
Harmonics (DC ... 50th) 0 ... 20% of nom. voltage IEC 61000-4-7 Class 1
Interharmonics (1 ... 50th) 0 ... 20% of nom. voltage IEC 61000-4-7 Class 1
Flicker 0.2 ... 10 IEC 61000-4-15 Class F3
Mains signalling 0 ... 15% of nom. voltage IEC 61000-4-30 Class S
Unbalance Voltage: 0.5 ... 5.0%
Current: 0.0 ... 20%
Temperature -10 ... 85 °C ±0.5 °C
Dips, Swell 10 ... 150% of nom. voltage ±0.2 % of nominal voltage
±1 cycle
Interrupts 0 ... 10% of nom. voltage ±1 cycle
Recorders
Memory 8GB microSD, up to 32GB supported
General recorder
Integration period 1s … 2h
Recorded signals > 1000 (voltages, currents, harmonics, power…) Minimum, maximum, average and average ON value
- Voltage events
- Custom alarms
Duration > 1 year (depends on size of SD card)
General
Display 4.3 inch color TFT (480 x 272)
Communication USB
Power supply 110 ... 240 Vac or 6 x NiMh rechargeable batteries, size AA
Overvoltage category CAT IV / 600 V or CAT III / 1000 V
Weight 0.96 kg
Dimensions 230 x 140 x 80 mm
