Note: there are three versions of this product available. Choose between the Standard Set with no current clamps, the Euro Set with four A1227 flexible current clamps, or the Advanced Set with four A1502 flexible current clamps. Please see the 'What's Included?' section for further information.

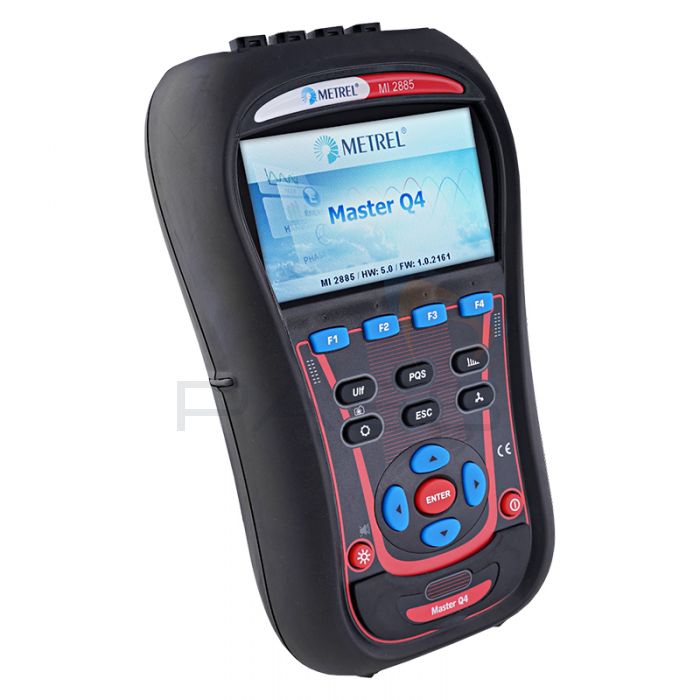

The Metrel Master Q4 is a portable, handheld power quality analyser, suitable for use with low- and middle-voltage electrical systems, optimised for checking power correction equipment performance and predictive maintenance. This instrument is suitable for troubleshooting and long-term monitoring of single- and three-phase power distribution systems.
This analyser is packed full of measurement functions, including:
The Metrel MI2885 Master Q4 Power Quality Analyser is able to conduct power measurements for active, non-active, fundamental, harmonic and load unbalance in compliance with IEEE 1459. The Metrel MI2885 Master Q4 Power Quality Analyser will automatically record waveforms and data pertaining to voltage events such as dips and swells. However, it is also possible to program the Metrel MI2885 Master Q4 Power Quality Analyser to include up to seven adjustable alarms designed to capture waveforms of selected quantities.
The large, easy-to-read graphical colour display allows the user to detect and view harmonics, phasors and waveforms easily whilst the Quick Set buttons provide a faster data overview and make the analyser more user-friendly; this is especially useful during troubleshooting.
This analyser's handheld design makes it ideal for analysis in the field, ensuring you don't have to carry and use heavier equipment. When used with the optional clamps, the analyser will automatically determine the connected clamp and measurement range to speed up measurements.
The MI 2885 has internal memory; it can store several results inside and this information can be directly downloaded to a PC and into Metrel's PC SW PowerView 3. An 8GB memory card is supplied as standard, but the memory can be further expanded by installing a 32GB memory card (sold separately).
This power quality analyser is in compliance with power quality standard 61000-4-30 Class S.
Metrel MI2885 Master Q4 Power Quality Analyser Standard Set
Metrel MI2885 Master Q4 Power Quality Analyser Euro Set
Metrel MI2885 Master Q4 Power Quality Analyser Advanced Set
| Products | Sets | ||
| Standard | Euro | Advanced | |
| Metrel MI 2885 Master Q4 Power Quality Analyser | X | X | X |
| 4x 1-Phase A1227 Flexible Current Clamps 3000/ 300/ 30A | X | ||
| 4x 1-Phase A1502 Flexible Current Clamps 3000/ 300/ 30A | X | ||
| 5 x Test Probes (Brown, Black, Grey, Green and Blue) | X | X | X |
| 5 x Crocodile Clips (Brown, Black, Grey, Green and Blue) | X | X | X |
| 5 x Voltage Measurement Leads (Brown, Black, Grey, Green and Blue) | X | X | X |
| Colour Coding Labels | X | X | X |
| MicroSD Memory Card - 8GB | X | X | X |
| MicroSD Card Reader | X | X | X |
| PC SW PowerView 3 Software | X | X | X |
| RS232, USB and Ethernet Patch Cable | X | X | X |
| Power Supply Adapter | X | X | X |
| 6 x 1.2V NiMH Rechargeable Batteries | X | X | X |
| Soft Carrying Bag | X | X | X |
| Instruction Manual | X | X | X |
| Calibration Certificate | X | X | X |
| Voltage Inputs | AC +DC | |
| Number of inputs | 5 | |
| Nominal voltage range (L – N) | Phase (L-N): 50 ... 1000 VRMS | |
| Line (L-L): 50 ... 1730 VRMS | ||
| Measuring range | 10% ... 150% of nominal voltage | |
| Accuracy | IEC 61000-4-30 Class S, ±0.5% of nominal voltage, | |
| Sampling rate | 7 kSamples per sec @ 50/60 Hz, sync with mains freq | |
| 1.7 kSamples per sec @ VFD (5 Hz - 110 Hz) | ||
| Mains frequency range | 12.2 kSamples per sec @ 400 Hz | |
| 42,5 ... 69,0 Hz ±10 mHz | ||
| 5 ... 110 Hz ± 10 mHz (VFD) | ||
| 335,0 ... 465,0 Hz ± 100 mHz | ||
| Current Inputs | AC + DC | |
| Number of inputs | 4 | |
| Measuring range (with A 1227 / A 1502 flex clamps) | 3 ... 6000 ARMS ±1.5% of m.v | |
| Measuring range (with A1281 iron clamps) | 50 m ... 1200 ARMS ±0.5% of m.v. | |
| Functions | Measuring Range | Accuracy |
| Power (P, Q, S) | Depends on voltage and selected clamps | IEC 61557-12 Class 2 |
| Energy | Depends on voltage and selected clamps | Active: IEC 62053-21 Class 2 |
| Reactive: IEC 62053-23 Class 3 | ||
| Harmonics (DC ... 50th) @50/60 Hz | 0 ... 20% of nom. voltage | IEC 61000-4-7 Class 1 |
| Harmonics (DC ... 20th) @VFD (5 - 16 Hz) | ||
| Harmonics (DC ... 13th) @VFD (16 - 33 Hz) | ||
| Harmonics (DC ... 5th) @VFD (33 - 110 Hz) | ||
| Interharmonics (1 ... 50th) @ 50/60 Hz | 0 ... 20% of nom. voltage | IEC 61000-4-7 Class 1 |
| Interharmonics (1 ... 20th) @VFD (5 - 16 Hz) | ||
| Interharmonics (1 ... 13th) @VFD (16 - 33 Hz) | ||
| Interharmonics (1 ... 5th) @VFD (33 - 110 Hz) | ||
| Flicker | 0.2 ... 10 | IEC 61000-4-15 Class F3 |
| Mains signalling | 0 ... 15% of nom. voltage | IEC 61000-4-30 Class S |
| Unbalance | Voltage: 0 ... 5% | |
| Current: 0 ... 20% | ||
| Temperature | -10 ... 85 °C | ±0.5 °C |
| Dips, Swell | 10 ... 150% of nom. voltage | ±0.2 % of nominal voltage |
| ±1 cycle | ||
| Interrupts | 0 ... 10% of nom. voltage | ±1 cycle |
| Recorders | ||
| Memory | 8GB microSD, up to 32GB supported | |
| General Recorder | ||
| Integration period | 1s … 2h | |
| Recorded signals | > 1000 (voltages, currents, harmonics, power…) | |
| Minimal, maximal and average value per interval | ||
| - Voltage events | ||
| - Custom alarms | ||
| Duration | > 1 year (depends on size of SD card) | |
| Waveform Recorder | ||
| Duration | Up to 20 seconds of voltage and current waveform | |
| Trigger | Manual, Voltage Events, Custom Alarms | |
| Voltage or current level (inrush), Time interval | ||
| General Specifications | ||
| Display | 4.3 inch color TFT (480 x 272) | |
| 4.3 inch color TFT (480 x 272) | USB, Ethernet | |
| Time synchronisation | GPS receiver (A 1355) | |
| Power supply | 110 ... 240 Vac or 6 x NiMh rechargable batteries, size AA | |
| Overvoltage category | CAT IV / 600 V or CAT III / 1000 V | |
| Weight | 0,96 kg | |
| Dimensions | 230 x 140 x 80 mm | |
