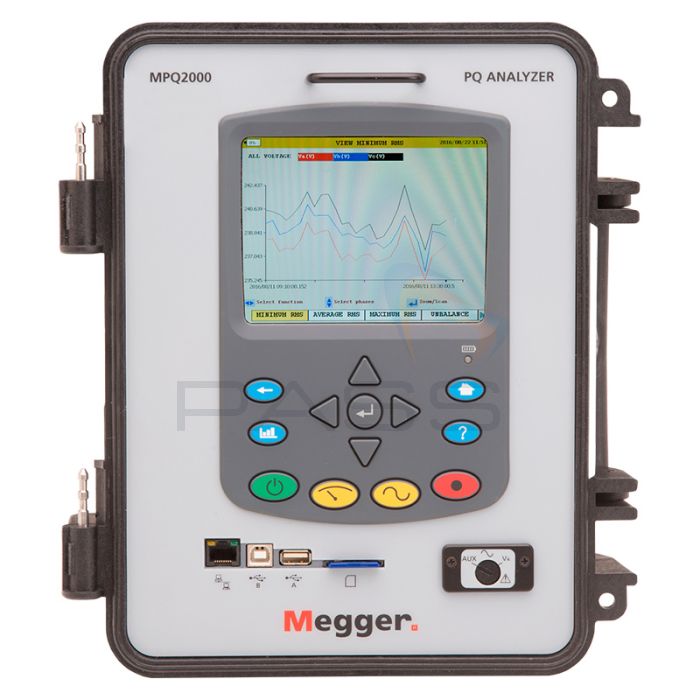

The Megger MPQ2000 portable power quality analyser is a highly intuitive, advanced, portable three-phase analyser, delivering unmatched capability, in a rugged IP54 weatherproof enclosure. You can view RMS data, waveforms, demand data, phase angles, harmonics, unbalance, flicker, and more in real-time with the scope mode and DVM mode. When data needs to be recorded, the MPQ2000 record verification will automatically identify the current clamps, recognise their range, and verify the unit is connected properly. This means you can simply connect it and push the record button.
But the hardware is not all it's about - behind the sturdy exterior is an intelligence that is focused on smart testing, with industry-leading software that enables you to minimise errors while testing, and quickly and easily analyse your results. The MPQ2000 can record for extended periods because of its massive memory. It uses an SD card, which makes expanding the memory as easy as simply installing a new SD card. The recorded data can be viewed on the MPQ2000 colour VGA display, or the data can be transferred to the high-power Megger PQ Power Quality Analysis software via a USB cable, USB drive, Ethernet, or directly from the SD card.
The free software, which requires no license, optimises the MPQ2000 to locate the power quality phenomenon such as lighting issues, computer problems, tripping breakers, and much more. It offers advanced charting, advanced waveform, and advanced harmonic analysis. Seven kits are available, Basic, Silver, Silver Plus, Gold, Gold Plus, Platinum, and Platinum Plus.
| Kit | MPQ2000 Analyser | Voltage Leads | SD Card | USB Cable | Ethernet Cable | Universal Power Cords | Soft-Sided Carry Bag | Fused Adapters | Current Clamps |
|---|---|---|---|---|---|---|---|---|---|
| Basic | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✗ |
| Silver | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | 3 (Four range flex 18 cm ID) CTs |
| Silver Plus | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | 4 (Four range flex 18 cm ID) CTs |
| Gold | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | 3 (Four range flex 27 cm ID) CTs |
| Gold Plus | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | 4 (Four range flex 27 cm ID) CTs |
| Platinum | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | 3 (Four range flex 37 cm ID) CTs |
| Platinum Plus | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | 4 (Four range flex 37 cm ID) CTs |
| MPQ2000 Portable Power Quality Analyser | ||
|---|---|---|
| Input Power | Phase A 90-600V 50Hz/60Hz or 105-600V DC or Aux Input Power - 120/240 V, 50/60 Hz Water-tight cord to operate off standard US, UK, and EU plugs Supports live connect/disconnect |
|
| Battery | NiMH battery pack (field replaceable) Discharge time - 8 hours Recharge time - 3 hours |
|
| Data Storage | External SD card (up to 32 GB) | |
| Communication | Ethernet communications: network communications. Wireless communications with off-the-shelf bridge. USB stick - transfer the data file to USB. Transfer setup configurations to and from the USB stick. Perform firmware upgrades using a USB stick. SD card: automatically writes data to SD card; no manual transfer required. Transfer setup configurations to and from the SD card. No tool needed to access the SD card. |
|
| Environmental | Operating: -20° C to 50° C (-4° F to 122° F) Storage: -30° C to 60° C (-22° F to +140° F) Relative humidity: 0-95% non-condensing Altitude <2000 m: 1000V CAT III / 600 V CAT IV Altitude 2000 m - 4000 m: 600 V CAT III / 300 V CAT IV Altitude 4000 m - 5000 m: 300 V CAT III / 150 V CAT IV |
|
| Case | Ruggedized enclosure IP54 when closed Lockable using a padlock |
|
| Display | Backlit 11.5 cm x 8.5cm color VGA | |
| Motor Inrush | Can record RMS, Power, Energy, and PF every 1 cycle simultaneously continuously. Can capture up to 1 minute of raw waveform data on every motor start-up on all channels simultaneously. Can monitor a motor for weeks or months continuously. Support both three-phase and single-phase motors. |
|
| Real Time Data | Scope Mode | View waveforms in scope mode Freeze, zoom, and pan View Vector scope View ANSI unbalance View IEC unbalance View harmonic in real time View inter-harmonics in real time View RMS voltage and current in real time |
| DMM Mode | View IEC unbalance View Harmonic in real time View RMS voltage and current in real time View THD in real time View active power in real time View reactive power in real time View apparent power in real time View DPF in real time View TPF in real time View flicker in real time |
|
| Compliance | IEC61000-4-7 IEC61326 IEC61000-4-30 Ed. 3 (Class A) IEC60529 IEC61000-4-15 MIL-STD-810 G IEC61000-4-27 IEEE 1453 IEC61010-1 IEEE 1459 RoHS2 Directive 2011/65/EU CAN/CSA-C22 No. 1010.1-92 |
|
| Dimensions | 305 mm x 266 mm x 143 mm (12.01 in. x 10.47 in. x 6.38 in.) | |
| Weight | Standard unit: 2.27 kg (5 lbs) | |
| Sampling | Resolution | Batt16 bit analog to digital converter on 8 channels |
| Max Sampling Speed | 1 MHz max | |
| Max RMS Sampling | 17,664 per channel max | |
| PLL Synchronization | 42.5 Hz to 69 Hz | |
| Real Time Clock | Accuracy | ±20 ppm |
| Trended Parameters Voltage 4 Voltage Channels (Isolated) |
AC Voltage Range | 0 to 1000 V AC RMS |
| DC Voltage Range | ±1500 Vdc | |
| Note: CATIII rating applicable up to 1000 Vdc Measures AC & DC simultaneously (NO common neutral required) | ||
| AC Voltage Accuracy | 0.1% per IEC61000-4-30 | |
| DC Voltage Accuracy | ±0.2% of full scale ±2 Vdc | |
| Voltage Ratios | Adjustable voltage ratios for measuring secondaries. (.0001 through 9999) | |
| Resolution | 16 bit | |
| Crest Factor | 1.5 | |
| Max pk Voltage | 1628 V / 2500 V | |
| Impedance | 20.01 MΩ to gnd nominal | |
| Voltage Lead Set | 4 voltage leads, 6 ft (2 m) in length. Safety banana leads. Removable alligator clips. Optional plunger clips. Set of color bands for customizing color codes. Safety green/ yellow ground lead included. |
|
| Current Channels 5 Current Channels |
Current Range | 0 to 6000 A (CT dependent) |
| Current Ratios | Adjustable current ratios for measuring secondaries (000.1 through 9999) |
|
| AC Current Accuracy | ±0.5% of reading ±0.05% of full scale | |
| DC Current Accuracy | ±1.0% of the full scale | |
| Resolution | 16 bit | |
| Crest Factor | 4.0 | |
| Power and Energy | Active Power (KW) | Per IEEE1459 |
| Reactive Power (KVAR) | Per IEEE1459 | |
| Apparent Power (KVA) | Per IEEE1459 | |
| Energy Parameters (KWH, KVARH, KVAH) | Per IEEE1459 | |
| Displacement Power Factor Range | -1.0 to +1.0 | |
| Displacement Power factor accuracy | = ±0.02 + CT error | |
| True Power Factor Range | 0.0 to +1.0 | |
| True Power Factor Accuracy | = ±0.02 + CT error | |
| Power Configurations | 11 | |
| Aggregation Window | 1 cycle to 1 hour - fixed and sliding windows | |
| Unbalance | ANSI & IEC methodology per IEC61000-4-27 | |
| Total Harmonic Distortion (THD) | Per IEC61000-4-30 & IEC 61000-4-7 | |
| Distortion | 200ms, 3 sec, 10 min windows | |
| Vthd | 0-100%, +/- 5% for V≥1% Vnom, | |
| Ithd | ±5% reading @ ≥ 3% Inom, ±0.15% full scale @ < 3% Inom | |
| Harmonics | 0 through 50th continuous | |
| Inter-harmonics | 0 through 50th continuous | |
| Total Demand Distortion (TDD) | Per IEEE519 | |
| Frequency | Per IEC61000-4-30 | |
| Flicker | Per IEC61000-4-15 | |
| Pst | 10 minutes : 0.2-10, +/- 0.05 @ Pst=1 (50/60Hz only) | |
| Plt | 2 hours : 0.2-10, +/- 0.05 @ Pst=1 (50/60Hz only) | |
| Functions | Auto-identify CT and CT range setting Configuration verification - Display if the unit is connected incorrectly. On-board analysis - Perform data analysis on the unit. Compare recorded values against customizable templates. Waveform analysis through the 128th order. Clock hour orientation - Time sync recording to nearest interval. Scheduled run - Select the start and stop time of the recording. The instrument then automatically begins recording. On-board configuration - Ability to configure recording parameters from the front panel of the instrument. Auto Setup - Ability to have the instrument automatically configure itself. On-board naming of data and setup files -Ability to name data and setup files from the front panel of the instrument. Supported languages: English, Spanish, French, German & Czech On-Board Instrument Preference Settings: Selectable Traces Colors Selectable Short Cut Buttons Selectable Time Out Period Chart Grid ON / OFF |
|
| Measurement Parameters | RMS voltage RMS current Sags / dips / swells Transients (1 msec) (±2697 V) Sub-cycle events 64 msec (notching, noise) Rapid voltage change Phase angle stability IEC Unbalance ANSII Unbalance Power (KW, KVAR, KVA, DPF & TPF) Energy (KWH, KVARH & KVAH) Power Factor 1 to 0 to -1 Phase Angle THD TDD Harmonics Inter-Harmonics Power Harmonics Harmonic Direction Flicker Waveform Capture Frequency |
|
| Software | Windows compliant (XP, Win 7, 8, 10) | |
