The Megger MPQ1000 Three-Phase Handheld Power Quality Analyser is available in seven kits, including a number of new kits introduced for 2019; please see the 'What's Included?' section for an overview of the items included in each kit.
Looking for an advanced, handheld solution for measuring power quality in your premises?

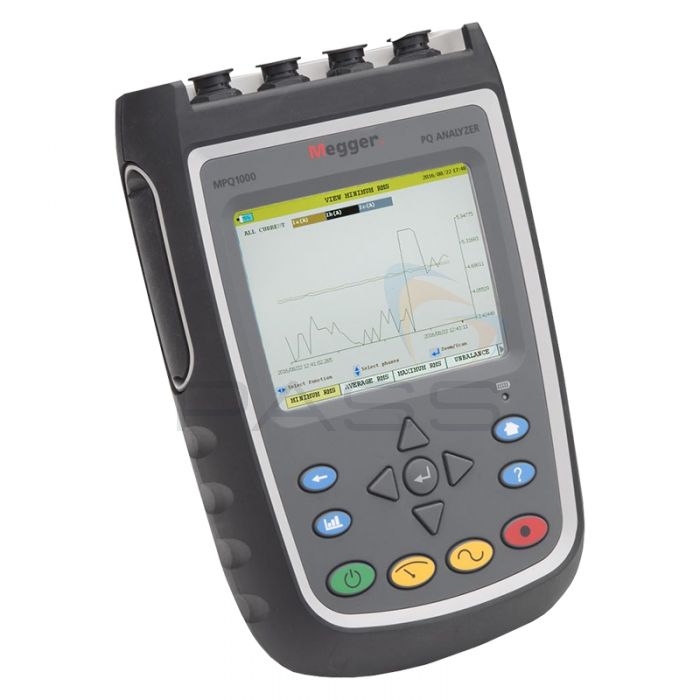

Megger's MPQ1000 is a truly portable, comprehensive power analysis tool which can calculate a wide variety of power and electrical factors, stores all the data on an included SD card and is packed with features and functionality.
The MPQ1000 is designed for use on three phase systems and is excellent for compliance testing, power factor studies, load studies and load balancing, billing verification, substation monitoring, capacitor bank sizing, transformer analysis and de-rating, motor troubleshooting and inrush testing, switchgear and component failure, tripping breakers, equipment tripping offline, dimming/surging lighting, lamp flicker analysis, neutral overheating and solar (PV) analysis. For a quick introduction to this analyser, please see the following video.
Whether you want to view RMS data, waveforms, perform simple electrical measurements or do complicated power studies, the Megger MPQ1000 is ready for the job.
This power quality analyser is ideal for monitoring electrical parameters and performing waveform studies; the MPQ1000 can be used for a wide variety of different measurements, including:
Watch the video below for an overview of the Megger MPQ1000's test procedure.
This instrument is easy-to-setup via the free Megger PQ Software (please see the video below). As this software is available for free, a dongel or license is not required.
The Megger MPQ1000 power analyser is designed for use with optional CT current probes (included in the Silver kit or sold separately). When connected, the analyser will automatically identify which clamps are connected, recognise their range and compensate accordingly.
To ensure correct setup when measuring, the MPQ1000 also has a connection verification setting - this means your connections will always be configured correctly and you'll always get the data you exactly need without any wasted data. For an overview of the Megger MPQ1000's configuration verification feature, please see the following video.
As standard the MPQ1000 power analyser ships with a 32GB SD card; this stores a huge amount of data directly into the analyser's memory, ready for further analysis on a PC at a later date using Megger's PQ Power Quality Analysis Software.
Thanks to such large memory storage, the MPQ1000 is perfectly suited for long, extended studies over several days.
When you're ready to download to PC, the MPQ1000 includes multiple communications modes to send data. These include a USB connection, Ethernet connection, USB stick or the SD card itself.
Alternatively, as the Megger MPQ1000 Power Analyser also features built-in data analysis capabilities, measurements may be analysed on-site; please see the following video for further information.
There's even more to the Megger MPQ1000:
| Product | Kit | ||||||
| 1009-752 - Basic Kit | 1009-753 - Silver Kit | MPQ1000-S-KIT-PLUS - Silver Plus Kit | MPQ1000-G-KIT - Gold Kit | MPQ1000-G-KIT-PLUS - Gold Plus Kit | MPQ1000-P-KIT - Platinum Kit | MPQ1000-P-KIT-PLUS - Platinum Plus Kit | |
| Megger Three-Phase Handheld Power Quality Analyser | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Voltage Leads | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| SD Card | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| USB Cable | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Ethernet Cable | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Universal Power Adapter | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Soft Carry Bag | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| 3x Fused Adapters | ✔ | X | X | X | X | X | |
| Hanging Strap | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| 4x Plunger Clips | X | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Megger MCCV6000-18 CT (4-range, flex 18cm ID) | X | ✔x3 | ✔x4 | X | X | X | X |

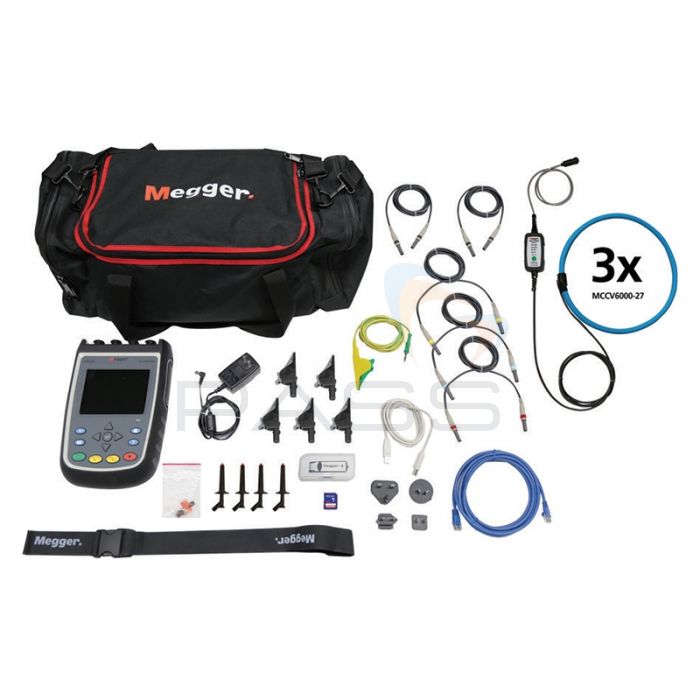

| Megger MCCV6000-27 CT (4-range, flex 27cm ID) | X | X | X | ✔x3 | ✔x4 | X | X |

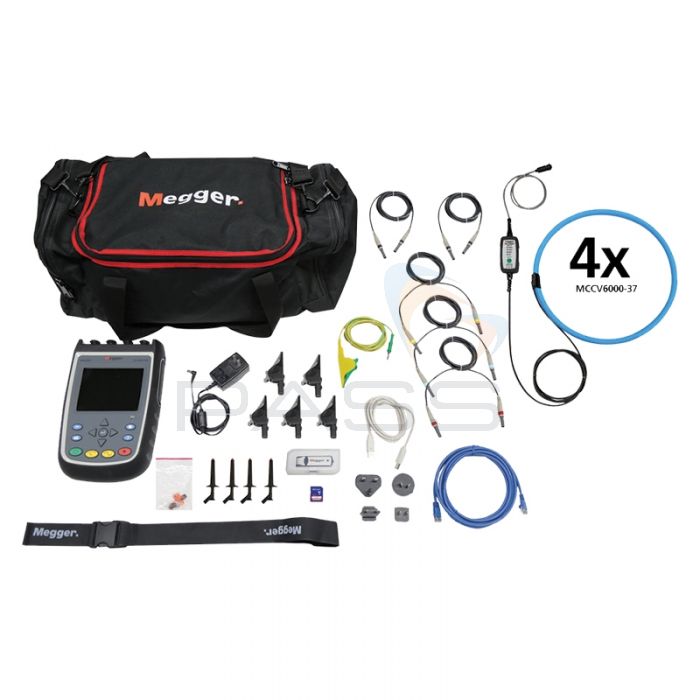

| Megger MCCV6000-37 CT (4-range, flex 37cm ID) | X | X | X | X | X | ✔x3 | ✔x4 |
| Input Power | 120/240 V, 50/60 Hz |
| International power adapter supports US, UK, EU and Australian plugs | |
| Battery | NiMH battery pack (field replaceable) |
| Discharge time – up to 8 hours | |
| Recharge time – 3 hours | |
| Data storage | External SD card (32GB max) |
| Communication | USB communications |
| Ethernet communications: network communications. | |
| Wireless communications with off-the-shelf bridge. | |
| USB stick - transfer data file to USB. Transfer setup configurations to and from USB stick. Perform firmware upgrades using USB stick | |
| SD card: automatically writes data to SD card; no manual transfer required. Transfer setup configurations to and from SD card. No tool needed to access the SD card. | |
| Environmental | |
| Operating | 20° C to 50° C (-4° F to 122° F) |
| Storage | -30° C to 60° C (-22° F to +140° F) |
| Relative humidity | 0-95% non-condensing |
| Altitude <2000 m | 1000V CAT III / 600 V CAT IV |
| Altitude 2000 m - 5000 m | 600 V CAT III / 300 V CAT IV |
| Case | IP54 enclosure |
| Kensington lock | |
| Display | Backlit 11.5 cm x 8.5 cm color VGA |
| Resolution 5.56 pixels per mm (640 x 480 pixels, 115.2 x 86.4 mm) | |
| Refresh rate: 1-3 sec | |
| PQ Events | |
| Dips / sags | Triggers off of voltage and current. IEC61000-4-30 compliant |
| Swells | Triggers off of voltage and current. IEC61000-4-30 Compliant |
| Sub-cycle distortions | Triggers off of voltage and current. IEC61000-4- 30 compliant. |
| Transient detection | 1 μsecond. Triggers off of first 3 voltage channels. IEC61000-4-30 compliant |
| THD | Triggers off of voltage and current. IEC61000-4-30 Compliant |
| Rapid Voltage Change (RVC) | Triggers off of first 3 voltage channels. IEC61000-4-30 compliant. |
| Phase shifts | Trigger event when a phase shift occurs between the voltage channels. Record date and time, duration and waveforms of all enabled channels. Phase shift user selectable down to 1 degree. |
| Waveform capture of events | Capture waveforms on all enabled channels when an out of limits event occurs. Waveforms programmable with up to 9 pre-trigger cycles and 99 post-trigger cycles. |
| Timed waveform capture |
Captures waveforms periodically on all enabled channels. Waveform capture interval programmable down to 1 cycle. Programmable number of cycles to be captured up to 99 cycles. Event triggered waveforms and timed triggered waveforms simultaneously |
| Mains signaling events | Two selectable frequencies and amplitudes. Selectable time interval. Measured per IEC61000-4-30. Captures waveforms on all enabled channels when a mains signaling event occurs. Waveform programmable with up to 9 pre-trigger cycles and 99 post-trigger cycles. |
| Event Flagging | Measured per IEC61000-4-30. |
| Motor Inrush |
Records RMS, Power and PF at a 1 cycle resolution. Capture inrush current during motor start up. Support both three-phase and single-phase motors |
| Real Time Data | |
| Scope Mode | View waveforms in scope mode |
| Freeze, zoom and pan | |
| View Vector scope | |
| View ANSI unbalance | |
| View IEC unbalance | |
| View harmonic in real time | |
| View inter-harmonics in real time | |
| View RMS voltage and current in real time | |
| DMM Mode | View IEC unbalance |
| View Harmonic in real time | |
| View RMS voltage and current in real time | |
| View THD in real time | |
| View active power in real time | |
| View reactive power in real time | |
| View apparent power in real time | |
| View DPF in real time | |
| View TPF in real time | |
| View flicker in real time | |
| Compliance | IEC61000-4-7 |
| IEC61000-4-15 | |
| IEC61010-1 | |
| IEC60529 | |
| IEEE1453 | |
| RoHS2 Directive 2011/65/EU | |
| IEC61000-4-30 (Class A) | |
| IEC61000-4-27 | |
| IEC61326 | |
| MIL-STD-810-G | |
| CAN/CSA-C22.2 No. 1010.1-92 | |
| IEEE1459 | |
| Dimensions | 269 mm x 178.4 mm x 70.7 mm (10.6 in. x 7.0 in. x 2.8 in.) |
| Weight | Standard unit: 1.82 kg (4 lbs) |
| Sampling | |
| Resolution | 16 bit analog to digital converter on 8 channels |
| Max sampling speed | 1 MHz max |
| Max RMS sampling | 17,664 per channel max |
| PLL synchronization | 42.5 Hz to 69 Hz |
| Real Time Clock | Accuracy ±20 ppm |
| Trended Parameters | |
| Voltage - 4 voltage channels | |
| Voltage range | 0 to 1000 V range AC RMS DC - Measures AC & DC simultaneously (common neutral required) |
| Voltage accuracy | 0.1% per IEC61000-4-30 |
| Voltage ratios | Adjustable voltage ratios for measuring secondaries. (.0001 through 9999) |
| Resolution | 16 bit |
| Crest factor | 1.5 |
| Max pk voltage | 1628 V / 2500 V |
| Voltage lead set | 5 voltage leads, 6 ft (2 m) in length. Safety banana leads. Removable alligator clips. Optional plunger clips. Set of color bands for customizing color codes. Safety green/yellow ground lead included. |
| Fused adapter | In line with voltage leads to provide fuse protection (optional) |
| Current Channels - 4 current channels | |
| Current range | 0 to 6000 A (CT dependent) |
| Current ratios | Adjustable current ratios for measuring secondaries (000.1 through 9999) |
| Current accuracy | ±0.5% of reading ±0.05% of full scale |
| Resolution | 16 bit |
| Crest factor | 4.0 |
| Power and Energy | |
| Active power (KW) | Per IEEE1459 |
| Reactive power (KVAR) | Per IEEE1459 |
| Apparent power (KVA) | Per IEEE1459 |
| Energy parameters (KWH, KVARH, KVAH) | Per IEEE1459 |
| Displacement power factor range | -1.0 to +1.0 |
| Displacement power factor accuracy | = ±0.02 + CT error |
| True power factor range | 0.0 to +1.0 |
| True power factor accuracy | = ±0.02 + CT error |
| Power configurations | 11 |
| Aggregation window | 1 cycle to 1 hour - fixed and sliding windows |
| Unbalance | ANSI & IEC methodology per IEC61000-4-27 |
| Total Harmonic Distortion (THD) | Per IEC61000-4-30 |
| per IEC61000-4-7 | |
| Harmonics | 0 through 50th continuous |
| Inter-harmonics | 0 through 50th continuous |
| Total Demand Distortion (TDD) | Per IEEE519 |
| Frequency | Per IEC61000-4-30 |
| Flicker | Per IEC61000-4-15 |
| Functions | Auto identify CT and CT range setting |
| Configuration verification - Display if unit is connected incorrectly. | |
| On board analysis - Perform data analysis on unit. Compare recorded values against customizable templates. | |
| Waveform analysis through the 128th order | |
| Clock hour orientation - Time sync recording to nearest interval. | |
| Scheduled run - Select start and stop time of recording. Instrument then automatically begins recording. | |
| On board configuration - Ability to configure recording parameters from front panel of instrument. | |
| Auto Setup - Ability to have instrument automatically configure itself. | |
| On board naming of data and setup files -Ability to name data and setup files from the front panel of the instrument. | |
| Supported languages: English, Spanish, French, German & Czech | |
| On Board Instrument Preference Settings | Selectable Traces Colours |
| Selectable Short Cut Buttons | |
| Selectable Time Out Period | |
| Chart Grid ON / OFF | |
| Measurement Parameters | RMS voltage |
| RMS current | |
| Sags / dips / swells | |
| Transients (1 msec) (±2697 V) | |
| Sub-cycle events 64 msec (notching, noise) | |
| Rapid voltage change | |
| Phase angle stability | |
| IEC Unbalance | |
| ANSII Unbalance | |
| Power (KW, KVAR, KVA, DPF & TPF) | |
| Energy (KWH, KVARH & KVAH) | |
| Power Factor (1 to 0 to -1) | |
| Phase Angle | |
| THD/TDD | |
| Harmonics | |
| Inter-Harmonics | |
| Power Harmonics | |
| Harmonic Direction | |
| Flicker | |
| Waveform Capture | |
| Frequency | |
| Software | Windows compliant (Win 7, Win 8 and Win 10) |
Key
✔ = Included
X = Not Included
