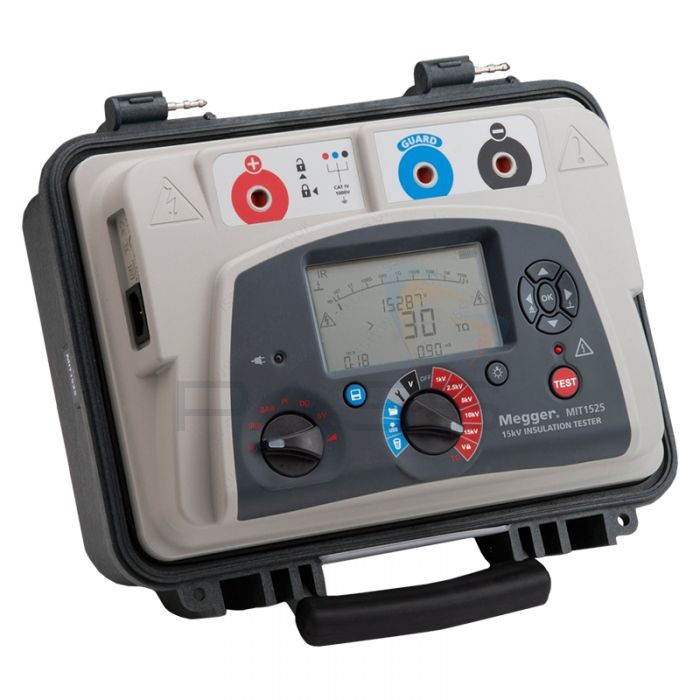

Megger MIT1525-UK High Voltage DC Insulation Resistance Tester - 15kV

Test insulation resistance across a wide range with consistently reliable results using Megger's portable high voltage insulation tester, the MIT1525.

This is the highest spec model available in Megger's MIT1500 series, with the ability to perform insulation resistance tests at a voltage of up to 15kV and maximum resistance range of up to 30TΩ.  Preconfigured diagnostic tests are also included, allowing you to test polarisation index (PI), dielectric absorption ratio (DAR), dielectric discharge (DD), step voltage and also perform ramp tests (ramp mode exclusive to this model).

All results can be seamlessly stored in the MIT1525's internal memory storage, with easy recall on the instrument or on PC using Megger's PowerDb Pro, Advanced and Lite software packages. Results are date/time stamped for easy referencing.

Megger's MIT1525 insulation tester is designed for portable use - it comes as standard housed inside its own briefcase-style carrying case, which also protects the tester from knocks/drops and other common forms of damage. When closed, the case is rated to IP65 to completely eliminate damage from moisture or dust ingress.

This model also comes with rapid charge rechargeable batteries - with just 30 minutes of charging, the MIT1525 can be used to test for more than 60 minutes!

Megger MIT1525-UK High Voltage DC Insulation Resistance Tester Key Features

• Measure insulation resistance up to 30TΩ
• Selectable test voltages of 1000V, 2500V, 5000V, 10000V and 15000V
• Perform IR, Timed IR, DAR, PI, DD, SV, and ramp diagnostic testing
• High current - 3mA short circuit
• High noise immunity (3mA at 5kV and 10kV, 6mA at 15kV)
• Powered by lithium-ion rechargeable battery - up to 6 hours of continuous testing at 5kV with a 100M load
• CAT IV 600V to 3000m (5kV, 10kV) and CAT IV 1000V to 3000m (15kV)
• Large-size LCD display with backlight
• Dedicated voltmeter function with a range from 30 to 660V
• Built-in memory storage - store date/time stamped records with on-screen recall
• Download your results to PC using a USB interface
• Recorded temperature (measured by other instruments) can be logged alongside test results
• Manage your results with Megger's PowerDB Lite software (included)
• Can be powered by the battery or AC mains supply
• Unique, dual-case design - protects the tester from harm while making transportation easy

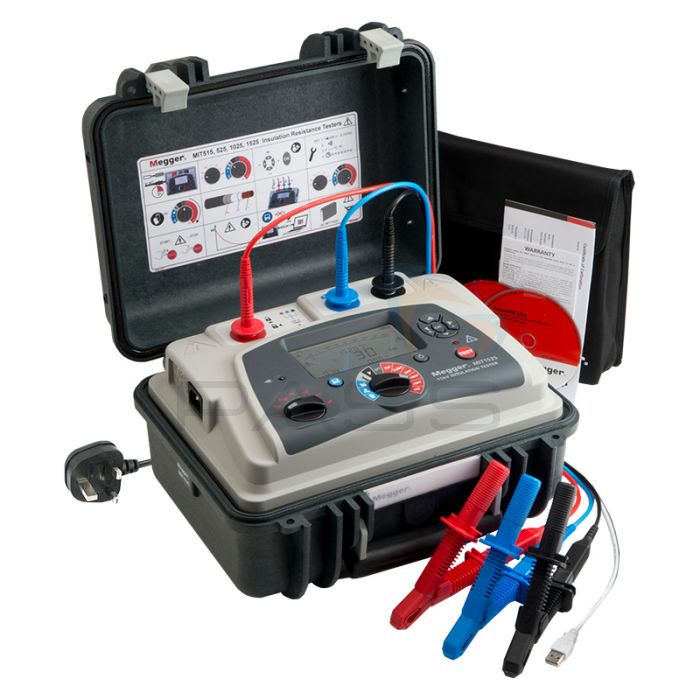

What's Included?

• Megger MIT1525-UK High Voltage DC Insulation Resistance Tester
• Power Lead
• USB Cable
• PowerDB Lite Software
• Production Information CD
• Megger 1002-949 Leadset - 3 x 3m Leads with Large, 15kV Insulated Clips

Optional Accessories

If you would like to order any of these items, please call our sales team for pricing.

You can find more information about accessories in Megger's datasheet for this product (available as a download further down the page).
