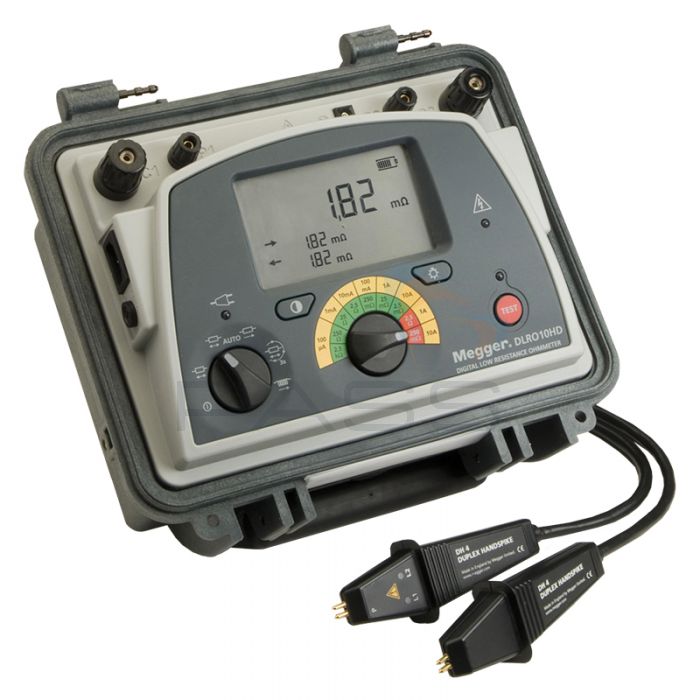

Megger DLRO10HD Digital Low Resistance Ohmmeter Description
The Megger DLRO10Hd Digital Low Resistance Ohmmeter is a highly resilient, rugged instrument capable of performing ducter tests; that is measuring very low contact resistance. The Megger DLRO10HD Digital Low Resistance Ohmmeter can perform ducter tests on any metallic joint, including those present in railways and aircraft.
It features new interchangeable test lead terminations and a multitude of measurement functions all accessible via the simple-to-use rotary switch. These five measurement functions are:
- Auto Start on Connection mode: each time the probes are disconnected and then reconnected to any item under test, the ohmmeter will perform a new test automatically. This mode derives and displays the average resistance reading by measuring the forward and reverse currents, and is ideal when using handspikes.
- Normal mode: this mode checks the continuity of all four of the attached connections. The ohmmeter will issue a forward and backward current, enabling it to check and display the continuity of the four points connected to the ohmmeter via the four test lead connections.
- Automatic Unidirectional mode: allows the user to take swifter measurements by issuing a single direction current.
- Continuous mode: takes repeat measurements of the same sample; these measurements are updated every three seconds until the circuit is broken.
- Inductive mode: this mode passes a single direction current through the object under testing and will continue to take readings until the user has decided that the test object’s voltage has stabilised. Once the user has decided a stable voltage has been reached he/she can press the TEST button to terminate the test. This mode is ideal for testing motors and generators.
The Megger DLRO10HD Digital Low Resistance Ohmmeter’s tests last for up to sixty seconds. It reduces cooling time and makes charging inductance more efficient by issuing 10A for sixty seconds; it can also deliver 10 A into 250 mΩ and 1A into 2.5 Ω. Moreover, the Megger DLRO10HD Digital Low Resistance Ohmmeter can be used to perform condition diagnostics as it is capable of issuing a high or low output power.
This product has been optimised to be as versatile and easy-to-use as possible, its Auto-Power-Off function allows the user to conserve battery life thereby extending the Megger DLRO10HD’s longevity. However should the rechargeable battery run flat, the Megger DLRO10HD Digital Low Resistance Ohmmeter can be connected to a line power supply allowing this product to remain functional.
Furthermore, this low resistance ohmmeter is extremely rugged, not only has it been designed to withstand 600V without blowing a fuse, which also protects it from damage should it accidentally be connected to line or UPS voltage, it also features a Test Lead Live voltage warning light. In addition to this, the Megger DLRO10HD is housed in a robust case, protecting it from the elements and falls of up to 1m. For more information about the Megger DLRO10HD’s rugged design please consult the video below.
Finally, the Megger DLRO10HD Digital Low Resistance Ohmmeter features a large, clear, backlit LCD display ensuring its measurements can be read from a multitude of angles and in a variety of environments, thereby making this product an extremely practical, versatile and efficient instrument.
Megger DLRO10HD Digital Low-Resistance Ohmmeter Key Features
- Durable ohmmeter capable of measuring low contact resistance in any metallic joint
- NEW interchangeable test lead terminations
- Five test modes, including Auto Start on Connection; Normal; Automatic Unidirectional; Continuous; Inductive
- All modes selectable via rotary switch, which is easy to use in all weather conditions and when wearing gloves
- Tests last for up to 60seconds
- Can deliver 10 A into measurements up to 250mΩ and 1 A into measurements of up to 2.5Ω
- 10A for 60 seconds, reduces cooling time, better for charging inductance
- Can issue high or low output power for condition diagnosis
- Large, backlit, LCD display with contrast adjustment
- Can be connected to line power supply which maintains the product’s functionality even if the battery is flat
- Withstands 600V without blowing a fuse
- Inadvertent connection to line or UPS voltage will not blow a fuse
- Test Lead Live voltage warning light
- Housed in a robust case
- The heavy-duty case has an IP rating of 65 with the lid closed
- Protected to IP54 (battery operational only)
- Auto-Power-Off function
- Removable lid facilitates easy test lead connection
Megger DH4-C Test Lead Set Description
The Megger DH4-C Test Lead Set can be used with the Megger DLRO10HD Low Resistance Ohmmeter.
It includes two DP1-C Duplex Probes; one TL1.5-C Connect Lead (1.5m); one TL1.5-CL Connect Lead with Indicator Lights (1.5m) and has a total lead set loop resistance of 48mΩ.
Megger DH4-C Test Lead Set Key Features
- Test leads which can be used in conjunction with the Megger DLRO10HD Low Resistance Ohmmeter
- 2x DP1-C Duplex Probes
- 1x TL1.5-C 1.5m Connect Lead
- 1x TL1.5-CL 1.5m Connect Lead with Indicator Lights
- 48mΩ total lead set resistance
What’s Included?
- Megger DLRO10HD Digital Low Resistance Ohmmeter
- DLRO10HD User Guide CD
- Warranty Book
- Megger DH4-C Test Lead Set
