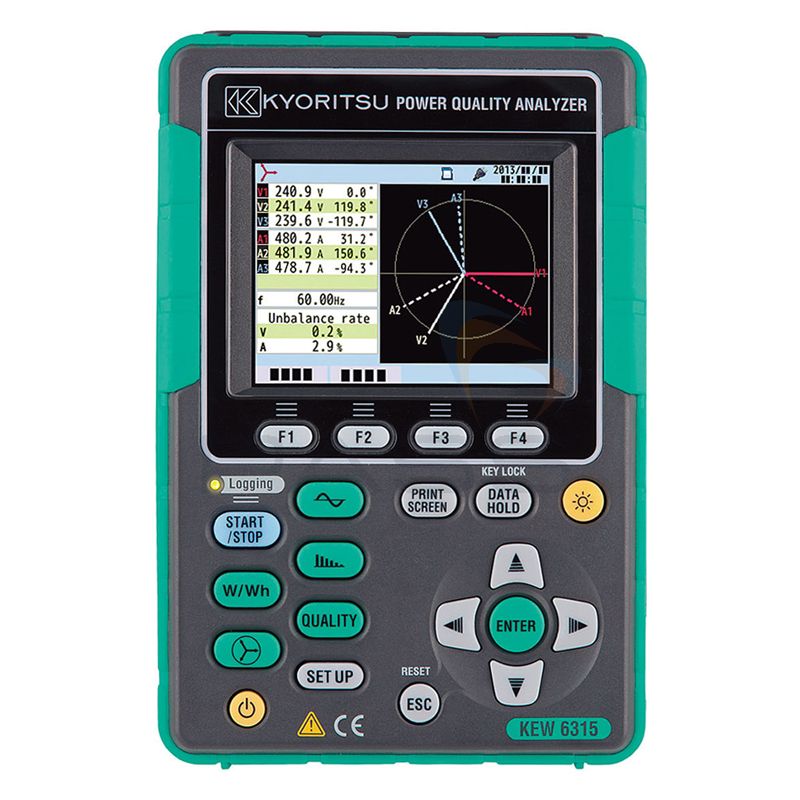

Kewtech 6315 Power Quality Analyser

3,847£

(Available)
Quantity

SKU:

Categories: Electrical Testing Equipment

With four current channels* and 3 voltage channels built-in, the Kewtech 6315 captures and records power, harmonic, waveform and power quality events from multiple sources simultaneously.

By using the Kewtech 6315's advanced measurement and capturing capabilities it's easy to verify exactly where energy is loss and make improvements to the power quality of an installation. It's even extremely simple to set up, with dedicated quick start guide, wiring check and sensor detection for easy and reliable measurements at all times.

This power analyser is capable of tracking and storing data on practically every type of electrical and power factor. It can perform voltage, current, frequency, active power, reactive power, apparent power, active energy, reactive energy, apparent energy, power factor (cos), neutral current, demand, harmonics, quality (swell/dip/interruption, transient/overvoltage, inrush current, unbalance rate) capacitance calculation for PF correction unit and flicker procedures.

These measurement are recorded in realtime on the included 2GB SD card. Data can then be easily transferred to PC using the card, a USB cable or it is possible to view data back wirelessly via Bluetooth using a compatible Android device and the KEW smart 6315 app (available on the Google Play Store).

*Please note that current sensors are not included as standard with this unit. The following clamp current sensors are compatible with this tester:

  • 8128
  • 8127
  • 8126
  • 8125
  • 8124
  • 8146
  • 8147
  • 8148
  • 8129

Kewtech 6315 Power Quality Analyser Key Features

  • Simultaneous power and power quality measurements - calculate power, harmonics, waveform and power quality simultaneously
  • 3 voltage channels and 4 current channels
  • Helpful support functions - quick start guide, wiring check and sensor detection
  • Guaranteed high accuracy measurements in compliance with IEC 61000-4-30 Class S and EN50160
  • Remote monitoring on PC and Android devices - remote checking via Bluetooth communication and store data on the included SD card
  • Compatible with various clamp sensors with range from 1000mA up to 3000A (plus earth leakage)
  • Energy consumption check on site with trend and demand graphs
  • High quality full colour TFT display with high resolution
  • IEC 61010-1 compliant
  • CAT IV 300, CAT III 600V and CAT II 1000V rated

What's Included?

  • Kewtech 6315 Power Quality Analyser
  • 3x KEW8130 1000A Flexi-Clamps
  • Four Voltage Leads
  • PQA Software
  • SD Card

Kewtech 6315 Technical Specifications

Wiring Connections 1P2W, 1P3W, 3P3W, 3P4W
Measurements Voltage, current, frequency, active power, reactive power, apparent power, active energy, reactive energy, apparent energy, power factor (cos), neutral current, demand, harmonics, quality (swell/dip/interruption, transient/overvoltage, inrush current, unbalance rate) capacitance calculation for PF correction unit, flicker
Voltage (RMS)
Range 600.0/1000V
Accuracy ±0.2% rdg ±0.2% f.s. (sine wave, 40-70Hz)
Allowable Input 1-120% of each range (rms). 200% of each range (peak)
Display Range 0.15 - 130% of each range
Crest Factor 3 or less
Sampling Speed of Voltage Transient 2.4μs
Current (RMS)
Range 8128 (50A type) :5/50A/AUTO
8127 (100A type) :10/100A/AUTO
8126 (200A type) :20/200A/AUTO
8125 (500A type) :50/500A/AUTO
8124/8130 (1000A type) :100/1000A/AUTO
8146/8147/8148 (10A type) :1/10A/AUTO
8129 (3000A type) :300/1000/3000A
Accuracy ±0.2%rdg±0.2%f.s.+accuracy of clamp sensor (sine wave, 40~70Hz)
Allowable Input 1~110% of each range (rms). 200% of each range (peak)
Display Range 0.15 - 130% of each range
Crest Factor 3 or less
Active Power
Accuracy ±0.3%rdg±0.2%f.s. + accuracy of clamp sensor (power factor 1, sine wave, 40~70Hz)
Influence of Power Factor ±1.0%rdg (reading at power factor 0.5 against power factor 1)
Other Specs
Frequency Meter Range 40 to 70Hz
Power Supply (AC Line) AC100 - 240V/50-60Hz/7VA max
Power Supply (DC Battery) Alkaline size AA battery LR6 or Ni-MH (HR15-51) x 6
Battery life approx 3h (LR6, backlight off)
Internal Memory Flash memory (4MB)
PC Card Interface SD Card (2GB)
PC Communication Interface USV Ver 2.0, Bluetooth Ver 2.1 + EDR Class 2
Display 320 x 240 (RGB) pixel, 3.5" colour TFT display
Display Update Period 1 sec
Temperature and Humidity Range 23±5℃,less than 85% RH(without condensation)
Operating Temperature and Humidity Range 0~45℃,leaa than 85% RH(without condensation)
Storage Temperature and Humidity Range -20~60℃,less than 85% RH(without condensation)
Applicable Standards IEC61010-1 CATⅣ 300V, CATⅢ 600V,
CATⅡ 1000V Pollution degree 2
IEC61010-2-030, IEC61010-031, IEC61326, EN50160
IEC61000-4-30 Class S, IEC61000-4-15, IEC61000-4-7
Dimensions/Weight 175(L) × 120(W) × 68(D) mm/approx 900g
