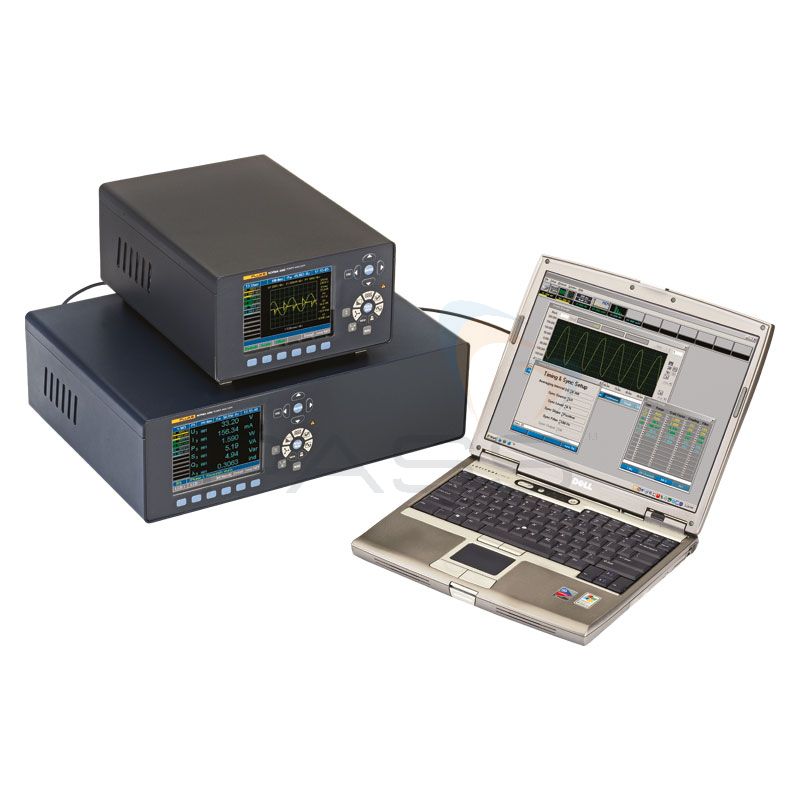

The Fluke N4K 1PP42 1 PH N4k power analyzer w/42 is a desktop device that is ideal for testing electric motors and inverter drive systems, lighting systems, automotive equipment, transformers and more. The Fluke tester is based on a Fluke-only, patented high-bandwidth architecture, which allows it to provide consistently high accuracy measurements of single and three-phase current and voltage systems.
It can also provide harmonics analysis, calculations of power and FFT analysis, and has a compact design that’s combined with durability.
This box-shaped device offers a 5.7-inch screen and single phase performance with a PP43 power phase input section. It’s a laboratory-grade device that is particularly useful for engineers that work with large and expensive pieces of equipment.
The Fluke tester comes with all you need to get it up and running straight out of the box. For instance, you will be provided with the necessary power supply cables and test leads, as well as a user manual that makes it easy for you to get to grips with the buttons on the front which controls the settings of the device.
Naturally, Fluke included USB connectivity as well so that once you have finished performing your analysis, you can ensure that your computer’s database is kept up to date. Simply plug in the device and you will be able to transfer all your data straight over onto your computer software systems.
Specifications
General
- Number of Phases Fluke Norma 4000: 1 to 3
- Weight Fluke Norma 4000: Approx. 5 kg (11 lb.)
- Size Fluke Norma 4000: 150 mm x 237 mm x 315 mm (5.9 in x 9.3 in x 12.4 in)
- On-board Printer Fluke Norma 4000:
- Display Color, 5.7“ / 144 mm - 320 x 240 pixel User-selectable background lighting and contrast.
- Bandwidth dc to 3MHz or dc to 10MHz depending on input module
- Basic Accuracy 0.2%, 0.1% or 0.03% depending on input modules
- Sampling Rate 0.33 MHz or 1 MHz depending on input modules
- Voltage Input Range 0.3 V to 1000 V
- Current Input Range (direct, not via shunt) 0.03 mA to 20 A depending on input module
- Memory for Configurations 4 MB
- Memory for Settings 0.5 MB
- Fast Fourier Transformation (FFT) To the 40th harmonic
- RS232/USB Interface Standard
- PI1 Process interface (8 analog/impulse inputs and 4 analog outputs) Optional
- IEEE 488.2/GPIB interface (1 MBit/s Ethernet / 10 MBit/s or 100 MBit/s) Optional
- Fluke NormaView PC software (for data download, analysis & report writing) Standard
Basic Functions
- Fast Fourier Transformation (FFT) Calculation of harmonics with graphical representation. Up to 3 bar graphs are displayed at the same time.
- Measured values: U, I, P per phase, order: 1st to 40th harmonics, maximum half sample frequency
- Digital Oscilloscope (DSO) Simultaneous display of up to 3 measured values on sample level. Quick view of curve form and distortion.
- Integration function (energy) Simultaneous display of up to 6 configurable numeric values. Start/Stop conditions and positive negative direction available.
- Vector Display Vector display of HO1 up to 6 signals. For easy testing of the right connection of the instrument and quick overview of the phase angle of each signal.
- Recorder Display of average values over time for trend determination.
- RAM data memory Storing of sample and average values; setting of start and stop conditions. From the RAM approximately 4 MB are available for the storage of measured values.
- Configuration Set up the analyzer to measure and display data in the format required.
Ambient Conditions
- Working Temperature Range 5 °C to 35 °C (41 °F to 95 °F)
- Storage Temperature Range -20 °C to 50 °C (-4 °F to 122 °F)
- Housing Material Fluke Norma Power Analyzers are extremely compact and equipped with a solid metal case to meet stringent EMC requirements.
- Climatic Class KYG DIN 40040, max. 85 % relative humidity, non-condensing.
- Power supply 85 V ac to 264 V ac, 50 Hz to 60 Hz, dc 100 to 260 V, ca. 40 VA European plug with switch. Binding post for current available on some models.
- Measuring Inputs Safety sockets 4 mm, 2 for each input. External shunt connection over BNC socket.
- Operation Membrane keyboard with cursor – function keys and direct functions.
- Connections Rear panel of the 3-phase Analyzer
Frequency and Synchronization
- Range DC and 0.2 Hz to sample rate
- Accuracy ±0.01 % of measured value (reading)
Standards and Safety
- Electrical Safety EN 61010-1 / 2nd Edition 1000 V CAT II (600V CAT III), Degree of pollution 2, safety Class I, EN 61558 for transformer, EN 61010-2-031/032 for accessories
- Maximum inputs For voltage inputs Measurement range 1000 Veff, 2 kVpeak, For current inputs Measurement range 10 Aeff, 20 Apeak
- Test voltage Net input case (protective conductor): 1.5 KV AC Net connection Measurement input: 5.4 kV AC Measurement inputs Case: 3.3 kV AC Measurement input input: 5.4 kV
- Electromagnetic susceptibility Emission: IEC 61326-1, EN 50081-1, EN 55011 Class B Immunity: IEC 61326-1 / Annex A (industrial sector), EN 50082-1
Power Phases
The Fluke Norma 4000 Power Analyzer can be equipped with up to three power phases and the Fluke Norma 5000 Power Analyzer can be equipped with up to six power phases. Users can select the power phase best suited for their application. Specifications vary depending on the model of the power phase. Each modular plug-in power phase consists of a voltage and a current measurement channel. Each measuring channel is available for each basic unit, however only one kind of channel can be used per unit. Check standard configurations.
Power Phase Channels
PP42 Accuracy: 0.2% (0.1% rd + 0.1 % rg) Current range: 20 A Sampling rate: 341 kHz Bandwidth: 3 MHz
PP50 Accuracy: 0.1% (0.05% rd + 0.05 % rg) Current range: 10 A Sampling rate: 1 MHz Bandwidth: 10 MHz
PP54 Accuracy: 0.1% (0.05% rd + 0.05 % rg) Current range: 10 A Sampling rate: 341 kHz Bandwidth: 3 MHz
PP64 Accuracy: 0.03% (0.02% rg + 0.01% rg) Current range: 10 A Sampling rate: 341 kHz Bandwidth: 3 MHz
