The Norma 5000 six-phase analysers provide reliable, highly accurate measurements for the test and development of power electronics. The latest measurement technology is delivered to assist engineers with the development and testing of motors, inverters, lighting, power supplies, transformers, and automotive components. Based on a patented, high-bandwidth architecture, the instruments deliver high-precision measurements of six-phase current and voltage, harmonics analysis, Fast Fourier Transformation (FFT) analysis, as well as calculations of power and other derived values.

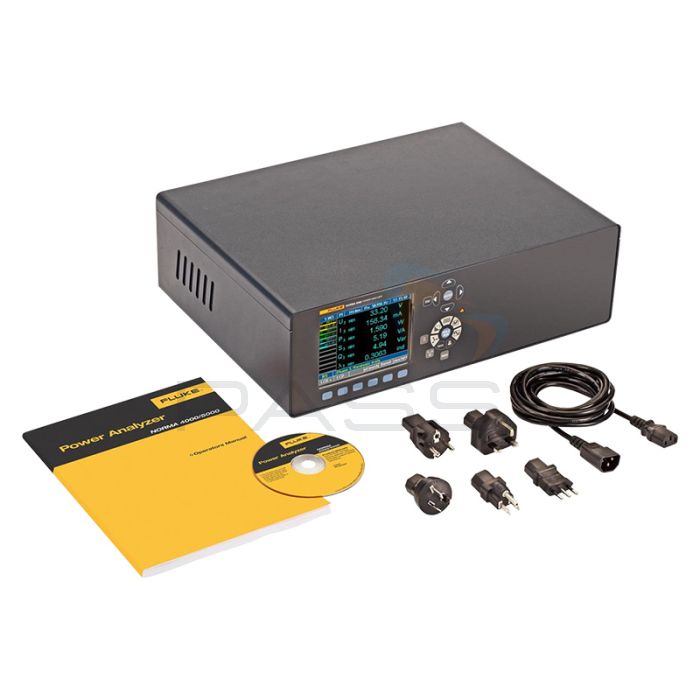

The Fluke Norma 5000 Six-Phase Power Analyzer is a rugged, high-precision analyzer providing unmatched price performance for easy and reliable use in the field, or as a bench unit in laboratories and on test benches.
| 6PP42IB | 6PP42IBR | 6PP50I | 6PP50IP | 6PP50IPR | 6PP50IR | 6PP54I | 6PP54IP | 6PP54IPR | 6PP54IR | 6PP64I | 6PP64IP | 6PP64IR | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| General Specifications | |||||||||||||
| Number of Phases | 6 | ||||||||||||
| Weight | Approx. 5 kg (11 lb) | ||||||||||||
| Size | 150 x 237 x 315 mm | ||||||||||||
| On-board Printer | No | Yes | No | Yes | No | Yes | No | Yes | |||||

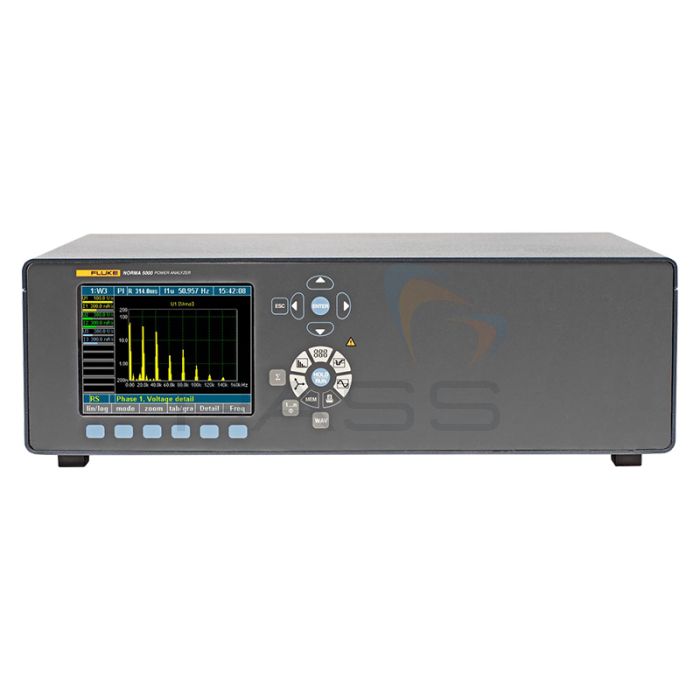

| Display | Colour, 5.7 in / 144 mm - 320 x 240 pixel | ||||||||||||
| User-selectable background lighting and contrast | |||||||||||||
| Bandwidth | DC to 3 MHz or DC to 10 MHz depending on the input module | ||||||||||||
| Basic Accuracy | 0.2%, 0.1%, or 0.03% depending on the input modules | ||||||||||||
| Sampling Rate | 0.33 MHz or 1 MHz depending on the input modules | ||||||||||||
| Voltage Input Range | 0.3 V to 1000 V | ||||||||||||
| Current Input Range (direct, not via a shunt) | 0.03 mA to 20 A depending on the input module | ||||||||||||
| Memory for Configurations | 4 MB | ||||||||||||
| Memory for Settings | 0.5 MB | ||||||||||||
| Fast Fourier Transformation (FFT) | To the 40th harmonic | ||||||||||||
| RS232/USB Interface | Standard | ||||||||||||
| PI1 Process interface (8 analog/impulse inputs and 4 analog outputs) | No | Yes | No | Yes | No | Yes | No | ||||||
| Basic Functions | |||||||||||||
| Fast Fourier Transformation (FFT) | Calculation of harmonics with graphical representation. Up to 3 bar graphs are displayed at the same time. | ||||||||||||
| Measured values: U, I, P per phase | |||||||||||||
| Order: 1st to 40th harmonics, maximum half sample frequency | |||||||||||||
| Digital Oscilloscope (DSO) | Simultaneous display of up to 3 measured values on sample level. Quick view of curve form and distortion | ||||||||||||
| Integration function (energy) | Simultaneous display of up to 6 configurable numeric values. Start/Stop conditions and positive negative direction available | ||||||||||||
| Vector Display | Vector display of HO1 up to 6 signals. For easy testing of the right connection of the instrument and a quick overview of the phase angle of each signal | ||||||||||||
| Recorder | Display of average values over time for trend determination | ||||||||||||
| RAM data memory | Storing of sample and average values; setting of start and stop conditions | ||||||||||||
| From the RAM approximately 4 MB are available for the storage of measured values | |||||||||||||
| Configuration | Set up the analyser to measure and display data in the format required | ||||||||||||
| Ambient Conditions | |||||||||||||
| Working Temperature Range | 5°C to 35°C (41°F to 95°F) | ||||||||||||
| Storage Temperature Range | -20°C to 50°C (-4°F to 122°F) | ||||||||||||
| Housing Material | Fluke Norma Power Analyzers are extremely compact and equipped with a solid metal case to meet stringent EMC requirements | ||||||||||||
| Climatic Class | KYG DIN 40040, max. 85% relative humidity, non-condensing | ||||||||||||
| Power supply | 85 V AC to 264 V AC, 50 Hz to 60 Hz, DC 100 to 260 V, ca. 40 VA European plug with switch. | ||||||||||||
| Measuring Inputs | Safety sockets 4 mm, 2 for each input. External shunt connection over BNC socket | ||||||||||||
| Operation | Membrane keyboard with cursor, function keys, and direct functions | ||||||||||||

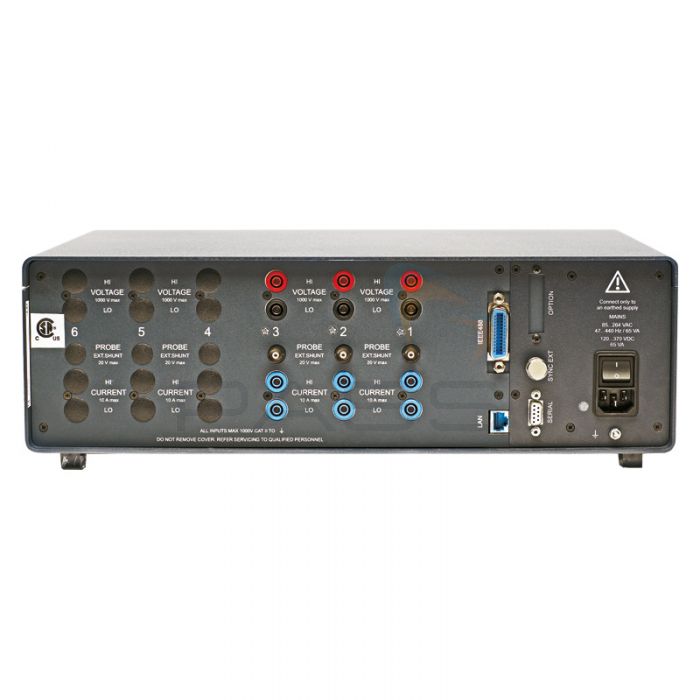

| Connections | Rear panel of the Analyser | ||||||||||||
| Frequency and Synchronization | |||||||||||||
| Range | DC and 0.2 Hz to sample rate | ||||||||||||
| Accuracy | ±0.01% of measured value (reading) | ||||||||||||
| Configuration Memory | Up to 15 user configurations can be saved into a permanent memory and reloaded later on. Changes that were not saved are lost after switching off the instrument | ||||||||||||
| Interface | RS232 interface for upload of firmware and data exchange with the PC. A printer can be connected over an external converter | ||||||||||||
| Standards and Safety | |||||||||||||
| Electrical Safety | EN 61010-1 / 2nd Edition 1000 V CAT II (600V CAT III) | ||||||||||||
| Degree of pollution 2, safety Class I | |||||||||||||
| EN 61558 for transformer | |||||||||||||
| EN 61010-2-031/032 for accessories | |||||||||||||
| Maximum inputs | For voltage inputs Measurement range 1000 Veff, 2 kVpeak | ||||||||||||
| For current inputs Measurement range is 10 Aeff, 20 Apeak | |||||||||||||
| Test voltage | |||||||||||||
| Net input | Case (protective conductor): 1.5 KV AC | ||||||||||||
| Net connection | Measurement input: 5.4 kV AC | ||||||||||||
| Measurement inputs | Case: 3.3 kV AC | ||||||||||||
| Measurement input | input: 5.4 kV | ||||||||||||
| Electromagnetic susceptibility | |||||||||||||
| Emission | IEC 61326-1, EN 50081-1, EN 55011 Class B | ||||||||||||
| Immunity | IEC 61326-1 / Annex A (industrial sector), EN 50082-1 | ||||||||||||
