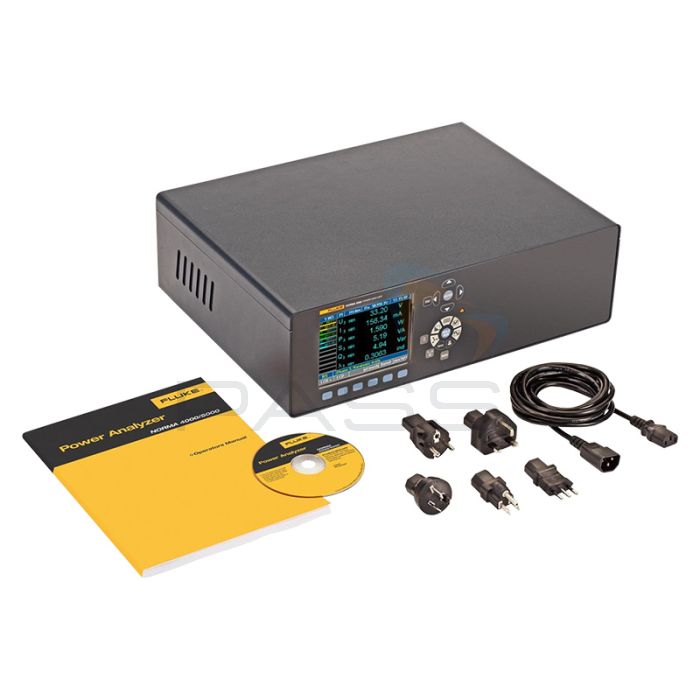

Fluke N5K-3X Norma 5000 Three Phase Power Analyser - Choice of Module

27,776£

(Available)
Quantity

SKU:

Categories: Electrical Testing Equipment

Description

The Norma 5000 three-phase analysers provide reliable, highly accurate measurements for the test and development of power electronics. The latest measurement technology is delivered to assist engineers with the development and testing of motors, inverters, lighting, power supplies, transformers, and automotive components. Based on a patented, high-bandwidth architecture, the instruments deliver high-precision measurements of three-phase current and voltage, harmonics analysis, Fast Fourier Transformation (FFT) analysis, as well as calculations of power and other derived values.

The Fluke Norma 5000 Six-Phase Power Analyzer is a rugged, high-precision analyzer providing unmatched price performance for easy and reliable use in the field, or as a bench unit in laboratories and on test benches.

Key Features

  • Simultaneous parallel acquisition of all phases
  • Compact design makes it easy to carry and saves working space
  • Galvanically-isolated inputs to avoid short circuits
  • FFT analysis, vector diagram, and digital oscilloscope (DSO) mode
  • User-selectable average time—from 15 ms up to 3600 s—for dynamic measurements
  • 4 MB on-board memory (expandable to 128 MB) for storing measured values
  • Fast and easy connection to a PC
  • RS232 and USB included as standard
  • PI1 process interface to measure torque and speed with external sensors
  • Four analog outputs for easy use on motor and drive applications
  • 341 kHz or 1 MHz sample rates for detailed signal analysis
  • Bandwidth from DC to 3 MHz or DC to 10 MHz for reliable measurement precision
  • Fluke NormaView PC software for data download, analysis, and reporting

Product Range

  • Fluke N5K 3PP50I 3 Phase Power Analyzer with 50/IFC2
  • Fluke N5K 3PP50IP 3 Phase Power Analyzer with 50/IFC2 & PI1
  • Fluke N5K 3PP54 3 Phase Power Analyzer with 54
  • Fluke N5K 3PP54I 3 Phase Power Analyzer with 54/IFC2
  • Fluke N5K 3PP54IP 3 Phase Power Analyzer with 54/IFC2 & PI1
  • Fluke N5K 3PP54IR 3 Phase Power Analyzer with 54/IFC2/Printer
  • Fluke N5K 3PP54R 3 Phase Power Analyzer with 54/Printer
  • Fluke N5K 3PP64 3 Phase Power Analyzer with 64
  • Fluke N5K 3PP64I 3 Phase Power Analyzer with 64/IFC2
  • Fluke N5K 3PP64IP 3 Phase Power Analyzer with 64/IFC2 & PI1
  • Fluke N5K 3PP64IPR 3 Phase Power Analyzer with 64/IFC2/PI1/Printer
  • Fluke N5K 3PP64IR 3 Phase Power Analyzer with 64/IFC2/Printer
  • Fluke N5K 3PP64R 3 Phase Power Analyzer with 64/Printer
  • Fluke N5K 3PP50IR 3 Phase Power Analyzer with 50/IFC2/Printer
Tech Specs
  3PP50I 3PP50IP 3PP54 3PP54I 3PP54IP 3PP54IR 3PP54R 3PP64 3PP64I 3PP64IP 3PP64IPR 3PP64IR 3PP64R 3PP50IR
General Specifications
Number of Phases 3
Weight Approx. 5 kg (11 lb)
Size 150 x 237 x 315 mm
On-board Printer No Yes No Yes
Display Colour, 5.7 in / 144 mm - 320 x 240 pixel
User-selectable background lighting and contrast
Bandwidth DC to 3 MHz or DC to 10 MHz depending on the input module
Basic Accuracy 0.2%, 0.1%, or 0.03% depending on the input modules
Sampling Rate 0.33 MHz or 1 MHz depending on the input modules
Voltage Input Range 0.3 V to 1000 V
Current Input Range (direct, not via a shunt) 0.03 mA to 20 A depending on the input module
Memory for Configurations 4 MB
Memory for Settings 0.5 MB
Fast Fourier Transformation (FFT) To the 40th harmonic
RS232/USB Interface Standard
PI1 Process interface (8 analog/impulse inputs and 4 analog outputs) No Yes No Yes No Yes No
Basic Functions
Fast Fourier Transformation (FFT) Calculation of harmonics with graphical representation. Up to 3 bar graphs are displayed at the same time.
Measured values: U, I, P per phase
Order: 1st to 40th harmonics, maximum half sample frequency
Digital Oscilloscope (DSO) Simultaneous display of up to 3 measured values on sample level. Quick view of curve form and distortion
Integration function (energy) Simultaneous display of up to 6 configurable numeric values. Start/Stop conditions and positive negative direction available
Vector Display Vector display of HO1 up to 6 signals. For easy testing of the right connection of the instrument and a quick overview of the phase angle of each signal
Recorder Display of average values over time for trend determination
RAM data memory Storing of sample and average values; setting of start and stop conditions
From the RAM approximately 4 MB are available for the storage of measured values
Configuration Set up the analyser to measure and display data in the format required
Ambient Conditions
Working Temperature Range 5°C to 35°C (41°F to 95°F)
Storage Temperature Range -20°C to 50°C (-4°F to 122°F)
Housing Material Fluke Norma Power Analyzers are extremely compact and equipped with a solid metal case to meet stringent EMC requirements
Climatic Class KYG DIN 40040, max. 85% relative humidity, non-condensing
Power supply 85 V AC to 264 V AC, 50 Hz to 60 Hz, DC 100 to 260 V, ca. 40 VA European plug with switch.
Measuring Inputs Safety sockets 4 mm, 2 for each input. External shunt connection over BNC socket
Operation Membrane keyboard with cursor, function keys, and direct functions
Connections Rear panel of the 3-phase Analyser
Frequency and Synchronization
Range DC and 0.2 Hz to sample rate
Accuracy ±0.01% of measured value (reading)
Configuration Memory Up to 15 user configurations can be saved into a permanent memory and reloaded later on. Changes that were not saved are lost after switching off the instrument
Interface RS232 interface for upload of firmware and data exchange with the PC. A printer can be connected over an external converter
Standards and Safety
Electrical Safety EN 61010-1 / 2nd Edition 1000 V CAT II (600V CAT III)
Degree of pollution 2, safety Class I
EN 61558 for transformer
EN 61010-2-031/032 for accessories
Maximum inputs For voltage inputs Measurement range 1000 Veff, 2 kVpeak
For current inputs Measurement range is 10 Aeff, 20 Apeak
Test voltage
Net input Case (protective conductor): 1.5 KV AC
Net connection Measurement input: 5.4 kV AC
Measurement inputs Case: 3.3 kV AC
Measurement input input: 5.4 kV
Electromagnetic susceptibility
Emission IEC 61326-1, EN 50081-1, EN 55011 Class B
Immunity IEC 61326-1 / Annex A (industrial sector), EN 50082-1
