Fluke N4K 3PP54IP Norma 5000 Three Phase Power Analyser

28,600£

(Available)
Quantity

SKU:

Categories: Electrical Testing Equipment

This version of the Fluke Norma 5000 comes as standard with 3 x PP54 power phase input modules, an IEEE488/Ethernet interface and analogue/digital output channels.

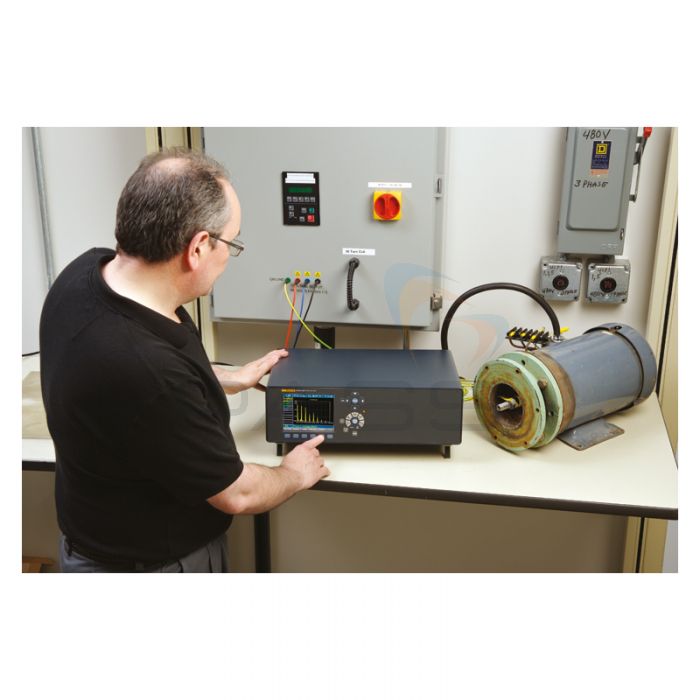

Fluke's Norma 5000 is one of the most advanced power quality analysers on the market. With extremely high bandwidth, the latest measurement technology and several useful advanced features built-in, these power instruments are ideal for use on motors, inverters, lighting, power supplies, transformers, automotive components and wherever else power quality needs to be quantified.

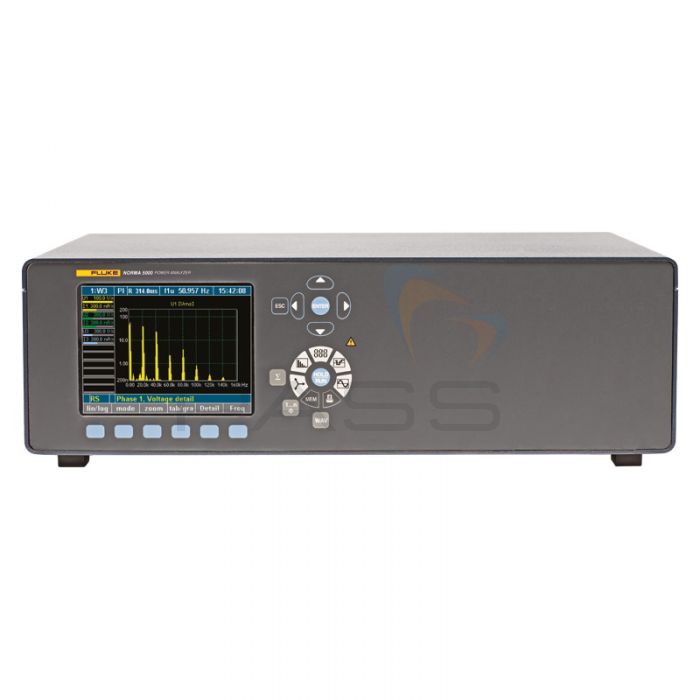

The Fluke Norma 5000 is built with high bandwidth built-in, making it suitable for the development of frequency converters and lighting equipment. It can test all aspects of power, including voltage, current and power harmonics to the 40th, can perform FFT analysis with vector diagram display and even includes an integrated digital oscilloscope for simultaneous display of up to 3 measured values with quick view of waveform/distortion.

This power analyser can interface directly with a PC for further analysis of data using Fluke's included software package.

Fluke Norma 5000 Three Phase Power Analyser Key Features

  • Compact, high precision design - easy to carry and perfect for use in busy labs and other environments
  • Designed for ease of use - simple user interface makes adjusting and using the various functions as simple as possible
  • Standard configurations allow users to specific the exact functionality required for their own unique application
  • Galvanically-isolated inputs avoid short circuits
  • Three phase instruments with dynamic events - shows all phase events simultaneously with parallel acquisition
  • Voltage, current and power harmonics up to the 40th
  • FFT (Fast Fourier Transformation) function - calculates harmonics with graphical respresentation
  • Recorder function and digital oscilloscope built in
  • User-selectable average time - adjust from 15ms to 3600s
  • Integrated memory for storage of measured values
  • RS232, USB and IEEE 488/Ethernet interfaces included
  • 341kHz or 1MHz sample rates for detailed signal analysis
  • High bandwidth from DC to 3MHz to 10MHz

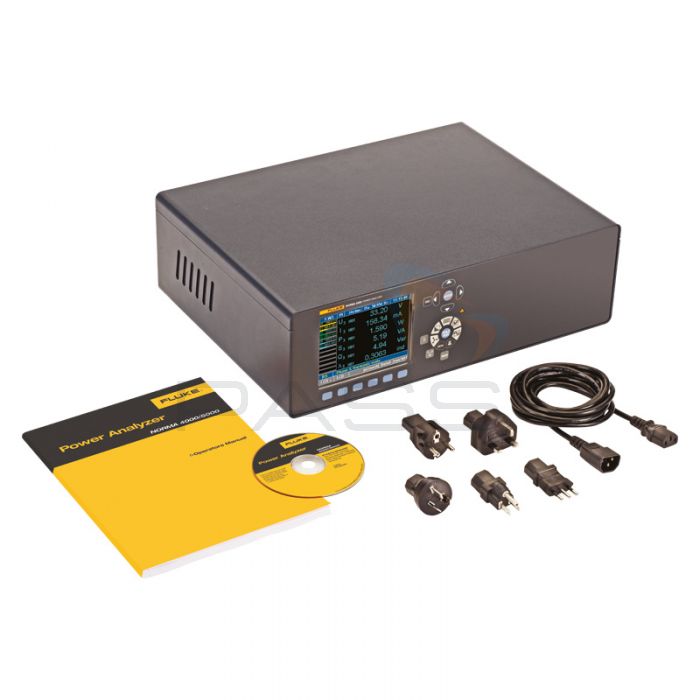

What's Included?

  • Fluke Norma 5000 Power Analyser w/ Ethernet Interface and Analogue/Digital Channels
  • Power Supply Cable
  • Internal Printer
  • Fluke NormaView PC Software
  • User Manual
  • Test Certificate
  • Calibration Values

Specifications

General

  • Number of Phases Fluke Norma 4000: 1 to 3
  • Weight Fluke Norma 4000: Approx. 5 kg (11 lb.)
  • Size Fluke Norma 4000: 150 mm x 237 mm x 315 mm (5.9 in x 9.3 in x 12.4 in)
  • On-board Printer Fluke Norma 4000:
  • Display Color, 5.7“ / 144 mm - 320 x 240 pixel User-selectable background lighting and contrast.
  • Bandwidth dc to 3MHz or dc to 10MHz depending on input module
  • Basic Accuracy 0.2%, 0.1% or 0.03% depending on input modules
  • Sampling Rate 0.33 MHz or 1 MHz depending on input modules
  • Voltage Input Range 0.3 V to 1000 V
  • Current Input Range (direct, not via shunt) 0.03 mA to 20 A depending on input module
  • Memory for Configurations 4 MB
  • Memory for Settings 0.5 MB
  • Fast Fourier Transformation (FFT) To the 40th harmonic
  • RS232/USB Interface Standard
  • PI1 Process interface (8 analog/impulse inputs and 4 analog outputs) Optional
  • IEEE 488.2/GPIB interface (1 MBit/s Ethernet / 10 MBit/s or 100 MBit/s) Optional
  • Fluke NormaView PC software (for data download, analysis & report writing) Standard

Basic Functions



  • Fast Fourier Transformation (FFT) Calculation of harmonics with graphical representation. Up to 3 bar graphs are displayed at the same time.
  • Measured values: U, I, P per phase, order: 1st to 40th harmonics, maximum half sample frequency
  • Digital Oscilloscope (DSO) Simultaneous display of up to 3 measured values on sample level. Quick view of curve form and distortion.
  • Integration function (energy) Simultaneous display of up to 6 configurable numeric values. Start/Stop conditions and positive negative direction available.
  • Vector Display Vector display of HO1 up to 6 signals. For easy testing of the right connection of the instrument and quick overview of the phase angle of each signal.
  • Recorder Display of average values over time for trend determination.
  • RAM data memory Storing of sample and average values; setting of start and stop conditions. From the RAM approximately 4 MB are available for the storage of measured values.
  • Configuration Set up the analyzer to measure and display data in the format required.



Ambient Conditions



  • Working Temperature Range 5 °C to 35 °C (41 °F to 95 °F)
  • Storage Temperature Range -20 °C to 50 °C (-4 °F to 122 °F)
  • Housing Material Fluke Norma Power Analyzers are extremely compact and equipped with a solid metal case to meet stringent EMC requirements.
  • Climatic Class KYG DIN 40040, max. 85 % relative humidity, non-condensing.
  • Power supply 85 V ac to 264 V ac, 50 Hz to 60 Hz, dc 100 to 260 V, ca. 40 VA European plug with switch. Binding post for current available on some models.
  • Measuring Inputs Safety sockets 4 mm, 2 for each input. External shunt connection over BNC socket.
  • Operation Membrane keyboard with cursor – function keys and direct functions.

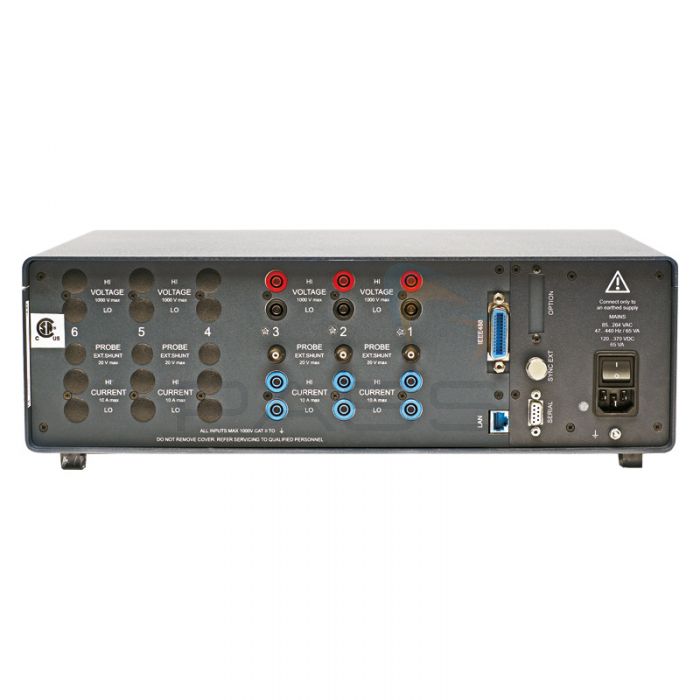

  • Connections Rear panel of the 3-phase Analyzer



Frequency and Synchronization



  • Range DC and 0.2 Hz to sample rate
  • Accuracy ±0.01 % of measured value (reading)



Standards and Safety

  • Electrical Safety EN 61010-1 / 2nd Edition 1000 V CAT II (600V CAT III), Degree of pollution 2, safety Class I, EN 61558 for transformer, EN 61010-2-031/032 for accessories
  • Maximum inputs For voltage inputs Measurement range 1000 Veff, 2 kVpeak, For current inputs Measurement range 10 Aeff, 20 Apeak
  • Test voltage Net input case (protective conductor): 1.5 KV AC Net connection Measurement input: 5.4 kV AC Measurement inputs Case: 3.3 kV AC Measurement input input: 5.4 kV
  • Electromagnetic susceptibility Emission: IEC 61326-1, EN 50081-1, EN 55011 Class B Immunity: IEC 61326-1 / Annex A (industrial sector), EN 50082-1



Power Phases



The Fluke Norma 4000 Power Analyzer can be equipped with up to three power phases and the Fluke Norma 5000 Power Analyzer can be equipped with up to six power phases. Users can select the power phase best suited for their application. Specifications vary depending on the model of the power phase. Each modular plug-in power phase consists of a voltage and a current measurement channel. Each measuring channel is available for each basic unit, however only one kind of channel can be used per unit. Check standard configurations.



Power Phase Channels



PP42 Accuracy: 0.2% (0.1% rd + 0.1 % rg) Current range: 20 A Sampling rate: 341 kHz Bandwidth: 3 MHz

PP50 Accuracy: 0.1% (0.05% rd + 0.05 % rg) Current range: 10 A Sampling rate: 1 MHz Bandwidth: 10 MHz

PP54 Accuracy: 0.1% (0.05% rd + 0.05 % rg) Current range: 10 A Sampling rate: 341 kHz Bandwidth: 3 MHz

PP64 Accuracy: 0.03% (0.02% rg + 0.01% rg) Current range: 10 A Sampling rate: 341 kHz Bandwidth: 3 MHz
