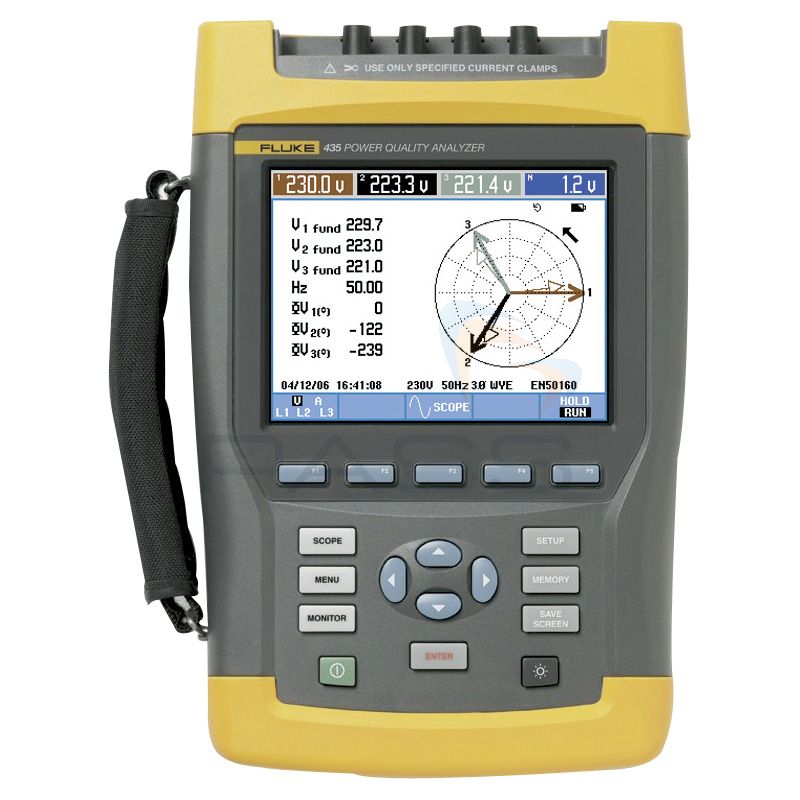

No more hidden problems and expensive downtime - with the Fluke 435 II power analyser, you can see exactly what's happening inside your essential electrical systems and take corrective action long before problems become serious issues.
Suitable for use with both three-phase and single-phase systems, the Fluke 435 II provides users with a comprehensive suite of power measurement functions at the press of a button, plus a dedicated energy loss monetisation calculator to make sure your systems are running at optimal efficiency.
The Fluke 435 II captures absolutely every aspect of your system to help you find the root of the problem. It can capture voltage, current and frequency, dips and swells, harmonics, power and energy, unbalance, inrush, event waveforms, flicker and transients and much more.
With the built-in energy loss calculator, it's possible to put a real value against how well your systems are running. The calculator uses active and reactive power measurements, unbalance and harmonic power measurements to calculate and display real system energy loss in several local currencies.

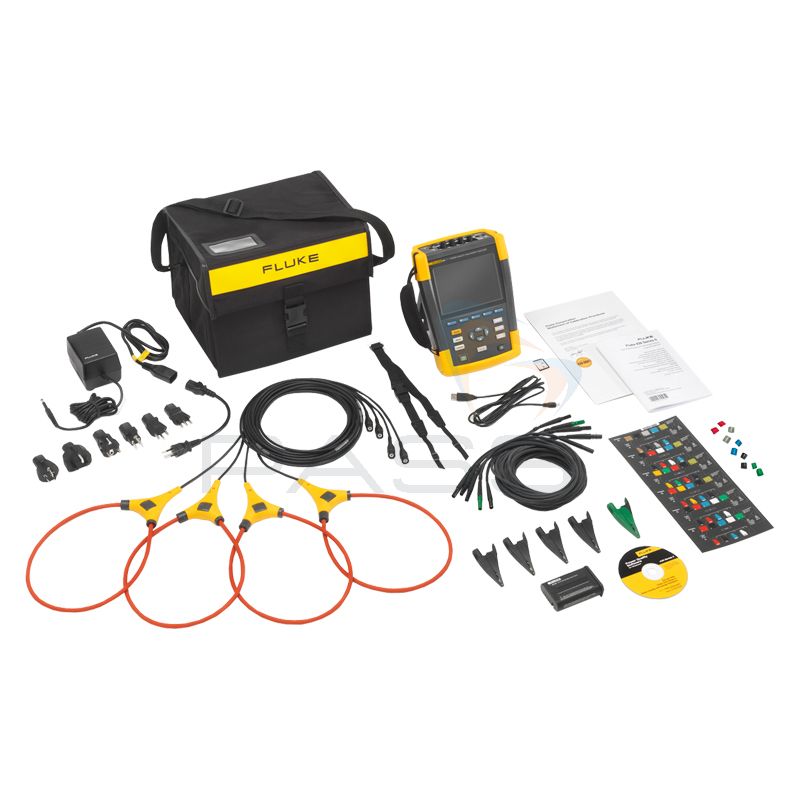

These are just a few of the features of the Fluke 435 II; this model is packed full of additional functions including four inputs for use with Fluke flexible current probes, PowerWave data capturing with fast RMS data and much more.
These are either not included with the product or are replacements for items included as standard. Please call us if you're interested in ordering any of these.
These specifications apply to all models in the Fluke 430-II series - 434 II, 435 II and 437 II - unless otherwise specified.
Further specifications are available in the attached datasheet.
| Input Characteristics | |
|---|---|
| Voltage Inputs | |
| Number of Inputs | 4 (3 phase and neutral) dc-coupled |
| Maximum Input Voltage | 1000Vrms |
| Nominal Voltage Range | Selectable - 1V to 1000V |
| Max Peak Measurement Voltage | 6kV (transient mode only) |
| Input Impedance | 4MΩ//5pF |
| Bandwidth | >10kHz, up to 100kHz for transient mode |
| Scaling | 1:1, 10:1, 100:1, 1000:1, 10000:1 and variable |
| Current Inputs | |
| Number of Inputs | 4 (3 phase and neutral) DC or AC coupled |
| Type | Clamp or current transformer with mV output or i430flex-TF |
| Range | 0.5A rms to 600A rms with included i430flex-TF (with sensitivity 10x) 5A rms to 6000A rms with included i430flex-TF (with sensitivity 1x) 0.1mV/A to 1V/A and custom for use with optional AC or DC clamps |
| Input Impedance | 1MΩ |
| Bandwidth | >10kHz |
| Scaling | 1:1. 10:1, 100:1, 1000:1, 10000:1 and variable |
| Sampling System | |
| Resolution | 16 bit analogue to digital converter on 8 channels |
| Maximum Sampling Speed | 200ks/s on each channel simultaneously |
| RMS Sampling | 5000 samples on 10/12 cycles according to IEC61000-4-30 |
| PLL Synchronisation | 4096 samples on 10/12 cycles according to IEC61000-4-7 |
| Nominal Frequency | 434-II and 435-II: 50/60Hz 437-II: 50Hz, 60Hz and 400Hz |
| Display Modes | |
| Waveform Display | Available in all modes via SCOPE key 435-II and 437-II: Default display mode for Transients function Update rate 5x per second Displays 4 cycles of waveform data on screen, up to 4 waveforms simultaneously |
| Phasor Diagram | Available in all modes via Scope waveform display Default view for Unbalance mode |
| Meter Readings | Available in all modes except Monitor and Transients, provides tabulated view of all available readings Fully customizable up to 150 readings for Logger mode |
| Trend Graph | Available in all modes except Transients Single vertical cursor with min max and avg reading at cursor position |
| Bar Graph | Available in Monitor and Harmonics mode |
| Event List | Available in all modes Provides 50/60** cycles of waveform information and associated 1/2 cycle rms values for Volts and Amps |
