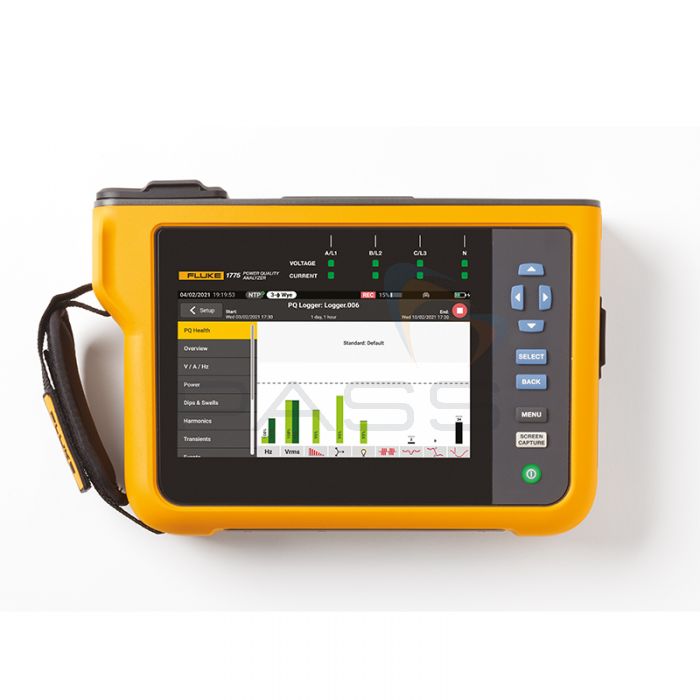

Fluke 1777 Three-Phase Power Quality Analyser – Choice of Kit

10,404£

(Available)
Quantity

SKU:

Categories: Electrical Testing Equipment

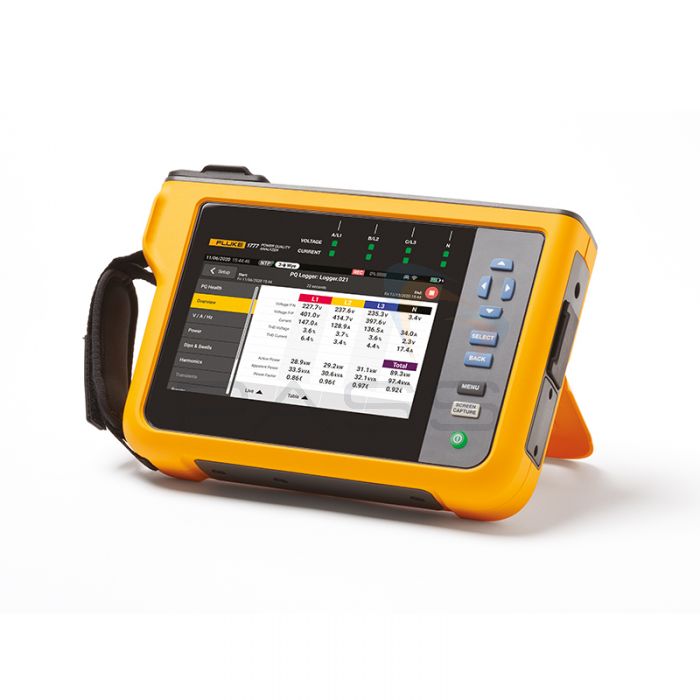

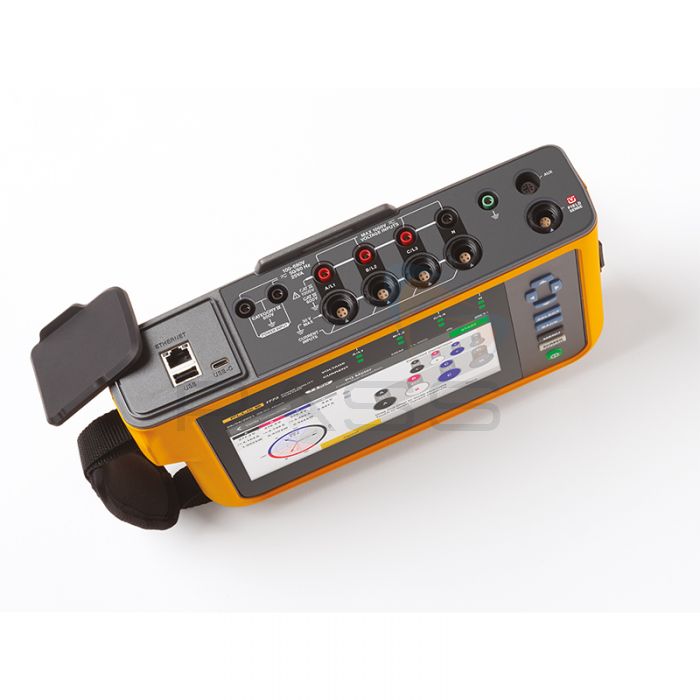

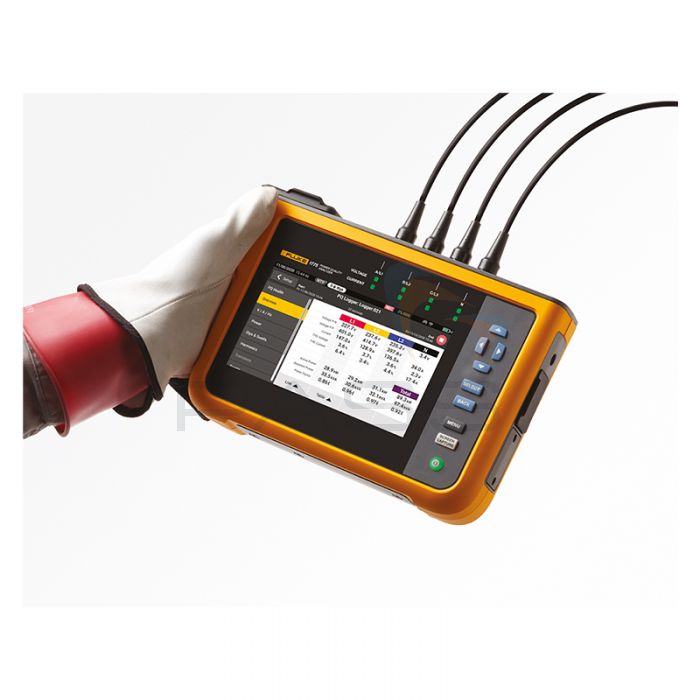

As Fluke’s top-of-the-range 1770 Series Three-Phase Power Quality Analyser, the Fluke 1777 Three-Phase Power Quality Analyser can measure over five hundred parameters, including harmonics, dips, swells, unbalance, voltage, current, and power, and offers high-speed transient capture up to 8kV with 1MS/s and 20MS/s sampling rates. Like the other models in this series, the Fluke 1777 Three-Phase Power Quality Analyser delivers a simplified reporting platform, easy-to-use interface, and automatic measurement capture technology.

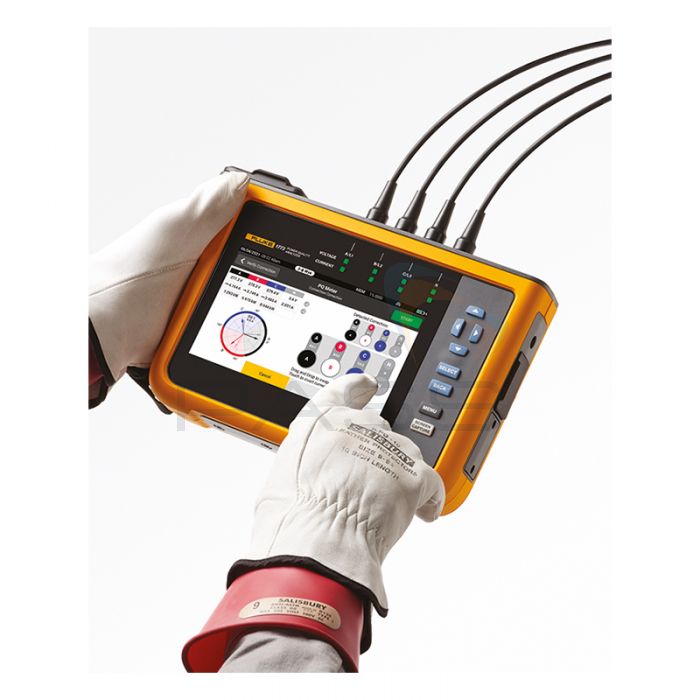

This two-in-one power quality analyser and power quality meter is ideal for energy surveys, load testing, harmonic surveys, nuisance circuit breaker tripping, power utility quality surveys, and discovering equipment failures caused by transients. An eclectic and comprehensive automatic measurement capture ensures you collect the correct data for the system you are working on whilst allowing you to alter and adjust parameters as necessary. A streamlined user interface makes it easy to swap between measurement parameters while guided setups, accessible via the PQ Logging and Analysis function, enable easy configuration and measurement selection. Additionally, guided setups digitally autocorrect connection errors without you having to make any physical probe alterations. Further to this, the Fluke 1777 Three-Phase Power Quality Analyser supports the creation of custom views allowing you to tailor the PQA to your application.

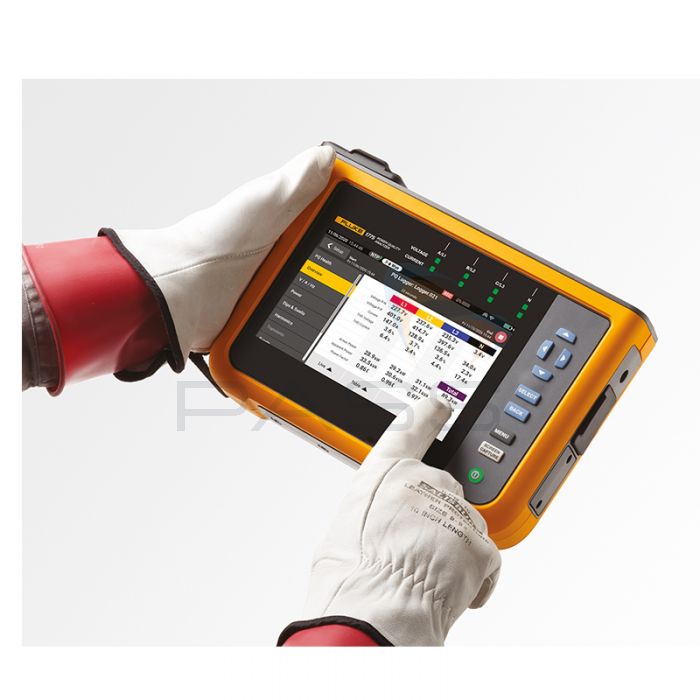

The Fluke 1777 Three-Phase Power Quality Analyser’s PQ Meter function provides immediate access to live data, allowing you to identify potential problems quickly while troubleshooting. Results and readings are visible on the Fluke 1777 Three-Phase Power Quality Analyser’s large, bright, touchscreen display; data can be transferred to a PC via a USB or Wi-Fi interface.

Once transferred to a PC, data can be viewed and shared using Fluke’s Energy Analyse Plus Software. This software can also be used to create customised and/or industry standard (EN50160/ IEEE 519/ GOST 33073) reports; it features a one-click function for creating industry-standard reports.

Finally, the Fluke 1777 Three-Phase Power Quality Analyser is not limited by the location of power outlets and/or the length of extension cords as it can be powered directly via the measurement circuit.

The Fluke 1777 Three-Phase Power Quality Analyser is a two-in-one power quality analyser and power quality meter that can be used to log and analyse data as well as troubleshoot issues.

Fluke 1777 Three-Phase Power Quality Analyser Key Features

  • A two-in-one power quality analyser and power quality meter
  • Log and analyse data
  • Troubleshoot electrical issues
  • Measures over five hundred parameters
  • Harmonics
  • Dips
  • Swells
  • Unbalance
  • Voltage
  • Current
  • Power
  • High-speed transient capture up to ±8kV
  • Transient capture sample rate: 1MS/s and 20 MS/s
  • Ideal for energy surveys, load testing, harmonic surveys, nuisance circuit breaker tripping, power utility power quality surveys, and uncovering equipment failures caused by transients
  • Automatic measurement capture
  • Streamlined user-interface
  • PQ Logging and Analysis function provides guided setups
  • Guided setups for easy configuration and measurement selection
  • Guided setups digitally autocorrect connection errors
  • Custom views: tailor the PQA to carry out tests and collect the data relevant to your application
  • PQ Meter function: provides immediate access to live data
  • Large, bright, touchscreen display
  • Transfer data to a PC without interrupting power quality and energy studies
  • Download data via a USB or Wi-Fi interface
  • Use Fluke’s Energy Analyse Plus Software to view and share results, and create customised and/or industry-standard reports
  • Power the PQA via the measurement circuit
  • Simplified reporting platform
  • Optimised for simplicity and efficiency
  • Ideal for troubleshooting electrical systems and power and energy logging

What’s Included?

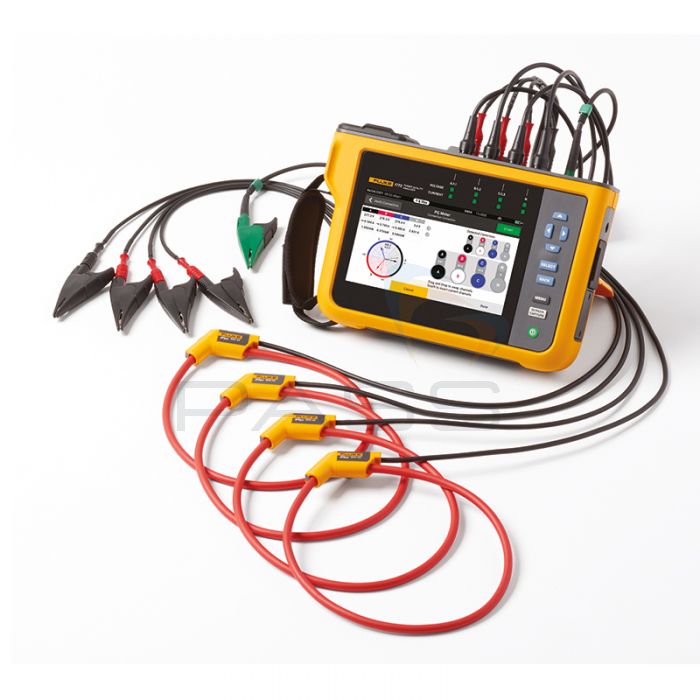

  • Fluke 1777 Three-Phase Power Quality Analyser
  • OPTIONAL 4x i17XX-FLEX1500 1500A Current Clamp (2m)
  • 1x FLUKE-17XX Flat Cable Voltage Test Lead
  • 4x AC285 Black Alligator Clip
  • 1x AC285 Green Alligator Clip
  • 1x USB-C Cable
  • 1x Line Cord
  • 1x FLK-17XX 0.18M Test Lead Set
  • 1x Green Test Lead
  • 1x MPI-3R/1B Magnet Probe Set (3x Red, 1x Black)
  • 1x FLUKE-174X-HANGER Kit
  • 1x FLUKE-177X-4204 WIFI/BLE Module
  • Cable Marker Set (For Voltage and Current)
  • FLUKE-174X-MA-C8 Wall Outlet Adapter
  • 1x Statement of Calibration Practices
  • 1x Fluke-1777 Hard Case

Kit Comparison

  FLUKE 1777 FLUKE 1777/BASIC

Fluke 1777 Three-Phase Power Quality Analyser

4x i17XX-FLEX1500 1500A Current Clamp (2m)

1x FLUKE-17XX Flat Cable Voltage Test Lead

4x AC285 Black Alligator Clip

1x AC285 Green Alligator Clip

1x USB-C Cable

1x Line Cord

1x FLK-17XX 0.18M Test Lead Set

1x Green Test Lead

1x MPI-3R/1B Magnet Probe Set (3x Red, 1x Black)

1x FLUKE-174X-HANGER Kit

1x FLUKE-177X-4204 WIFI/BLE Module

1x Cable Marker Set (For Voltage and Current)

1x FLUKE-174X-MA-C8 Wall Outlet Adapter

1x Statement of Calibration Practices

1x FLUKE-1777 Hard Case



Fluke 1770 Series Three-Phase Power Quality Analyser Comparison Chart

  1773 1775 1777
Max input voltage rms
1000Vac/1500Vdc
Voltage Channels / Amp
Channels
5/4 5/4 5/4
Flex 150/1500A 12” 4x
PQ Health (EN 50160)
DC voltage, DC current
(with optional clamps)
Live Scope/Phasor Diagram
Live Reading Trending
Internal Storage Memory
(External SD Slot)
8GB
(32GB
available)
8GB
(32GB
available)
8GB
(32GB
available)
Battery (swappable) 1hrs 1hrs 1hrs
Transients 20 MHz 8kV (Volt
only)
1MHz
sampling
20MHz
sampling
Event List
RMS profile capture and
Waveform data
Input 2x ac+dc 10V ****
IEC 61000-4-30 Class A Ed. 4 (Unreleased) Engineered to meet future Class
A Ed. 4 requirements
Harmonics 2-9 kHz (Volt and Amp)
Harmonics to 30kHz
Interval 200ms rms 3s
Harm.
Display 7” Touch
Ethernet/WiFi (2x)/BLE

(Wi-Fi optional)

Automatically powers from
measurement line
Connection verification and
autocorrection

Fluke 1770 Series Three-Phase Power Quality Analyser Technical Specifications

Voltage inputs
Number of inputs 4 inputs, 3 phases and neutral referenced to PE (5 connectors)
Measurement category 1000 V CAT III / 600 V CAT IV
Maximum input voltage 1000 V rms / 1000 V dc (1700 Vpk)
Nominal voltage range Wye and single phase: variable (50 V – 1000 V)
Delta: Variable (100 V – 1000 V)
IEC 61000-4-30 Class A compliance for the nominal voltages (Vdin) 100 V – 690 V
Input impedance 10 MΩ between P-P and P-N, 5 MΩ between P-PE and N-PE
Bandwidth DC to 30 kHz for PQ measurements, excluding transients
Resolution 24-bit synchronous sampling
Sampling frequency 80 kS/s at 50/60 Hz
Scaling 1:1, variable for use of potential transformers
Voltage transients
Measurement range ±8 kV
Sampling rate 1775: 1 MS/s
  1777: 1 MS/s, 20 MS/s
Bandwidth DC to 1 MHz
Trigger Adjustable trigger level. Triggers on high-frequency components > 1.5 kHz
Resolution 14-bit synchronous sampling
Current inputs
Number of inputs 4 inputs 3 phases and Neutral, range selected automatically to attached sensor
Range AC 1 A to 1500 A with i17XX-FLEX1500 12
1 A to 1500 A with i17XX-FLEX1500 24
3 A to 3000 A with i17XX-FLEX3000 24
6 A to 6000 A with i17XX-FLEX6000 36
40 mA to 40 A with clamp i40s-EL
4 A to 400 A with clamp i400s-EL
DC 20 A to 2000 A with 80i-2010-EL clamp
Bandwidth DC to 30 kHz
Resolution 24-bit synchronous sampling
Sampling frequency 80 kS/s at 50/60 Hz
Scaling 1:1, variable
Input voltage Clamp: 50 mV / 500 mV rms; CF 2.8
Rogowski Coil: 15 mV / 150 mV rms at 50 Hz, 18 mV / 180 mV rms at 60 Hz; CF 4 all at
nominal probe range
Input impedance 11 kΩ
