Fluke 1773 Three-Phase Power Quality Analyser - Choice of Kit

5,903£

(Available)
Quantity

SKU:

Categories: Electrical Testing Equipment

Fluke 1770 Series

Introducing the FLUKE 1770 Series Power Quality Analysers, the series comprises of 3 new models:

Fluke 1773 Power Quality Analyser - Entry-level model ideal for Energy surveys and load testing

Fluke 1775 Power Quality Analyser - Perfect for Energy surveys, load testing, Nuisance circuit breaker tripping, Power utility power quality surveys and discovery of equipment failures caused by transients

Fluke 1777 Power Quality Analyser - As Fluke 1775 plus performs the highest sampling capability of 20MHz to capture the fastest transients in high detail.

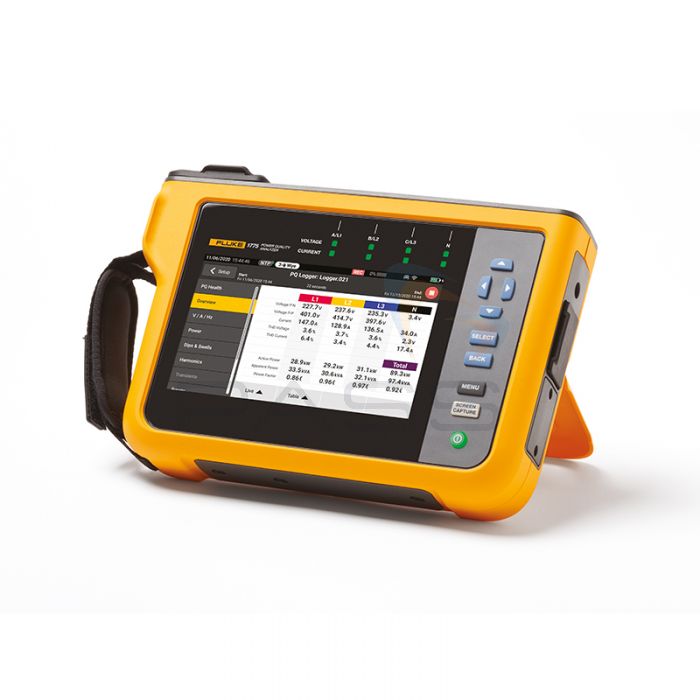

The Fluke 1773 Three-Phase Power Quality Analyser is a two-in-one power quality analyser and power quality meter capable of logging data, analysing measurements, and troubleshooting issues. The entry model in Fluke’s 1770 Series of PQAs, the Fluke 1773 Three-Phase Power Quality Analyser is ideal for energy surveys and load testing, as well as harmonic surveys.

Optimised for simplicity and efficiency, the Fluke 1773 Three-Phase Power Quality Analyser features an easy-to-use interface, a simplified reporting platform, and automatic measurement capture. The streamlined user interface makes it easy to navigate between measurement parameters. As default, the Fluke 1773 Three-Phase Power Quality Analyser captures over five hundred power quality parameters. Its automatic measurement system ensures you collect the right data while allowing you to select and adjust parameters as required.

Harmonics, dips, swells, unbalance, voltage, current, and power, are amongst the five-hundred parameters measured by the Fluke 1773 Three-Phase Power Quality Analyser. Its PQ Meter function provides immediate access to live data, allowing you to identify potential problems quickly while troubleshooting. Data is visible via the Fluke 1773 Three-Phase Power Quality Analyser’s large, bright, touchscreen display.

Additionally, a PQ Logging and Analysis function delivers guided setups making it easy for you to configure the Fluke 1773 Three-Phase Power Quality Analyser. Moreover, guided setups help with selecting the required parameters for the system you are working on and will autocorrect measurement connections digitally meaning you don’t have to change the physical probe connections. Furthermore, the Fluke 1773 Three-Phase Power Quality Analyser supports the creation of custom views allowing you to tailor the PQA to carry out the tests and collect the data relevant to your application.

Data can be transferred to a PC via a USB or OPTIONAL Wi-Fi interface without interrupting the power quality or energy study. Once transferred, the supplied Fluke Energy Analyse Plus Software can be used to view and share results as well as create customised reports. Alternatively, the software’s one-click reporting function can be used to create industry-standard reports (e.g. EN 50160, IEEE 519, and GOST 33073).

Easy-to-use, efficient, and equipped with an eclectic selection of measurement capabilities, the Fluke 1773 Three-Phase Power Quality Analyser is also ergonomic. It can be powered directly from the measurement circuit, removing limitations that come from needing a power outlet or a lengthy extension cord.

The Fluke 1773 Three-Phase Power Quality Analyser is a comprehensive, simple-to-use, and practical test instrument suitable for electrical system troubleshooting and power and energy logging.

Fluke 1773 Three-Phase Power Quality Analyser Key Features

  • Two-in-one power quality analyser and power quality meter
  • Log data, analyse measurements, and troubleshoot issues
  • Ideal for energy surveys, load testing, and harmonic surveys
  • Easy-to-use interface
  • Simplified reporting platform
  • Automatic measurement capture
  • Streamlined user interface
  • Easily navigate between measurement parameters
  • Captures over 500 power quality parameters
  • Measures harmonics, dips, swells, unbalance, voltage, current, and power
  • PQ Meter function: provides immediate access to live data allowing you to identify potential problems quickly
  • Large, bright touchscreen display
  • Navigation buttons
  • Guided setups for easy configuration and parameter selection
  • Guided setups digitally correct measurement connections
  • Create custom views: tailor the analyser to carry out tests and gather data relevant to your application
  • Data transfer via a USB or OPTIONAL Wi-Fi interface
  • Transfer data without interrupting power quality or energy studies
  • Use the Fluke Energy Analyse Plus Software to view and share results as well as create customised reports
  • One-click reporting function: create industry-standard reports (Fluke Energy Analyse Plus Software)
  • Can be powered directly from the measurement circuit
  • Comprehensive, simple-to-use, and practical test instrument
  • Suitable for electrical system troubleshooting and power and energy logging

What’s Included?

  • Fluke 1773 Three-Phase Power Quality Analyser
  • OPTIONAL 4x i17XX-FLEX1500 1500A Current Clamp (2m)
  • 1x FLUKE-17XX Flat Cable Voltage Test Lead
  • 4x AC285 Black Alligator Clip
  • 1x AC285 Green Alligator Clip
  • 1x USB-C Cable
  • 1x Line Cord
  • 1x FLK-17XX 0.18M Test Lead Set
  • 1x Green Test Lead
  • Cable Marker Set (For Voltage and Current)
  • FLUKE-174X-MA-C8 Wall Outlet Adapter
  • 1x Statement of Calibration Practices

Kit Comparison

  FLUKE 1773 FLUKE 1773/BASIC

Fluke 1773 Three-Phase Power Quality Analyser

4x i17XX-FLEX1500 1500A Current Clamp (2m)

1x FLUKE-17XX Flat Cable Voltage Test Lead

4x AC285 Black Alligator Clip

1x AC285 Green Alligator Clip

1x USB-C Cable

1x Line Cord

1x FLK-17XX 0.18M Test Lead Set

1x Green Test Lead

1x Cable Marker Set (For Voltage and Current)

1x FLUKE-174X-MA-C8 Wall Outlet Adapter

1x Statement of Calibration Practices



Fluke 1770 Series Three-Phase Power Quality Analyser Comparison Chart

  1773 1775 1777
Max input voltage rms
1000Vac/1500Vdc
Voltage Channels / Amp
Channels
5/4 5/4 5/4
Flex 150/1500A 12” 4x
PQ Health (EN 50160)
DC voltage, DC current
(with optional clamps)
Live Scope/Phasor Diagram
Live Reading Trending
Internal Storage Memory
(External SD Slot)
8GB
(32GB
available)
8GB
(32GB
available)
8GB
(32GB
available)
Battery (swappable) 1hrs 1hrs 1hrs
Transients 20 MHz 8kV (Volt
only)
1MHz
sampling
20MHz
sampling
Event List
RMS profile capture and
Waveform data
Input 2x ac+dc 10V ****
IEC 61000-4-30 Class A Ed. 4 (Unreleased) Engineered to meet future Class
A Ed. 4 requirements
Harmonics 2-9 kHz (Volt and Amp)
Harmonics to 30kHz
Interval 200ms rms 3s
Harm.
Display 7” Touch
Ethernet/WiFi (2x)/BLE

(Wi-Fi optional)

Automatically powers from
measurement line
Connection verification and
autocorrection

Fluke 1770 Series Three-Phase Power Quality Analyser Technical Specifications

Voltage inputs
Number of inputs 4 inputs, 3 phases and neutral referenced to PE (5 connectors)
Measurement category 1000 V CAT III / 600 V CAT IV
Maximum input voltage 1000 V rms / 1000 V dc (1700 Vpk)
Nominal voltage range Wye and single phase: variable (50 V – 1000 V)
Delta: Variable (100 V – 1000 V)
IEC 61000-4-30 Class A compliance for the nominal voltages (Vdin) 100 V – 690 V
Input impedance 10 MΩ between P-P and P-N, 5 MΩ between P-PE and N-PE
Bandwidth DC to 30 kHz for PQ measurements, excluding transients
Resolution 24-bit synchronous sampling
Sampling frequency 80 kS/s at 50/60 Hz
Scaling 1:1, variable for use of potential transformers
Voltage transients
Measurement range ±8 kV
Sampling rate 1775: 1 MS/s
  1777: 1 MS/s, 20 MS/s
Bandwidth DC to 1 MHz
Trigger Adjustable trigger level. Triggers on high-frequency components > 1.5 kHz
Resolution 14-bit synchronous sampling
Current inputs
Number of inputs 4 inputs 3 phases and Neutral, range selected automatically to attached sensor
Range AC 1 A to 1500 A with i17XX-FLEX1500 12
1 A to 1500 A with i17XX-FLEX1500 24
3 A to 3000 A with i17XX-FLEX3000 24
6 A to 6000 A with i17XX-FLEX6000 36
40 mA to 40 A with clamp i40s-EL
4 A to 400 A with clamp i400s-EL
DC 20 A to 2000 A with 80i-2010-EL clamp
Bandwidth DC to 30 kHz
Resolution 24-bit synchronous sampling
Sampling frequency 80 kS/s at 50/60 Hz
Scaling 1:1, variable
Input voltage Clamp: 50 mV / 500 mV rms; CF 2.8
Rogowski Coil: 15 mV / 150 mV rms at 50 Hz, 18 mV / 180 mV rms at 60 Hz; CF 4 all at
nominal probe range
Input impedance 11 kΩ
