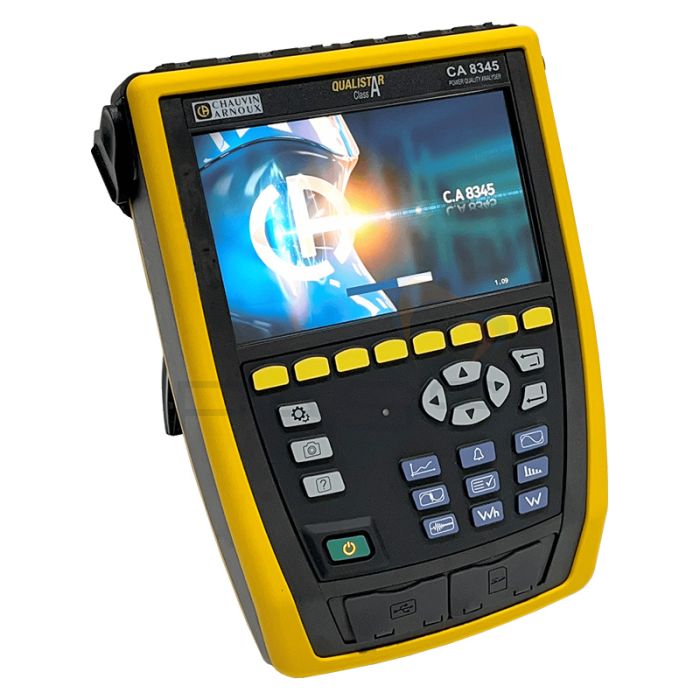

The CA 8345 is a Class A Qualistar power and energy quality analyser. t is equipped with an intuitive HMI and remains simple to use. Multilingual online help can be displayed at any time on the large colour LCD touchscreen. Easy to handle, it is intended for inspection and maintenance teams working on industrial or tertiary installations. It can be used to obtain a snapshot of the electrical network's main quality features.
The CA 8345 automatically recognises the type of current sensor connected, providing a greater level of safety. It can also display the harmonics and inter-harmonics as stipulated by IEC 61000-4-7. At the same time, it detects the carrier currents flowing on the installation.
The CA 8345 ensures high measurement accuracy. It provides a large number of calculated values and several processing functions. It offers users all the measurements needed to successfully handle energy efficiency projects and monitor the electrical distribution network. By calculating the cost of the electricity, you can immediately determine the value of the electricity consumed.
The CA 8345 monitors all the events on the network:
A monitoring mode can be used to record the measurement campaigns required for analysis as per EN50160.

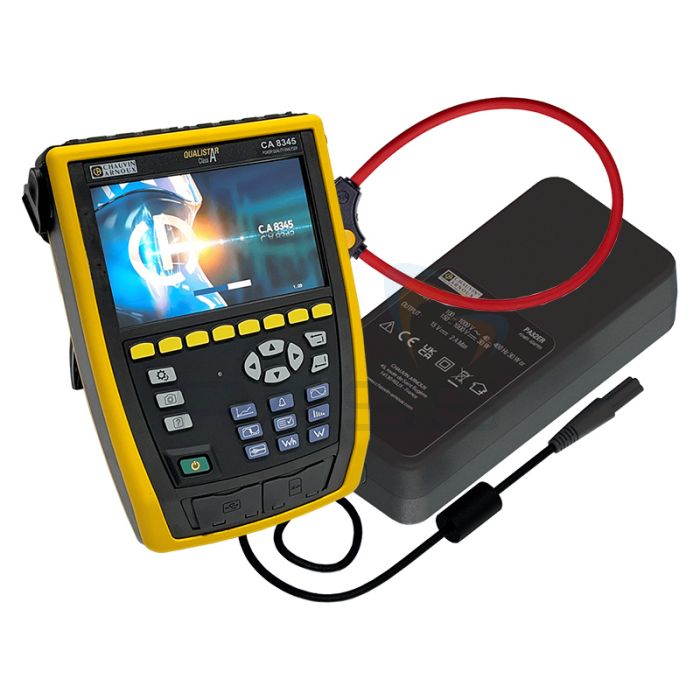

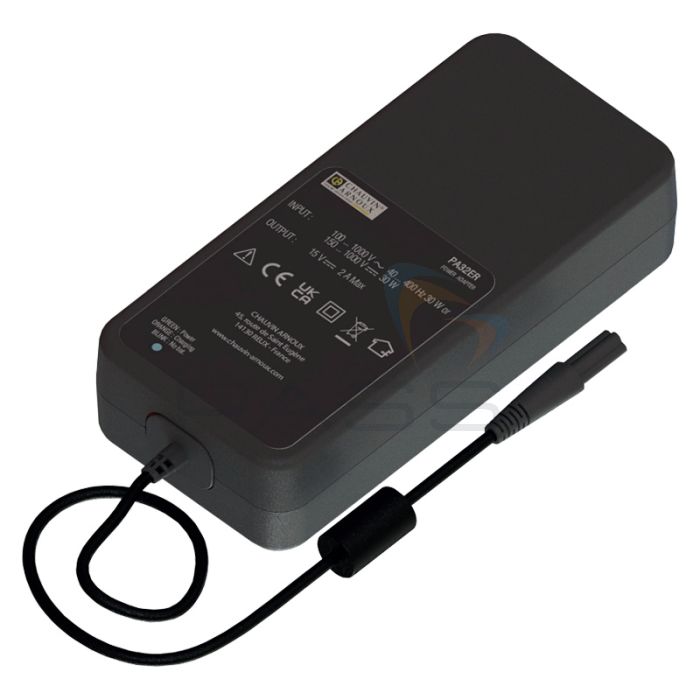

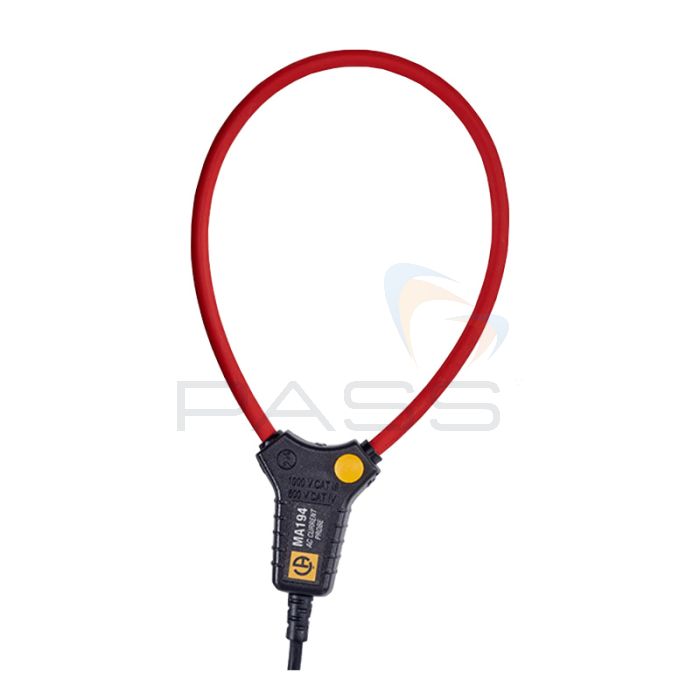

The Chauvin Arnoux CA8345COMPLETE includes the Qualistar+ Power Analyser, mini flex clamp, and a power supply/charger.
| CA8345 | |
|---|---|
| Inputs | Voltage/current, isolated |
| Voltage | 5 V to 1,000 Vac and Vdc |
| IEC 61000-4-30 (Ed 3) | Class A (Full) |
| Screen | 7" colour LCD touch screen: 800 x 480 (WVGA) |
| Clock / GPS | Yes, built-in |
| Real-Time Mode | Yes |
| Sampling Rate | Voltage 400 kSps / Current 200 kSps / Surge 2 MSps |
| Power Mode | Yes |
| Energy Mode | Yes |
| Unbalance Mode | Composite |
| Harmonics Mode | DC to 63rd order |
| Inter-Harmonics Mode | 0 to 62nd order |
| Trend Recording | > 900 parameters |
| Alarm Mode (Types / Number) | 52 / 20,000 |
| Carrier Current Detection Mode | Yes |
| Inrush Capture (Number) | 100 |
| 2.5 µs Transients (Number) | No maximum (SD card) |
| Shockwaves | Up to 12 kV sampled every 500ns |
| EN50160 Monitoring Mode | With PAT3 software |
| USB Communication | Yes |
| SD Card | Accessible, external |
| Ethernet | Yes |
| Wifi | Yes |
| Web Server | Yes |
| USB Key Port (Type A) | Yes |
| Battery Cartridge | Li-ion - 5800 Ah |
| IEC 61010 Safety | CAT IV 1000V |
| Protection | IP54 |
| Operating Temperature | [+0 °C; +40 °C] |
| Environmental Compliance | IEC 61557-12 & IEC 62586 |
| Dimensions (H x L x D) | 200x285x55 mm / 1.9 kg |
