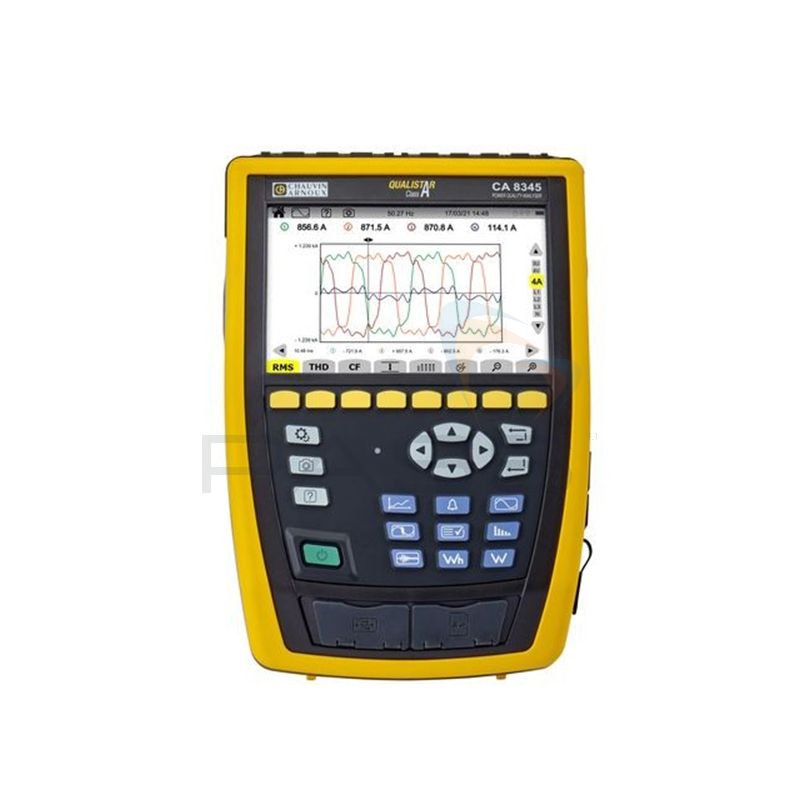

The Chauvin Arnoux CA8345 Qualistar Class A Power Quality Analyser is a power and energy analyser fully compliant with IEC 61000-4-30 Class A Edition 3. It is ideal for inspection and maintenance teams working on industrial and/or tertiary installations as it offers a snapshot of the main electrical network quality features.
Suitable for monitoring all installation types, the Chauvin Arnoux CA8345 Qualistar Class A Power Quality Analyser takes all DC components into account when measuring:

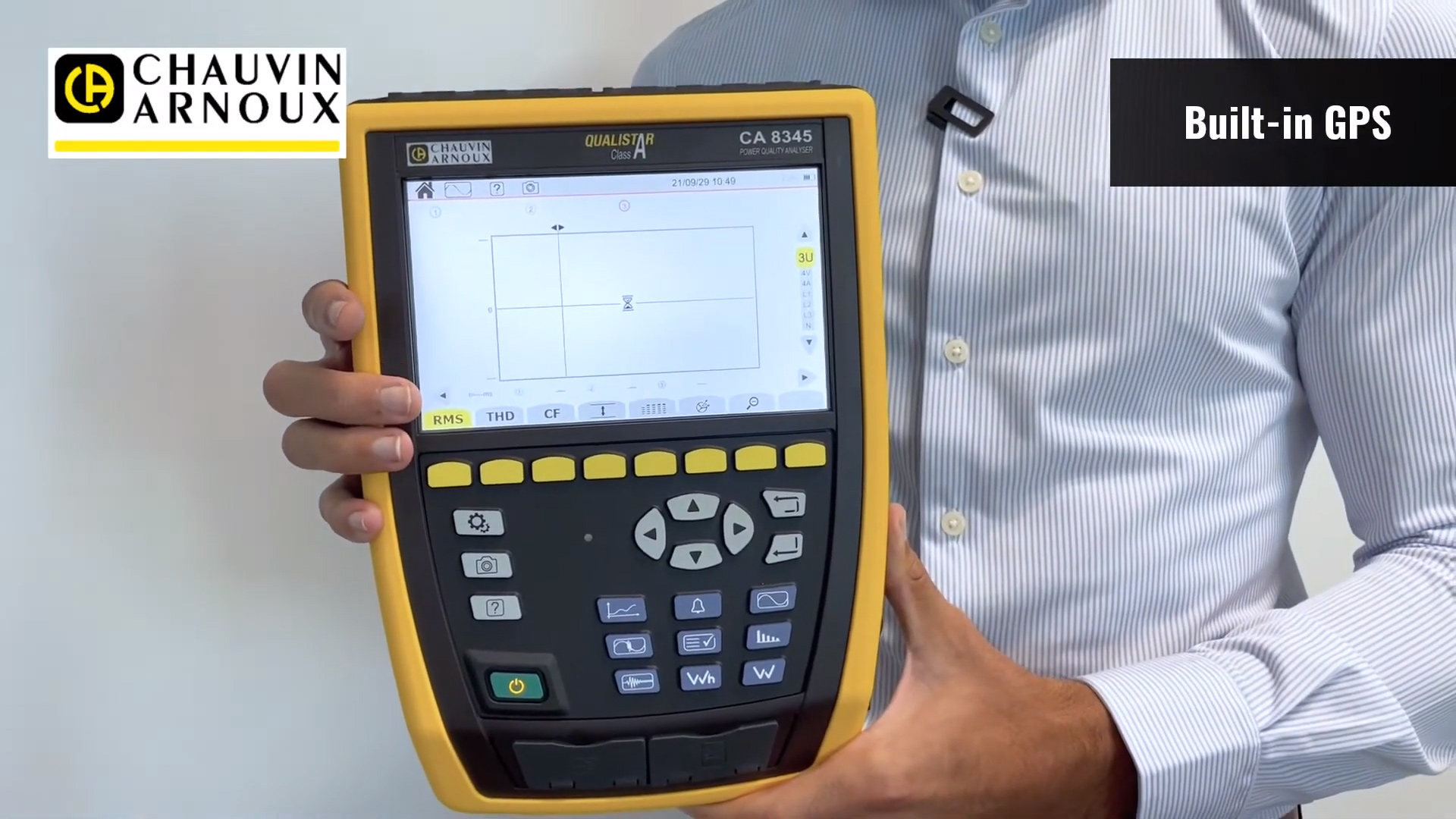

It offers voltage quality diagnostics, as well as internal GPS for precise UTC synchronisation (NTP is also possible), and supports configurable alarms for multiple parameters.
In addition to the aforementioned measurement functions, the Chauvin Arnoux CA8345 Qualistar Class A Power Quality Analyser can calculate:
Hundreds of parameter readings are recorded to the Chauvin Arnoux CA8345 Qualistar Class A Power Quality Analyser’s removable SD card. It offers trend recording with recording periods ranging from 200ms to 2hrs. Moreover, fast transient events are captured and their characteristics are saved to the analyser’s memory. The Chauvin Arnoux CA8345 Qualistar Class A Power Quality Analyser can capture hundreds of 2.5µs transients, as well as shockwaves up to 12kV with a resolution of 500ns.
The Chauvin Arnoux CA8345 Qualistar Class A Power Quality Analyser supports many methods of communication enabling the transfer of data and/or remote operation of the unit. These include USB, Ethernet, and Wi-Fi interfaces, software for real-time data recovery and PC communication, and a web server for remote interface with Android, Microsoft, and iOS apps. Furthermore, the Chauvin Arnoux CA8345 Qualistar Class A Power Quality Analyser is equipped with a screenshot function for capturing images and data which are recorded and backed up by the instrument.

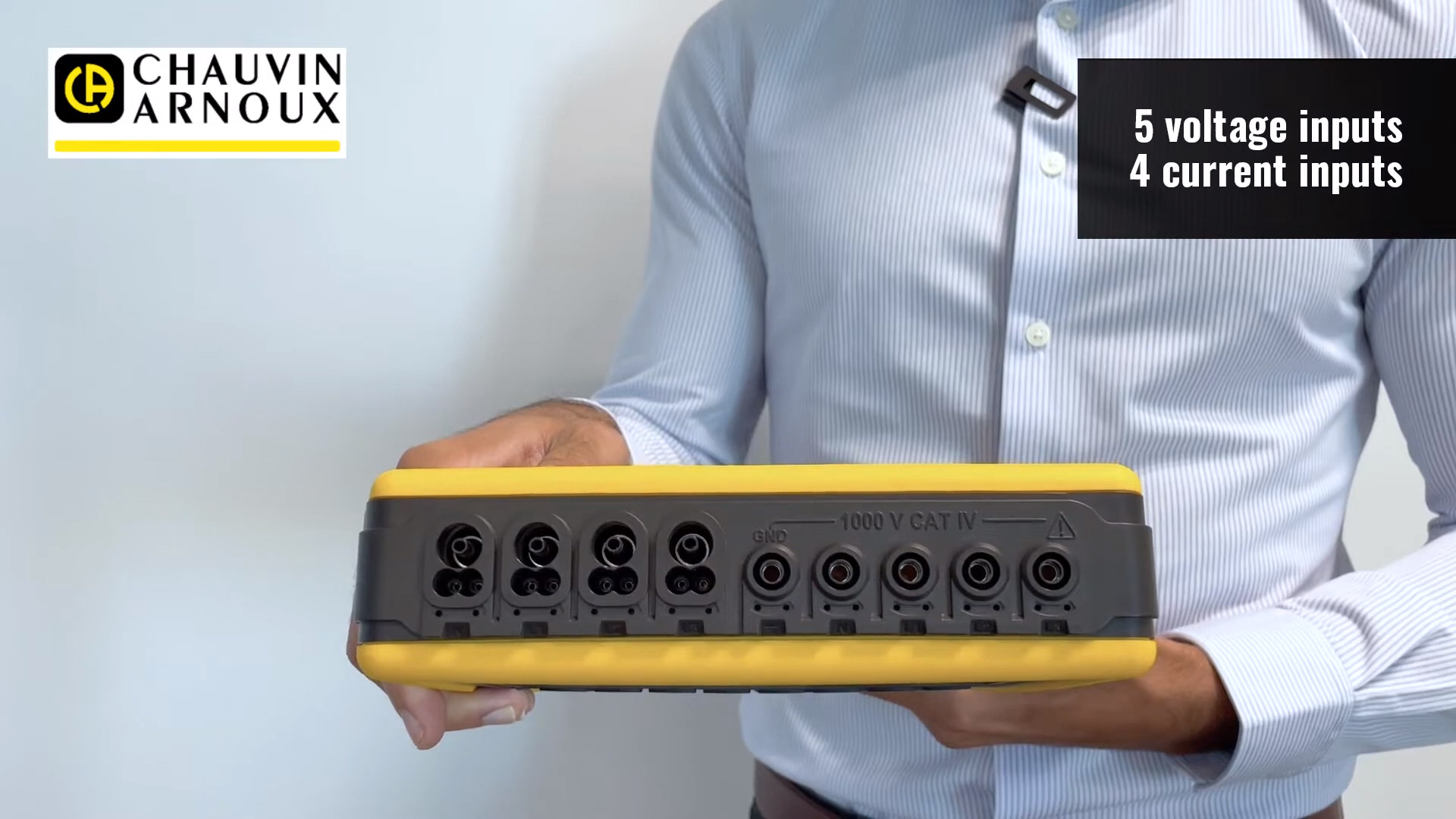

Data, including the real-time display of waveforms (four voltage and four current) and phasor diagrams, is visible on the Chauvin Arnoux CA8345 Qualistar Class A Power Quality Analyser’s wide, seven-inch, touchscreen, colour LCD. This easy-to-use, intuitive power analyser is supported by multilingual online help. It can be programmed to include multiple user profiles. Other practical features include automatic recognition of different current sensors, five 50Hz/60Hz AC/DC voltage inputs, a DC current power supply, and a 55mm-thick, IP54-rated casing with a stand.
The Chauvin Arnoux CA8345 Qualistar Class A Power Quality Analyser is an easy-to-use, ergonomic, and accurate power and energy analyser with an eclectic array of measurement and calculation functions.
| Inputs | Voltage/current, isolated |
| Voltage | 5 V to 1,000 Vac and Vdc |
| IEC 61000-4-30 (Ed 3) | Class A (Full) |
| Screen | 7" colour LCD touch screen: 800 x 480 (WVGA) |
| Clock / GPS | Yes, built-in |
| Real-time mode | Yes |
| Sampling rate | Voltage 400 kSps / Current 200 kSps / Surge 2 MSps |
| Power mode | Yes |
| Energy mode | Yes |
| Unbalance mode | Composite |
| Harmonics mode | DC to 63rd order |
| Interharmonics mode | 0 to 62nd order |
| Trend recording | > 900 parameters |
| Alarm mode (types / number) | 52 / 20,000 |
| Carrier current detection mode | Yes |
| Inrush capture (number) | 100 |
| 2.5 µs transients (number) | No maximum (SD card) |
| Shockwaves | Up to 12 kV sampled every 500ns |
| EN50160 monitoring mode | With PAT3 software |
| USB communication | Yes |
| SD card | Accessible, external |
| Ethernet | Yes |
| Wifi | Yes |
| Web server | Yes |
| USB key port (Type A) | Yes |
| Battery cartridge | Li-ion – 5800 Ah |
| IEC 61010 safety | CAT IV 1000V |
| Protection | IP54 |
| Operating temperature | [+0 °C; +40 °C] |
| Environmental compliance | IEC 61557-12 & IEC 62586 |
| Dimensions (H x L x D) | 200x285x55 mm / 1.9 kg |
