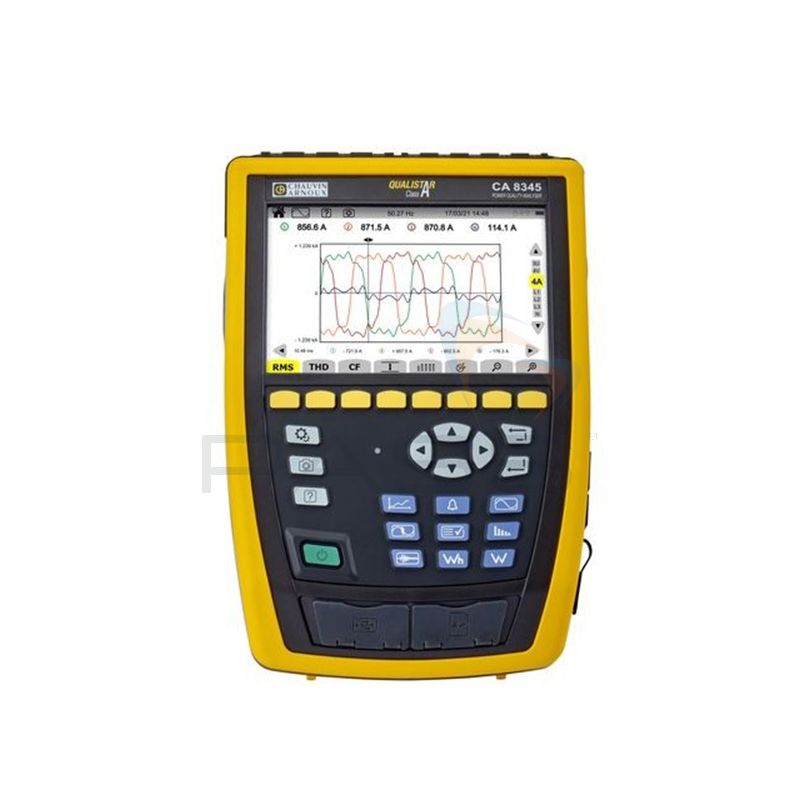

Chauvin Arnoux CA8345 Class A Power Quality Analyser & PA40W Power Adapter

In this kit, the Chauvin Arnoux CA8345 Class A Power Quality Analyser is supplied complete with a Chauvin Arnoux PA40W Power Adapter, a power supply and battery charger, along with standard accessories. Please see the ‘What’s Included?’ section for more details.

Chauvin Arnoux CA8345 Class A Power Quality Analyser Overview

A power and energy analyser, the Chauvin Arnoux CA8345 Class A Power Quality Analyser is suitable for monitoring all electrical circuits making it perfect for inspection and maintenance teams working on industrial and tertiary installations. It can measure/calculate the following parameters:

• Harmonics from DC to the 63rd order
• Inter-harmonics subgroups from 0 to the 62nd order
• Two carrier current frequencies
• P, N, Q1, S, and D power values (total and per phase)
• Energy values (total and per phase) with energy valuation
• K factor and FHL
• Distorting voltages and currents
• Displacement power factor (DPF) and power factor (PF)
• Pst and Plt flicker and sliding Pst
• Unbalance (current and voltage)
• Waveform Inrush (10-minute duration)
• RMS and Peak Inrush (30-minute duration)

Measurements, waveforms, and phasor diagrams are indicated on the Chauvin Arnoux CA8345 Class A Power Quality Analyser’s wide, colour, touchscreen LCD. Additionally, hundreds of parameters may be recorded to the SD card at a logging rate of between 200ms and 2hrs.

Finally, the Chauvin Arnoux CA8345 Class A Power Quality Analyser supports multiple communication interfaces (USB, Ethernet, and Wi-Fi) enabling remote operation and data transfer.

Please click here for more information about the Chauvin Arnoux CA8345 Class A Power Quality Analyser.

What’s Included?

• Chauvin Arnoux CA8345 Class A Power Quality Analyser
• Chauvin Arnoux PA40W Power Adapter
• 5x Reeling Boxes
• Shoulder Bag
• USB A/B Cable (1.8m)
• Set of 5 Banana Leads and Crocodile Clips
• Set of Identification Inserts and Rings
• Removable Wrist Strap
• Magnetic Hook
• SD Memory Card
