Chauvin Arnoux CA8336 Qualistar+ Power Analyser Kits w/ Choice of Clamps & Software

4,451£

(Available)
Quantity

SKU:

Categories: Electrical Testing Equipment

Available with a choice of 4x MA194-350 or A193-450 Flexible Clamps, the Chauvin Arnoux CA8336 Qualistar+ Power Analyser Kits offer a significant discount compared to purchasing all the included items separately. Please see the ‘What’s Included?’ section for further details.

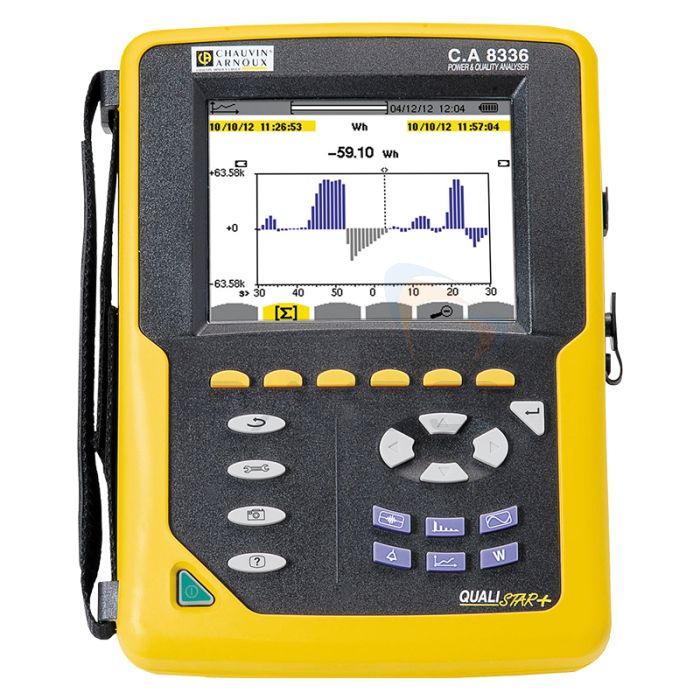

Chauvin Arnoux CA8336 Qualistar+ Power Analyser Overview

Equipped with five colour-coded voltage and three colour-coded current channels for measuring multiple parameters simultaneously, the Chauvin Arnoux CA8336 Qualistar+ Power Analyser is a comprehensive yet simple-to-use power quality meter. Ideal for both quick measurements and extended analysis, the Chauvin Arnoux CA8336 Qualistar+ Power Analyser supports the following tests:

  • True-RMS Voltage (AC/DC)
  • True-RMS Current (AC/DC)
  • Frequency
  • Power values – W, VA, var, VAD, PF, DPF, cos ϕ, tan ϕ
  • Energy values – Wg, varh, Vah, VADh
  • Harmonics from 0 to 50
  • Flicker (PST and PLT)

An Inrush mode, Transient mode, Min/Max Recording function, Peak Detection function, and user-configurable alarms further expand the Chauvin Arnoux CA8336 Qualistar+ Power Analyser’s measurement capabilities. Data including waveforms are visible on the large, full-colour LCD screen.

Optimised for practicality, the Chauvin Arnoux CA8336 Qualistar+ Power Analyser’s design ensures functions and measurement tools are easy to access. It also includes PC connectivity, has an average battery life of thirteen hours, and is CAT III 1000V/ CAT IV 600V safety rated.

Please follow this link for more information regarding the Chauvin Arnoux CA8336 Qualistar+ Power Analyser.

What’s Included?

SKU What's Included?

Approximate Saving

(Compared to Buying All the Included Products Separately)

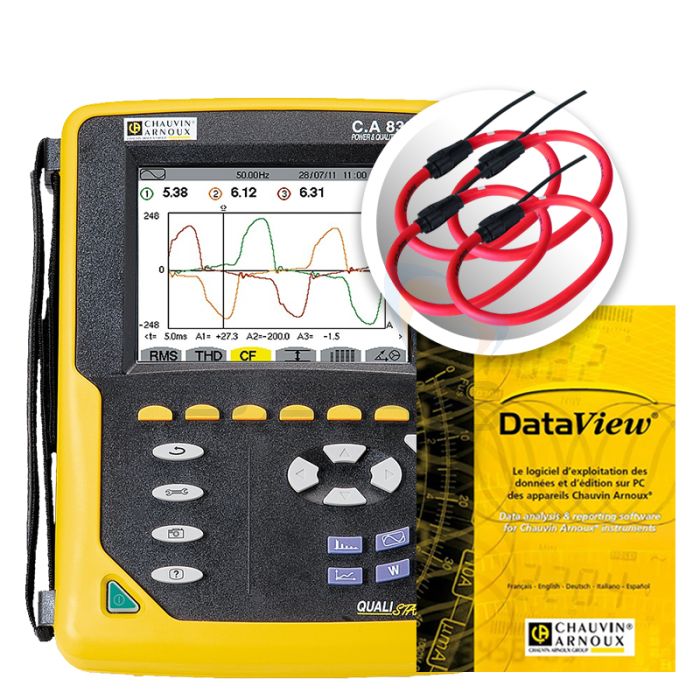

CA8336-A193
  • Chauvin Arnoux CA8336 Qualistar+ Power Analyser & Standard Accessories
  • 4x Chauvin Arnoux A193-450 Flexible Clamps
  • Chauvin Arnoux DataView Reporting Software
£1110

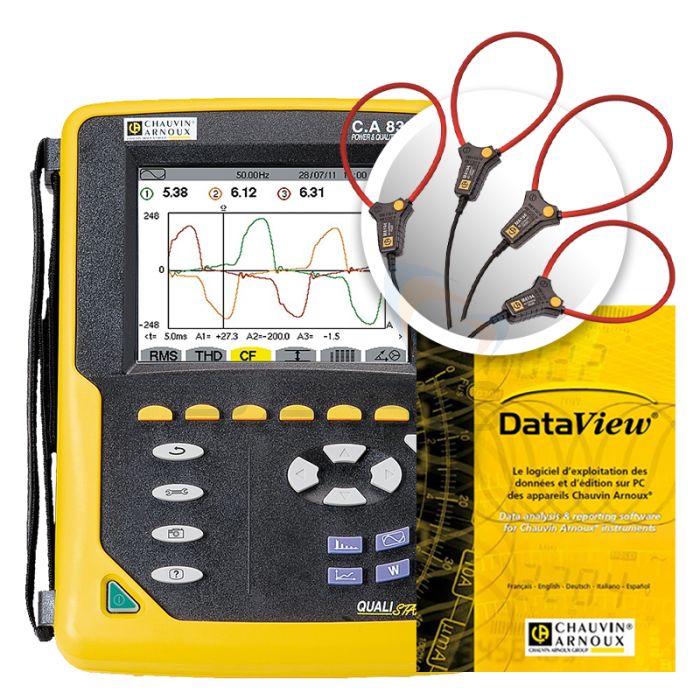

CA8336-MA194
  • Chauvin Arnoux CA8336 Qualistar+ Power Analyser & Standard Accessories
  • 4x Chauvin Arnoux MA194-350 Flexible Clamps
  • Chauvin Arnoux DataView Reporting Software
£1335



Chauvin Arnoux Qualistar + Range Technical Specifications

Model:  CA 8331   C.A 8333   C.A 8336   C.A 8435
Number of Channels 3U/ 4I 4U/4I
Number of Inputs 4V/3I 5V/4I
Voltage (TRMS AC + DC) 2V to 1000V
Voltage Ratio up to 500kV
Current (TRMS AC+DC)
 (Range dependant on clamp used -
sold separately)

MN93 Clamps  MN93: 500mA to 200A AC; MN93A: 0.005A AC to 100A AC
C193 Clamp 1A to 1000A AC
AmpFLEX or MA193 Clamps 100mA to 10000A AC 30A to 6500A AC
PAC93 1A to 1300A AC/DC
E3N 50mA to 100A AC/DC
Current Ratio Up to 60kA
Frequency 40Hz to 69Hz
Power Values W, VA, var, VAD, PF, DPF, cos φ, tan φ
Energy Values Wh, varh, VAh, VADh
Harmonics Yes
THD Yes, orders 0 to 50, phase
Expert Mode - Yes
Transients - 50 210
Flicker (Pst & Plt) Yes
Inrush Mode -  Yes on 4 periods  Yes > 10 minutes
Unbalance Yes
Recording MIN/MAX Yes
 of a selection of parameters at the max sampling rate   4 hours to 2 weeks   Few days to several weeks  2 weeks to several years
Alarms - 4000 of 10 different types 10000 of 40 different types
Peak Yes
Vectorial Representation Automatic
Display Colour 1/4 VGA TFT screen, 320 x 240, diagonal 148mm
Capture of Screens and Curves 12 50
Electrical Safety IEC 61010 1000V, CAT III / 600V CAT IV
Protection IP53 / IK08 IP67
Languages More than 27
Communication Interface USB
Battery Life Up to 13 Hours
Power Supply 9.6V NiMH rechargeable battery or external mains charger
Dimensions 240 x 180 x 55mm  270 x 250 x 180mm
Weight 1.9kg 3.7kg
