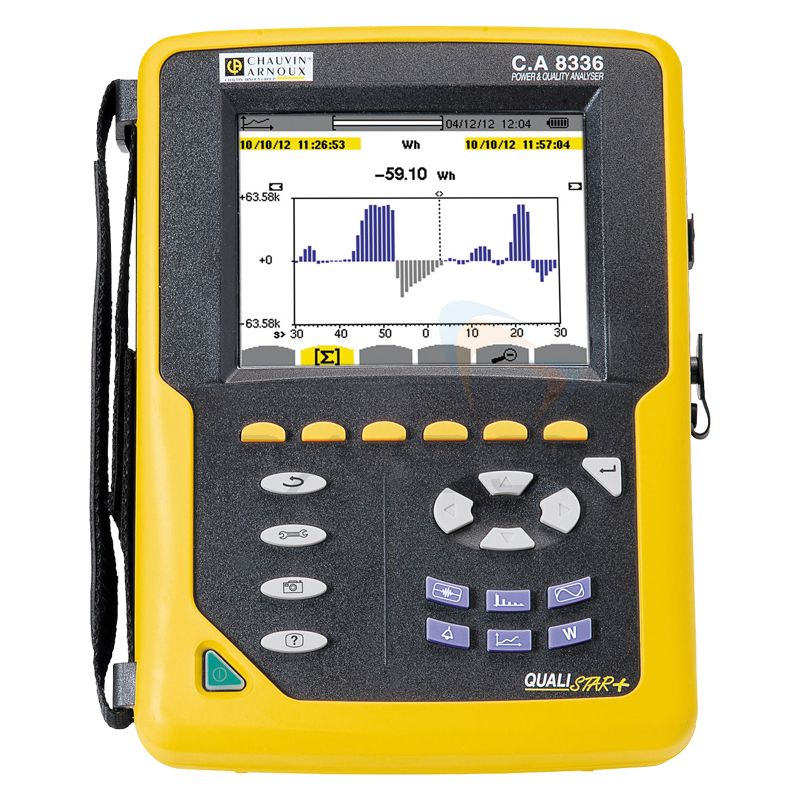

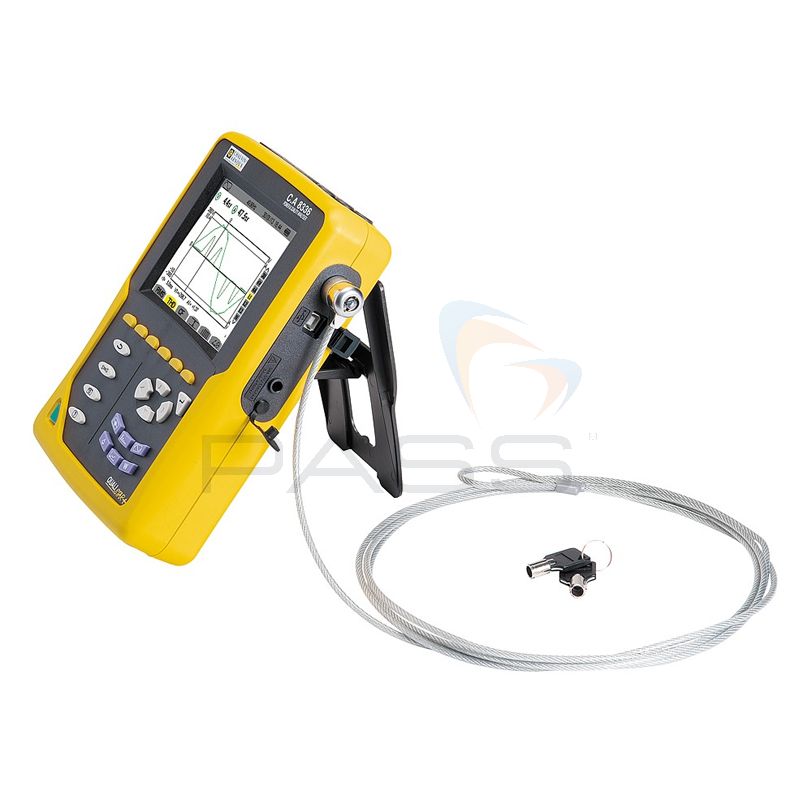

Chauvin Arnoux CA8336 Qualistar+ Power Analyser

4,451£

(Available)
Quantity

SKU:

Categories: Electrical Testing Equipment

Ideal for both quick measurements and extended power quality analysis, Chauvin Arnoux'x CA8336 provides users with a simple and effective way of gaining a snapshot into a system's power quality and overall energy usage.

Portable, handheld and made for use in the hands or left to analyse over a time period, the CA8336 can be used to easily carry out both preventative and corrective maintenance, improving your overall power quality, energy consumption and saving money.

Packed full of measurement functions and a wide array of advanced features, the Chauvin Arnoux CA8336 can easily analyse all electrical and associated power factors and includes such things as a full colour, large-size LCD screen, has 4 voltage and 4 current channels, captures parameters, transients, alarms and waveforms simultaneously and is compliant with CAT III 1000V and CAT IV 600V.

Chauvin Arnoux CA8336 Qualistar+ Power Quality Analyser Key Features

  • Handheld design - simple to use and packed full of features
  • Gain a snapshot and full analysis of electrical systems
  • Direct easy access to functions and measurement tools
  • Voltage and current inputs equipped with coloured identification rings
  • Large-size colour TFT screen
  • Average battery life of around 13 hours
  • CAT III 1000V and CAT IV 600V
  • Measures voltage, frequency, power, energy, harmonics, transients, flicker, unrush and more
  • 10000 alarms
  • Peak detection
  • PC connectivity
  • True InRush function

What's Included?

  • Chauvin Arnoux CA8336 Qualistar+ Power Quality Analyser
  • 5 x 4mm Banana Leads (3m Length)
  • 5 x Crocodile Clips
  • Set of 12x Colour Inserts
  • Scratch-Proof Screen Protection Film
  • USB Cable
  • Mains Power Cable
  • Mains Power Pack
  • Safety Datasheet
  • Multi-Language Operating Manual CD
  • PC Data Retrieval Software CD (Power Analyser Transfer)
Model:  CA 8331   C.A 8333   C.A 8336   C.A 8435
Number of Channels 3U/ 4I 4U/4I
Number of Inputs 4V/3I 5V/4I
Voltage (TRMS AC + DC) 2V to 1000V
Voltage Ratio up to 500kV
Current (TRMS AC+DC)
 (Range dependant on clamp used -
sold separately)

MN93 Clamps  MN93: 500mA to 200A AC; MN93A: 0.005A AC to 100A AC
C193 Clamp 1A to 1000A AC
AmpFLEX or MA193 Clamps 100mA to 10000A AC 30A to 6500A AC
PAC93 1A to 1300A AC/DC
E3N 50mA to 100A AC/DC
Current Ratio Up to 60kA
Frequency 40Hz to 69Hz
Power Values W, VA, var, VAD, PF, DPF, cos φ, tan φ
Energy Values Wh, varh, VAh, VADh
Harmonics Yes
THD Yes, orders 0 to 50, phase
Expert Mode - Yes
Transients - 50 210
Flicker (Pst & Plt) Yes
Inrush Mode -  Yes on 4 periods  Yes > 10 minutes
Unbalance Yes
Recording MIN/MAX Yes
 of a selection of parameters at the max sampling rate   4 hours to 2 weeks   Few days to several weeks  2 weeks to several years
Alarms - 4000 of 10 different types 10000 of 40 different types
Peak Yes
Vectorial Representation Automatic
Display Colour 1/4 VGA TFT screen, 320 x 240, diagonal 148mm
Capture of Screens and Curves 12 50
Electrical Safety IEC 61010 1000V, CAT III / 600V CAT IV
Protection IP53 / IK08 IP67
Languages More than 27
Communication Interface USB
Battery Life Up to 13 Hours
Power Supply 9.6V NiMH rechargeable battery or external mains charger
Dimensions 240 x 180 x 55mm  270 x 250 x 180mm
Weight 1.9kg 3.7kg
