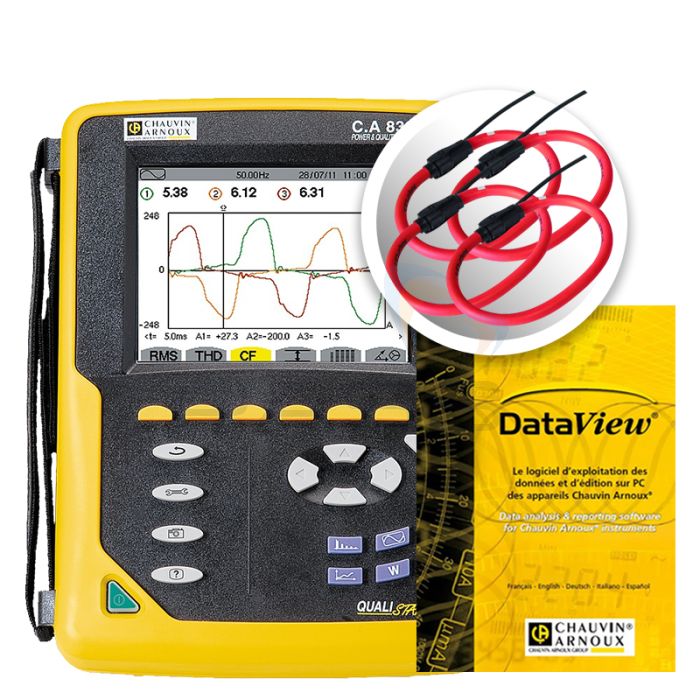

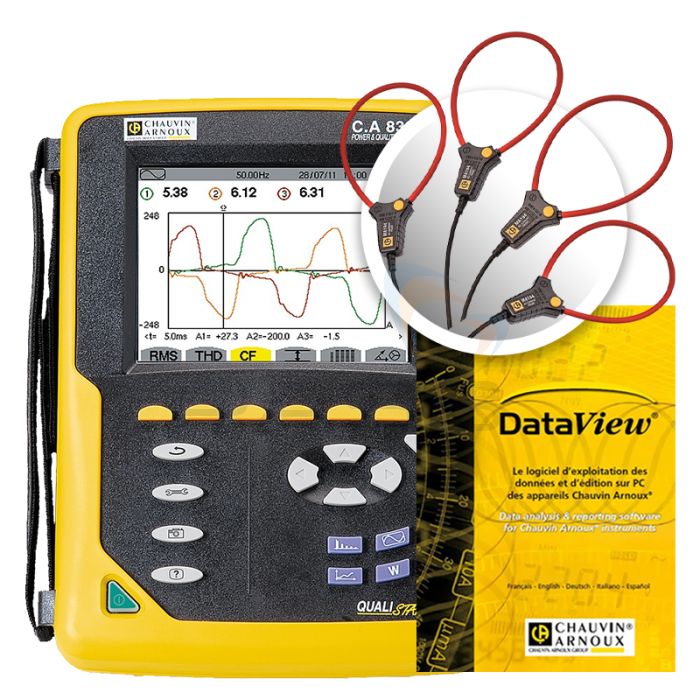

Available with a choice of 3x MA194-350 or A193-450 Flexible Clamps, the Chauvin Arnoux CA8333 Qualistar+ Power Analyser Kits offer a significant discount compared to purchasing all the included items separately. Please see the ‘What’s Included?’ section for further details.

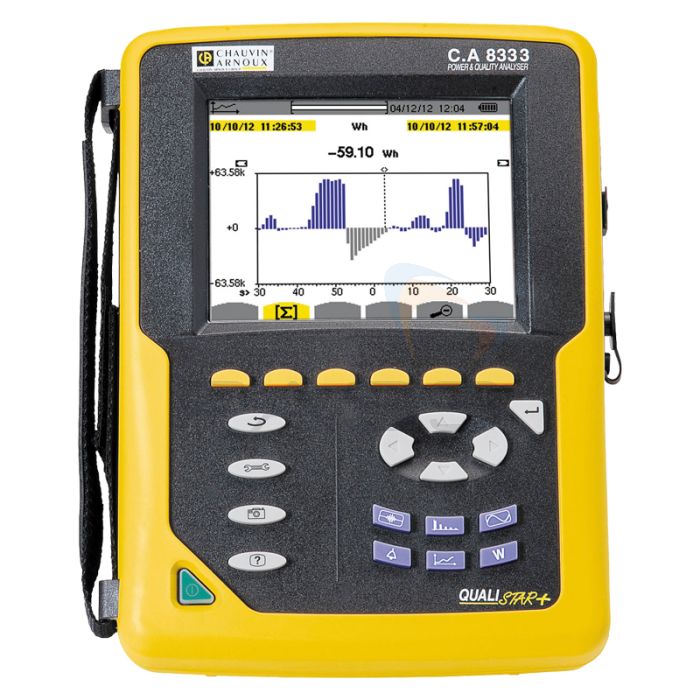

Locate sources of energy losses, identify malfunctioning electrical systems, and monitor corrective actions using the Chauvin Arnoux CA8333 Qualistar+ Power Analyser, a simple-to-use multifunctional power quality meter with three current inputs and four voltage inputs. Capable of performing full diagnostics on electrical systems, the Chauvin Arnoux CA8333 Qualistar+ Power Analyser offers the following tests and measurements:
It also includes an Inrush mode (on four periods), a Transient mode (up to 50), Min/Max Recording function, and user-configurable alarms. An intuitive interface makes accessing the required test or functions easy and efficient.
Measurements are displayed on the high-quality colour screen. The Chauvin Arnoux CA8333 Qualistar+ Power Analyser also supports data logging for up to several weeks.
For more information about the Chauvin Arnoux CA8333 Qualistar+ Power Analyser, please follow this link.
| SKU | What's Included? |
Approximate Saving (Compared to Buying All the Included Products Separately) |
| CA8333-A193 |
|
£748 |
| CA8333+MA194 |
|
£927 |
| Model: | CA 8331 | C.A 8333 | C.A 8336 | C.A 8435 |
| Number of Channels | 3U/ 4I | 4U/4I | ||
| Number of Inputs | 4V/3I | 5V/4I | ||
| Voltage (TRMS AC + DC) | 2V to 1000V | |||
| Voltage Ratio | up to 500kV | |||
| Current (TRMS AC+DC) (Range dependant on clamp used - sold separately) |
||||
| MN93 Clamps | MN93: 500mA to 200A AC; MN93A: 0.005A AC to 100A AC | |||
| C193 Clamp | 1A to 1000A AC | |||
| AmpFLEX or MA193 Clamps | 100mA to 10000A AC | 30A to 6500A AC | ||
| PAC93 | 1A to 1300A AC/DC | |||
| E3N | 50mA to 100A AC/DC | |||
| Current Ratio | Up to 60kA | |||
| Frequency | 40Hz to 69Hz | |||
| Power Values | W, VA, var, VAD, PF, DPF, cos φ, tan φ | |||
| Energy Values | Wh, varh, VAh, VADh | |||
| Harmonics | Yes | |||
| THD | Yes, orders 0 to 50, phase | |||
| Expert Mode | - | Yes | ||
| Transients | - | 50 | 210 | |
| Flicker (Pst & Plt) | Yes | |||
| Inrush Mode | - | Yes on 4 periods | Yes > 10 minutes | |
| Unbalance | Yes | |||
| Recording MIN/MAX | Yes | |||
| of a selection of parameters at the max sampling rate | 4 hours to 2 weeks | Few days to several weeks | 2 weeks to several years | |
| Alarms | - | 4000 of 10 different types | 10000 of 40 different types | |
| Peak | Yes | |||
| Vectorial Representation | Automatic | |||
| Display | Colour 1/4 VGA TFT screen, 320 x 240, diagonal 148mm | |||
| Capture of Screens and Curves | 12 | 50 | ||
| Electrical Safety | IEC 61010 1000V, CAT III / 600V CAT IV | |||
| Protection | IP53 / IK08 | IP67 | ||
| Languages | More than 27 | |||
| Communication Interface | USB | |||
| Battery Life | Up to 13 Hours | |||
| Power Supply | 9.6V NiMH rechargeable battery or external mains charger | |||
| Dimensions | 240 x 180 x 55mm | 270 x 250 x 180mm | ||
| Weight | 1.9kg | 3.7kg | ||
