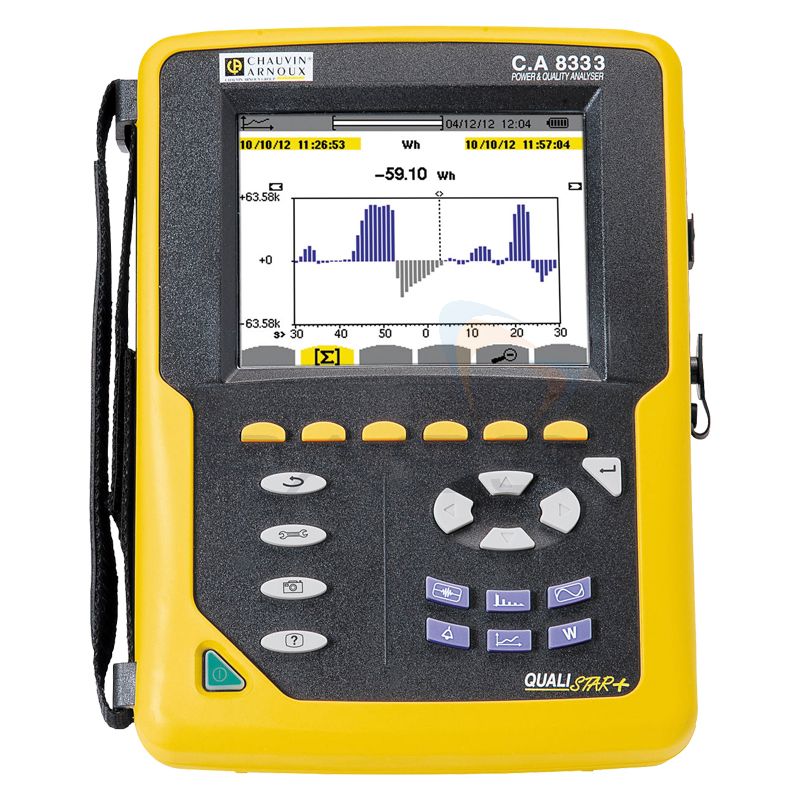

Chauvin Arnoux CA8333 Qualistar+ Power Analyser

3,212£

(Available)
Quantity

SKU:

Categories: Electrical Testing Equipment

Perform full diagnostics on electrical systems using the Chauvin Arnoux CA8333 Qualistar+, a simple-to-use multifunctional power quality analyser that can be used to identify energy losses, problematic systems and take corrective action against incorrect power quality.

With a full-colour screen, intuitive interface and packed full of functionality ranging from the ability to carry out single measurements to logging information over a time period, the CA8333 takes the hassle out of power quality management.

The CA8333 is an upgraded version of Chauvin Arnoux's CA8331, including new features such as a transient mode (up to 50) and inrush mode on 4 periods. It's also the first in the Qualistar+ range to come with built-in alarms that can be configured to the user's specifications and can record for longer than the CA8331 (from a few days anywhere up to several weeks).

Chauvin Arnoux CA8333 Qualistar+ Power Quality Analyser Key Features

  • Comprehensive power quality management system - captures all parameters, transients, alarms and waveforms simultaneously
  • Automatic recognition of current sensors and compatibility with a wide selection of Chauvin Arnoux clamps
  • 3 current inputs and 4 voltage inputs
  • Frequency measurements
  • Power values - W, VA, var, VAD, PF, DPF, cos φ, tan φ
  • Energy values - Wg, varh, VAh, VADh
  • Harmonics measurements from order 0 to 50
  • Transient mode
  • Flicker (PST and PLT)
  • Inrush mode on 4 periods
  • MIN/MAX recording
  • High quality colour screen
  • Alarm system
  • IEC 61010 CAT III 1000V, CAT IV 600V
  • Capture up to 12 screens and curves

What's Included?

  • Chauvin Arnoux CA8333 Qualistar+ Power Analyser
  • 5 x 4mm Banana Voltage Leads (3m)
  • 5 x Crocodile Clips
  • 12 x Colour Inserts/Rings for Lead/Input Identification
  • Scratch-Proof Screen Protection Film
  • USB Cable
  • Mains Power Cable
  • Mains Power Pack
  • Safety Datasheet
  • Multi-Language Operating Manual CD
  • PC Data Retrieval Software (Power Analyser Transfer)

Chauvin Arnoux Qualistar + Range Technical Specifications

Model:  CA 8331   C.A 8333   C.A 8336   C.A 8435
Number of Channels 3U/ 4I 4U/4I
Number of Inputs 4V/3I 5V/4I
Voltage (TRMS AC + DC) 2V to 1000V
Voltage Ratio up to 500kV
Current (TRMS AC+DC)
 (Range dependant on clamp used -
sold separately)

MN93 Clamps  MN93: 500mA to 200A AC; MN93A: 0.005A AC to 100A AC
C193 Clamp 1A to 1000A AC
AmpFLEX or MA193 Clamps 100mA to 10000A AC 30A to 6500A AC
PAC93 1A to 1300A AC/DC
E3N 50mA to 100A AC/DC
Current Ratio Up to 60kA
Frequency 40Hz to 69Hz
Power Values W, VA, var, VAD, PF, DPF, cos φ, tan φ
Energy Values Wh, varh, VAh, VADh
Harmonics Yes
THD Yes, orders 0 to 50, phase
Expert Mode - Yes
Transients - 50 210
Flicker (Pst & Plt) Yes
Inrush Mode -  Yes on 4 periods  Yes > 10 minutes
Unbalance Yes
Recording MIN/MAX Yes
 of a selection of parameters at the max sampling rate   4 hours to 2 weeks   Few days to several weeks  2 weeks to several years
Alarms - 4000 of 10 different types 10000 of 40 different types
Peak Yes
Vectorial Representation Automatic
Display Colour 1/4 VGA TFT screen, 320 x 240, diagonal 148mm
Capture of Screens and Curves 12 50
Electrical Safety IEC 61010 1000V, CAT III / 600V CAT IV
Protection IP53 / IK08 IP67
Languages More than 27
Communication Interface USB
Battery Life Up to 13 Hours
Power Supply 9.6V NiMH rechargeable battery or external mains charger
Dimensions 240 x 180 x 55mm  270 x 250 x 180mm
Weight 1.9kg 3.7kg
