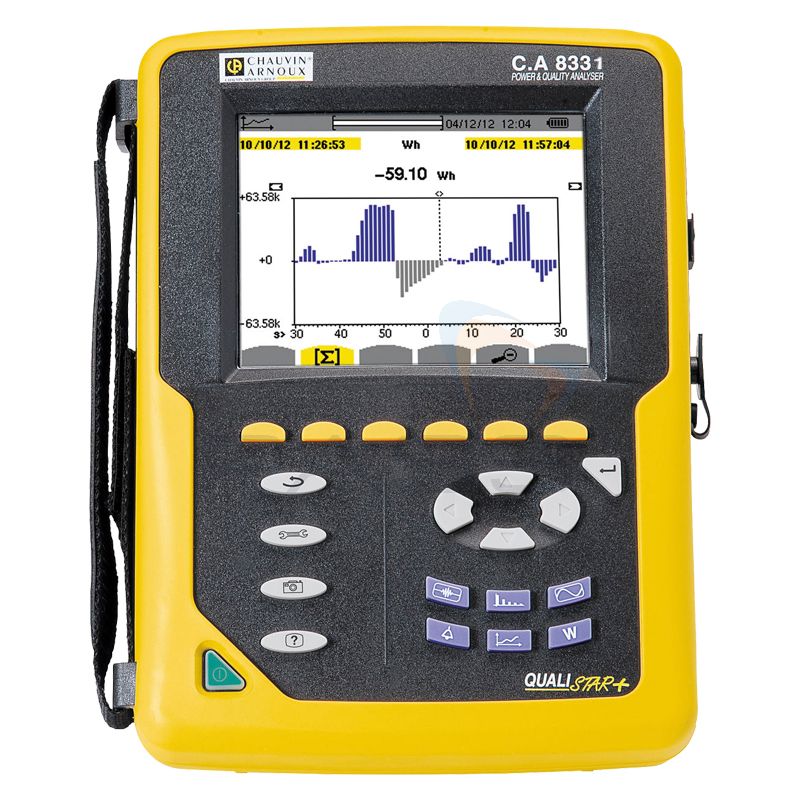

Chauvin Arnoux CA8331 Qualistar + Power Quality Analyser

1,985£

(Available)
Quantity

SKU:

Categories: Electrical Testing Equipment

Carry out power diagnostics on even the most complex electrical systems with the Chauvin Arnoux CA8331 Qualistar +, a comprehensive solution for measuring voltage, current and power.

Featuring the ability to measure parameters from four voltage channels and three current channels simultaneously (current clamps required for current measurements), the CA8331 clearly breaks down power quality into easy-to-read graphs and waveforms, allowing professionals to easily determine where power quality is being lost and take corrective action to ensure energy efficiency.

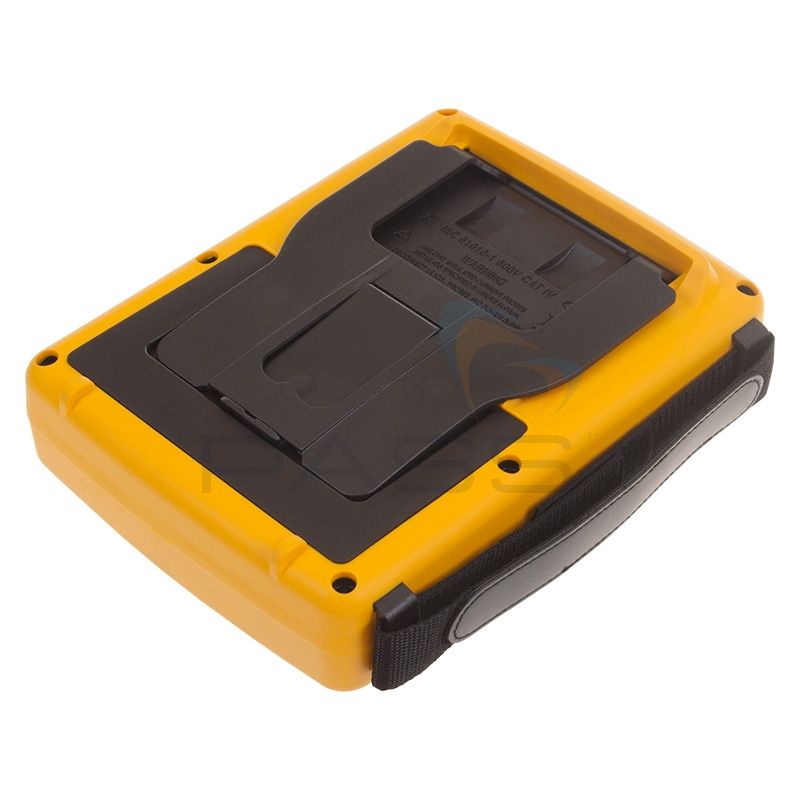

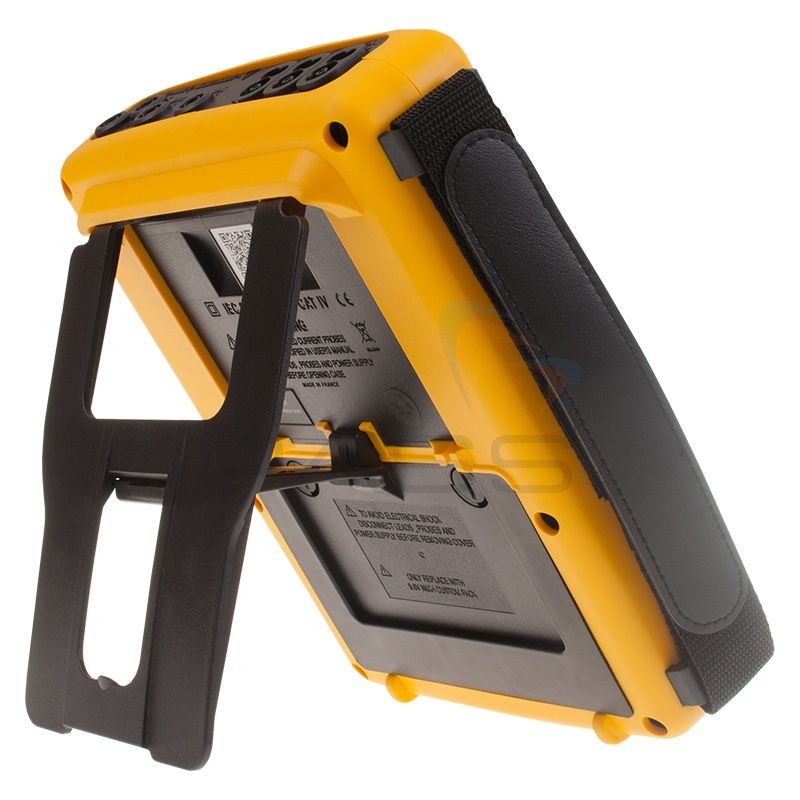

Designed for use out in the field, and comfortable to hold in the hands, or suitable for hands-free use thanks to a built-in stand, the CA8331 evaluates the following aspects of power quality: frequency, multiple power values, energy values, harmonics and flicker.

Chauvin Arnoux recommends using their MN93, MN93A, MA193, PAC93, A196-450, A193-450, A193-800, C193 and E3N current clamps with this instrument to carry out current measurements.

Chauvin Arnoux CA8331 Qualistar + Power Analyser Key Features

  • Comprehensive power quality instrument - measure and track power problems and take action against energy loss

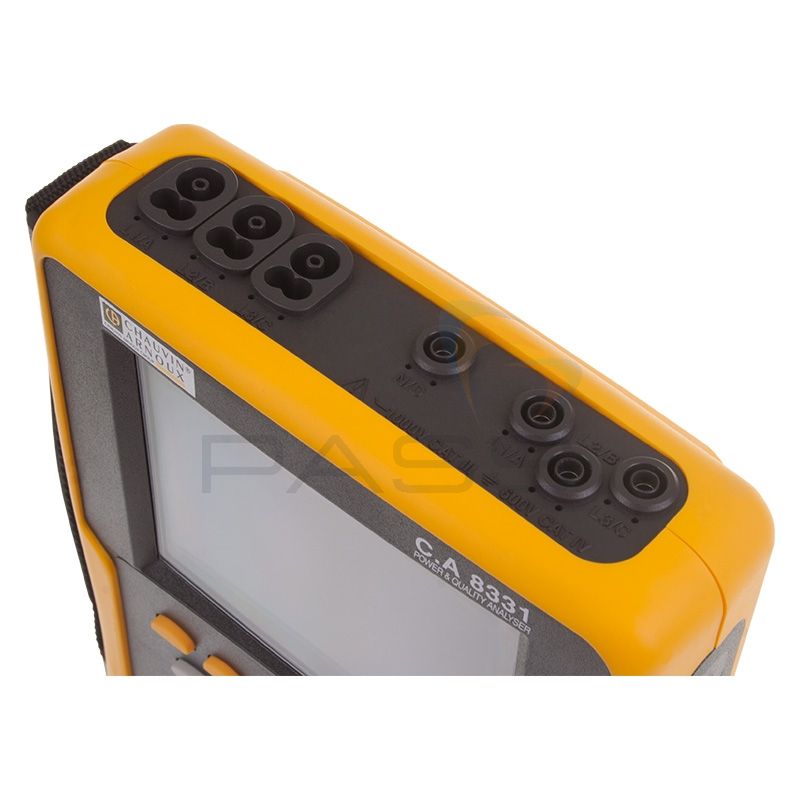

  • Four voltage channels and three current inputs
  • TRMS voltage measurements from 2V to 1000V AC/DC
  • Compatible with a wide range of Chauvin Arnoux clamps for current measurements (range varies dependant on clamp used)
  • Frequency measurements from 40Hz to 69Hz
  • Measures W, VA, var, BAD, PF, DPF, cos and tan power values
  • Measures Wh, varh, Vah, VADh energy values
  • Harmonic measurements from orders 0 to 50
  • Flicker measurement mode
  • MIN/MAX recording
  • High-quality colour 1/4 VGA TFT screen, 320 x 240mm
  • Capture of 12 screens and curves
  • CAT IV 600V and CAT III 1000V classification

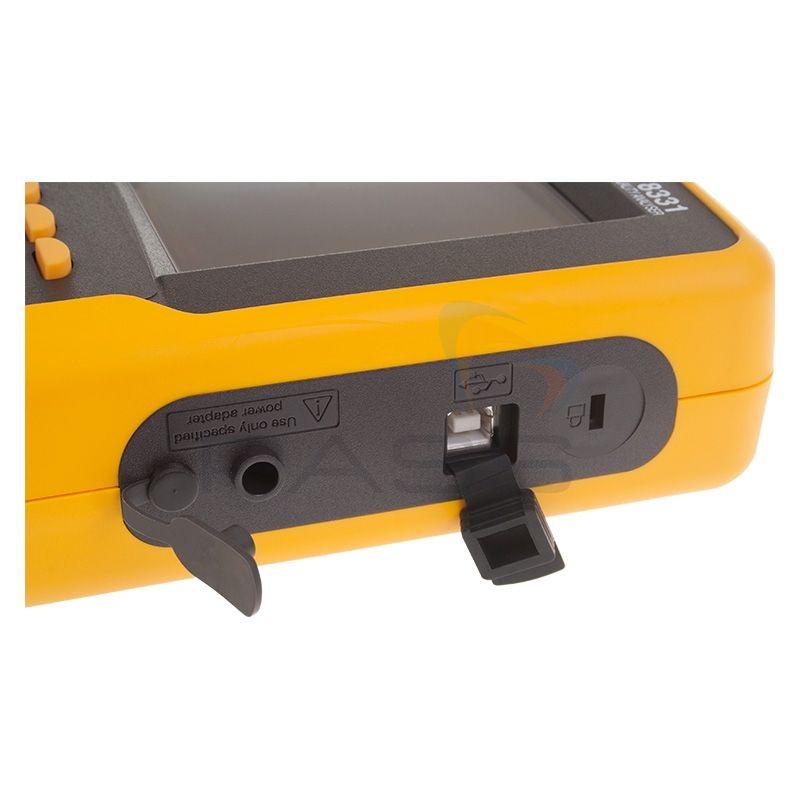

  • USB communication interface for connection to PC
  • Rechargeable batteries

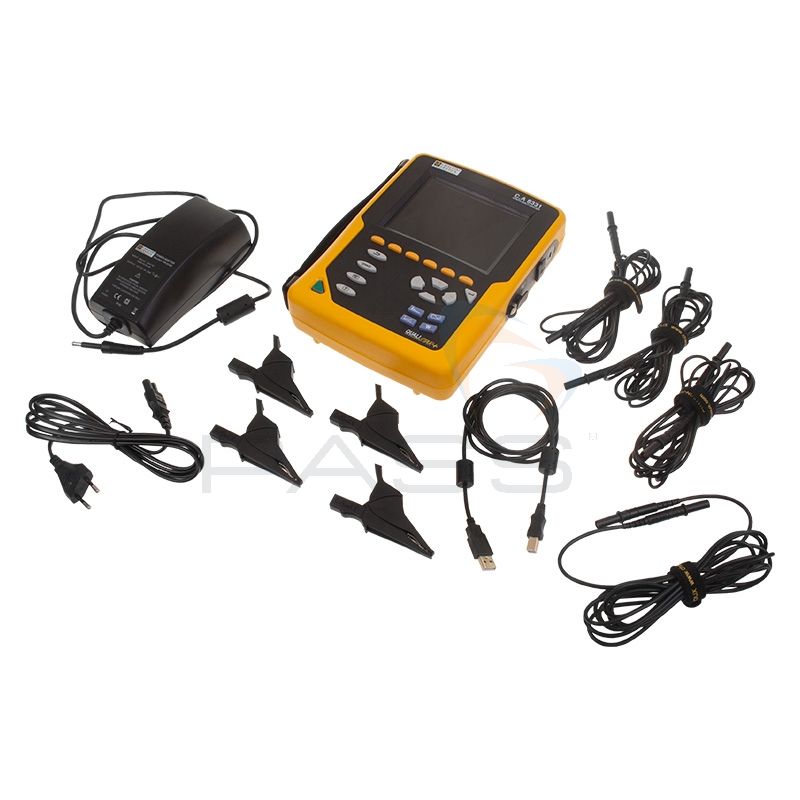

What's Included?

  • Chauvin Arnoux CA8331 Qualistar + Power Analyser
  • 5 x 4mm Banana Leads (3m Length)
  • 5 x Crocodile Clips
  • Set of 12 Colour Inserts/Rings (for Identifying Leads/Inputs)
  • Scratch-Proof Screen-Protection Film
  • USB Cable
  • Mains Power Cable
  • Mains Power Pack
  • Safety Datasheet
  • Multi-Language Operating Manual CD
  • Power Analyser Transfer Software Package (on CD)
Model:  CA 8331   C.A 8333   C.A 8336   C.A 8435
Number of Channels 3U/ 4I 4U/4I
Number of Inputs 4V/3I 5V/4I
Voltage (TRMS AC + DC) 2V to 1000V
Voltage Ratio up to 500kV
Current (TRMS AC+DC)
 (Range dependant on clamp used -
sold separately)

MN93 Clamps  MN93: 500mA to 200A AC; MN93A: 0.005A AC to 100A AC
C193 Clamp 1A to 1000A AC
AmpFLEX or MA193 Clamps 100mA to 10000A AC 30A to 6500A AC
PAC93 1A to 1300A AC/DC
E3N 50mA to 100A AC/DC
Current Ratio Up to 60kA
Frequency 40Hz to 69Hz
Power Values W, VA, var, VAD, PF, DPF, cos φ, tan φ
Energy Values Wh, varh, VAh, VADh
Harmonics Yes
THD Yes, orders 0 to 50, phase
Expert Mode - Yes
Transients - 50 210
Flicker (Pst & Plt) Yes
Inrush Mode -  Yes on 4 periods  Yes > 10 minutes
Unbalance Yes
Recording MIN/MAX Yes
 of a selection of parameters at the max sampling rate   4 hours to 2 weeks   Few days to several weeks  2 weeks to several years
Alarms - 4000 of 10 different types 10000 of 40 different types
Peak Yes
Vectorial Representation Automatic
Display Colour 1/4 VGA TFT screen, 320 x 240, diagonal 148mm
Capture of Screens and Curves 12 50
Electrical Safety IEC 61010 1000V, CAT III / 600V CAT IV
Protection IP53 / IK08 IP67
Languages More than 27
Communication Interface USB
Battery Life Up to 13 Hours
Power Supply 9.6V NiMH rechargeable battery or external mains charger
Dimensions 240 x 180 x 55mm  270 x 250 x 180mm
Weight 1.9kg 3.7kg
